Table 9: Keys function on the warning status
screens
Key Function
Down Shows the previous event. The display
does not show the previous event if it is
the first.
Right Shows the next block of data
Left Shows the previous block of data
Esc Cancels the operation and returns to
the main screen
Enter Stops and restarts the device label or
zone label swap
Note: When you stop the device
label or zone label swap, the dis-
play shows the @ character in the
upper-left corner.

Delay-to-alarm status

The delay-to-alarm status indicates that an input
point or detector has exceeded its alarm threshold.
The control panel does not generate an alarm until
the preset delay-to-alarm time ends. If a second
input point, such as a detector in the same software
zone, detects alarm conditions during the delay-to-
alarm state, and the double knock (DK) option has
been programmed for that zone, the control panel
generates an instant alarm.
The control panel generates an instant alarm if it
detects alarm conditions during the night mode,
or if you initiate an alarm from a call point. When
the control panel is in alarm status, it bypasses the
delay-to-alarm.

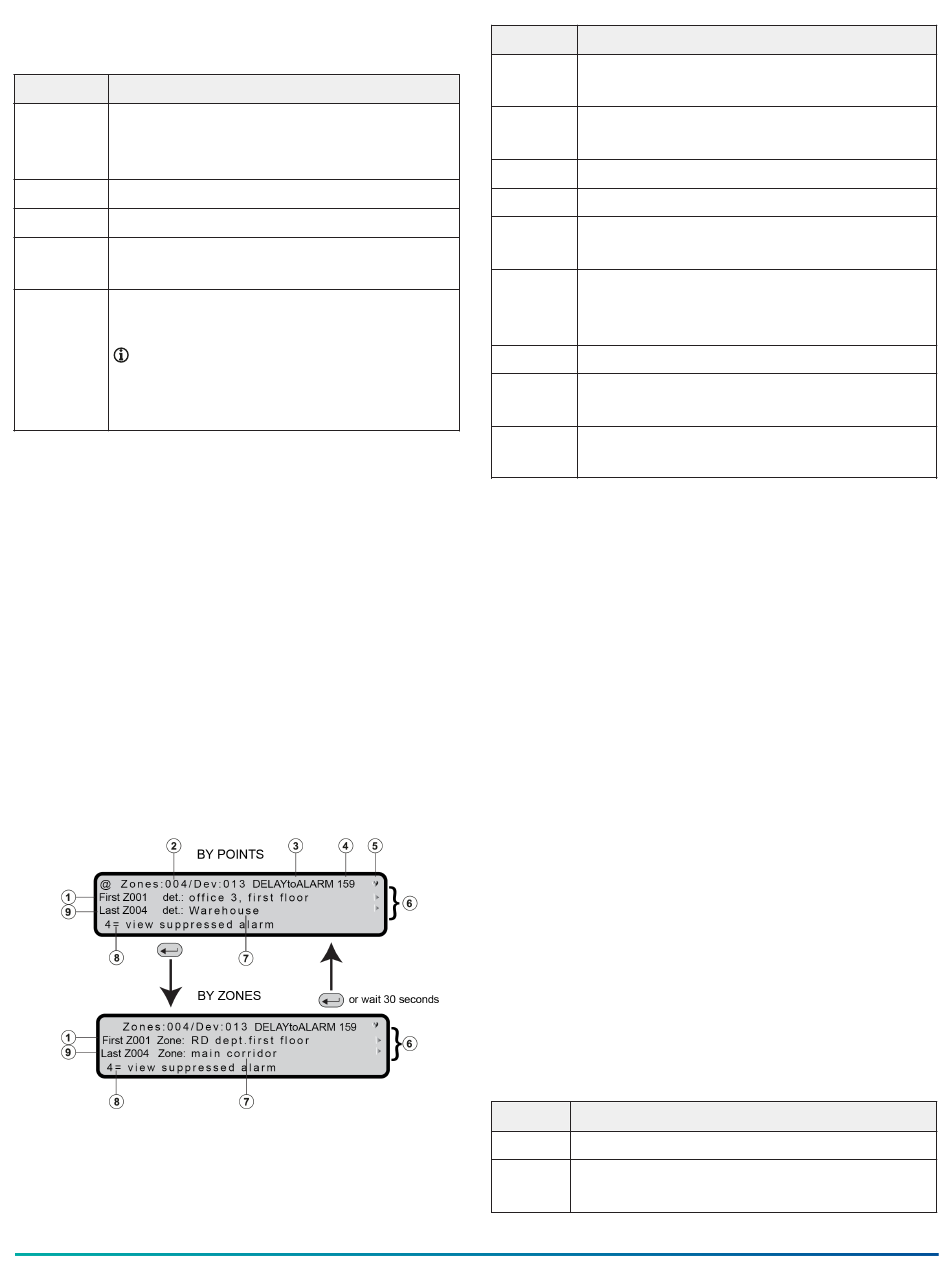

Figure 7: Delay-to-alarm screens
Callout Description
1 First zone or device into delay-to-alarm
status
2 Number of zones and devices in delay-
to-alarm status (flashing)
3 Control panel status
4 Seconds to alarm
5 If flashing, the control panel is operating
normally
6 The arrow symbols indicate the presence
of further information such as point or
zone coordinate, cause, and time
7 Point or zone label
8 To view further zones in delay-to-alarm
status, press the 4 key
9 Last zone or device in delay-to-alarm
status
You can view the information related to the delay-
to-alarm status in point view mode and in zone view
mode.
The point related to the first zone in delay-to-alarm
status is the first point in the zone that becomes
active. For all other zones in delay-to-alarm status,
the related point is the last that becomes active. This
information is updated in real time.
The first point in the delay-to-alarm field contains
the information about the first device that becomes
active. Irrespective of what zone it belongs to, the
last point in the delay-to-alarm field contains the
information about the last activated point.
The following items signal the delay-to-alarm status:
• Control panel display
• LED (1-8) relative zone in delay-to-alarm status
flashing
• Intermittent audible signal on the control panel
buzzer
• Delay-to-alarm output points
During the delay-to-alarm status, you can silence,
investigate, or reset the system, and view the event
log.
Table 10: Keys function on the delay-to-alarm
status screens
Key Function
1 Displays the zones status screen
2 Displays the status screen of the first
point in delay-to-alarm status
FC501 Addressable Fire Control Panels User Manual 11
