1 Key - View loop information
Use the 1 key to view the loop information. See
Figure 16.

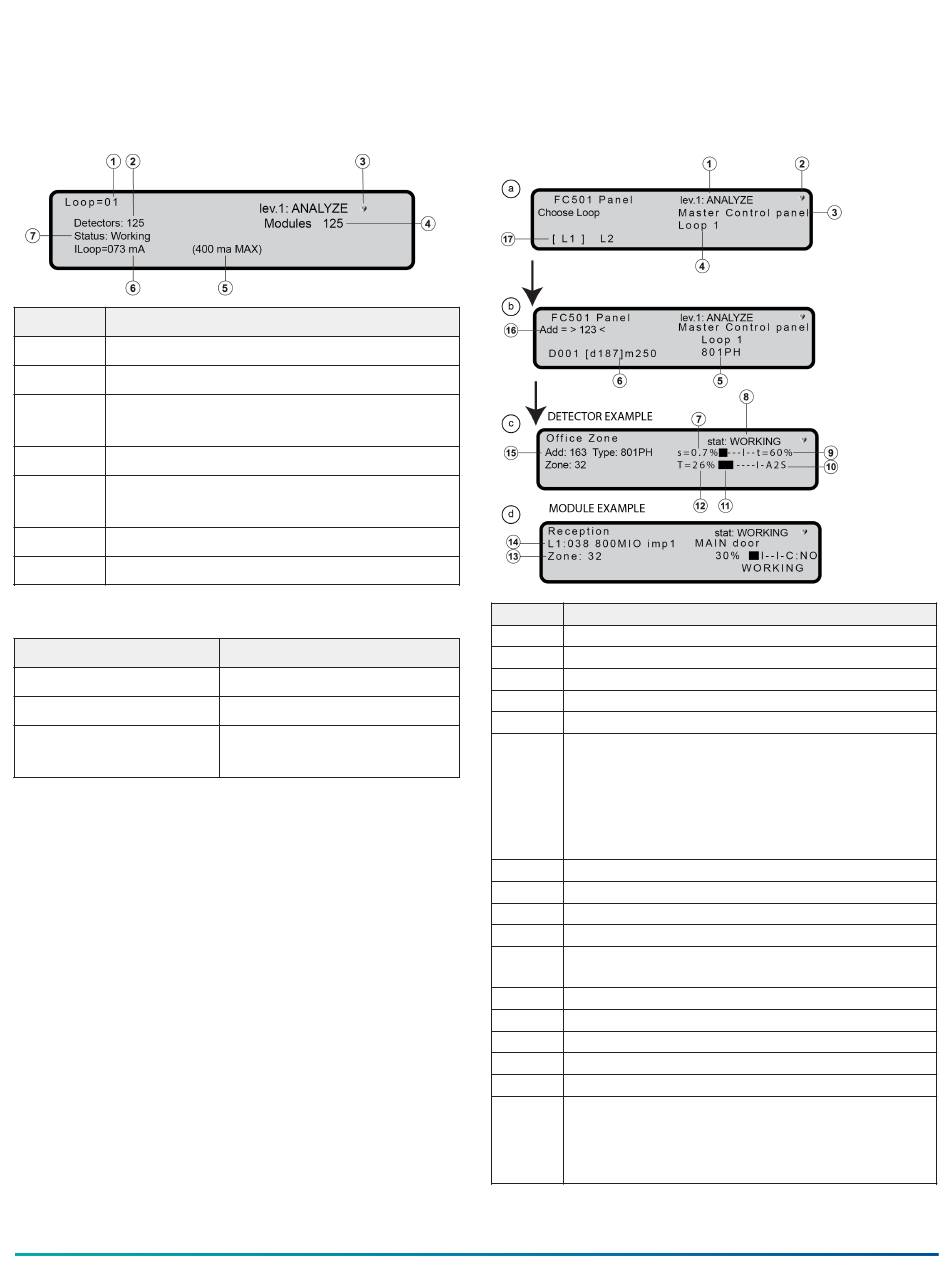

Figure 16: Viewing loop information
Callout Description
1 Loop number
2 Number of detectors on the loop
3 If flashing, the control panel is
operating normally
4 Number of modules on the loop
5 Maximum current that you can draw
from the loops
6 Total current drawn by the loops
7 Loop status: Working, Fault, or Disabled
Table 15: Keys function to view loop information
Key
Up
Down
Esc
When you select a loop, the LCD shows the loop
information. See Figure
18 FC501 Addressable Fire Control Panels User Manual
Function
Selects the next loop
Selects the previous loop
Returns to the previous
screen
16.
2 Key - View devices information
Use the 2 key to view the loop device information.
See Figure 17.
Figure 17: Viewing device information
Callout Description
1 Access level and menu name
2 If flashing, the control panel is operating normally
3 Control panel label
4 Selected loop
5 Selected device type
6 List of loop's devices:
• D001: Detector with address 001
• [d187]: Selected device
• m250: Module with address 250
To select the previous device, press the Left key.
To select the next device, press the Right key.
7 Detector channels information
8 Device status
9 Threshold
10 Function mode
11 Pattern of the current value and threshold if
applicable
12 Measurements of the detector
13 Assigned zone
14 Point coordinate
15 Address and type of device
16 Invalid address
17 Loop list. The square brackets indicates the selected
loop.
To select the previous loop, press the Left key.
To select the next loop, press the Right key.
