Callout Description
5 Press the SILENCE/RESOUND
SOUNDERS key to switch on the
modules LEDs and beacons and to
reactivate the sounders, again.
6 Press Esc to return to the main screen.
Analyze
Use the analyze functions to view the information
related to the control panel system. You can access
the analyze functions though the analyze menu and
through the options view log and view lists on the
main screen. To access the analyze functions, you do
not need a password.
menu.

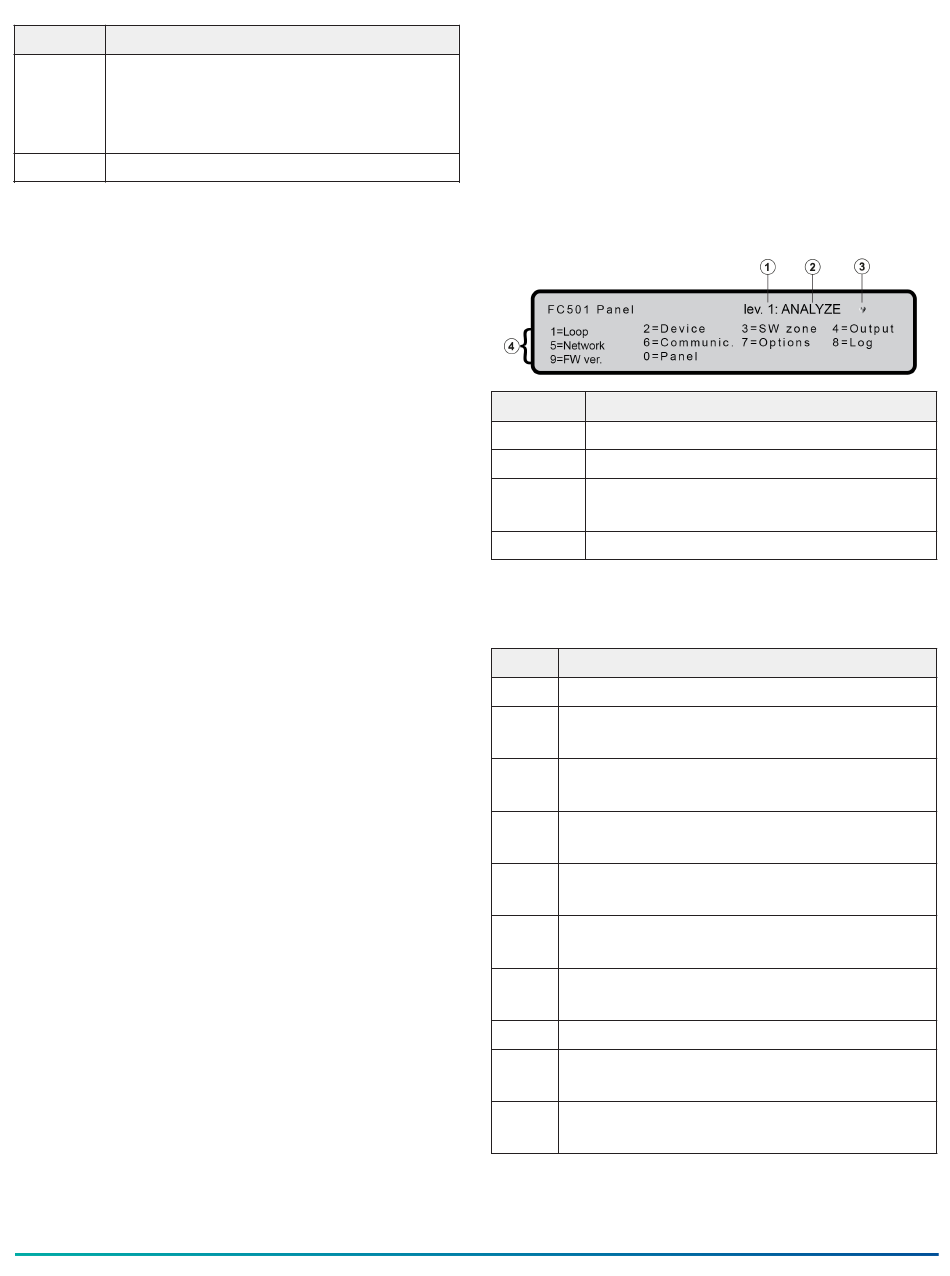

Figure 15: Analyze menu
Callout Description
1 Access level
2 Menu name
3 If flashing, the control panel is
operating normally
4 Options
Use the analyze menu to view the information listed
in Table 14.
Table 14: Keys function on the analyze menu
Key Function
1 Loop: Displays information on the loops
2 Device: Displays information on the loop'
devices
3 SW zone: Displays information on the
software zones
4 Output: Displays information on the
control panel outputs
5 Network: Displays information on the
RS485 network's devices
6 Communic.: Displays information on the
communicators
7 Options: Displays information on the
system options
8 Log: Displays the event log
9 FW ver.: Displays information on the
control panel firmware versions
0 Panel: Displays general information on the
control panel
To return to the main screen, press Esc.
FC501 Addressable Fire Control Panels User Manual
Figure 15 shows the analyze
