2 Key – Disable loop devices
To disable and enable loop devices, press the 2 key
on the Disable menu. See

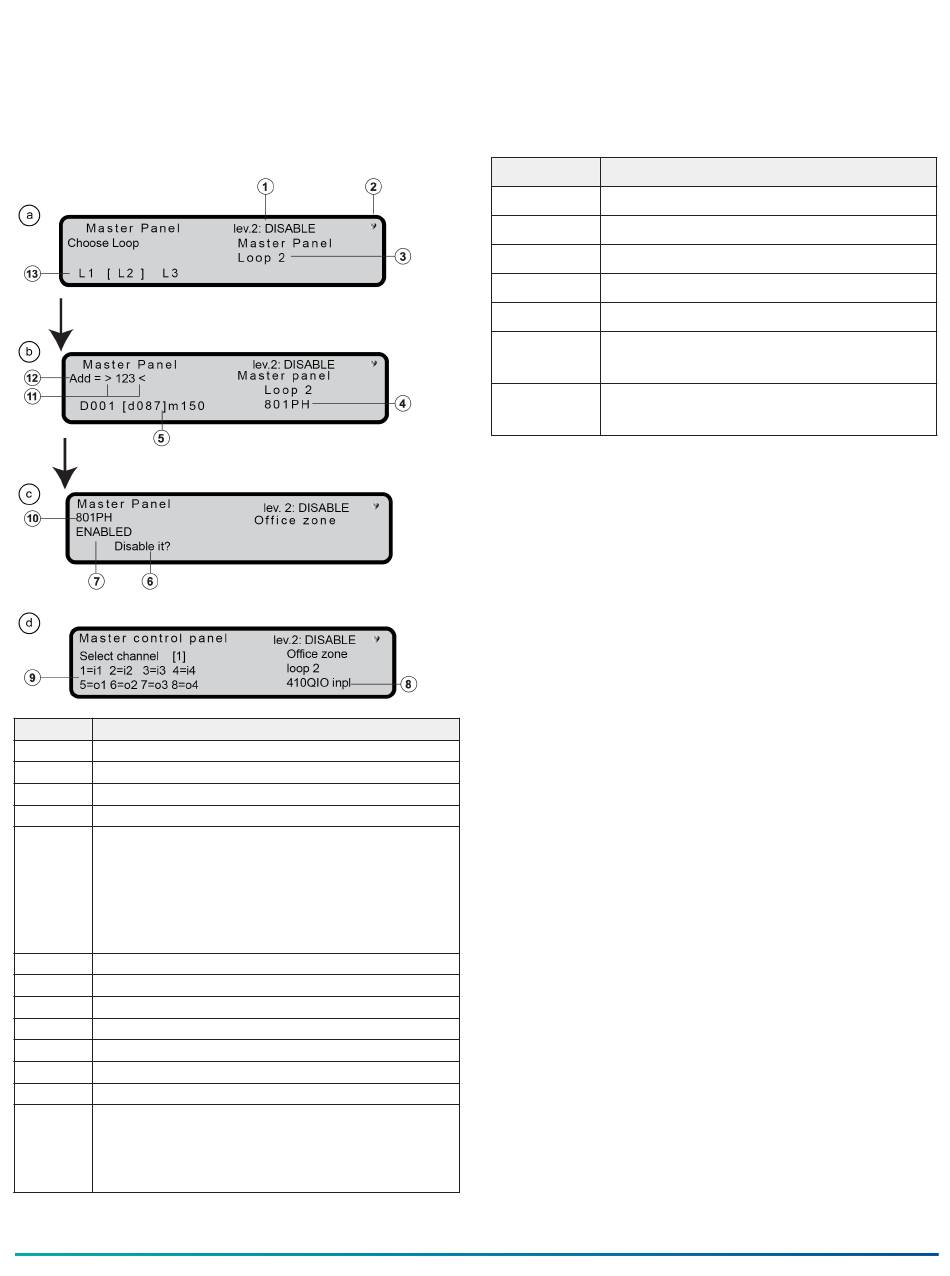

Figure 35: Disable and enable loop devices
screens
Callout Description
1 Access level and menu name
2 If flashing, the control panel is operating normally
3 Selected loop
4 Selected device type
5 List of loop's devices:
• D001: Detector with address 001
• [d087]: Selected device
• m150: Module with address 150
To select the previous device, press the Left key.
To select the next device, press the Right key.
6 Enable or disable request
7 Current status
8 Module type and channel ID
9 Module inputs and outputs
10 Device to enable or disable
11 Invalid address
12 Entered address
13 Loop list. The square brackets indicates the selected
loop.
To select the previous loop, press the Left key
To select the next loop, press the Right key.
30 FC501 Addressable Fire Control Panels User Manual
Figure 35.
Select the loop
To select the loop of the device you want to disable
or enable, use the keys in
Table 34: Keys function on the selecting loop
screen
Key Function
1 Selects loop 1
2 Selects loop 2
3 Selects loop 3
Right Selects the next loop
Left Selects the previous loop
Esc Cancels the operation and returns to
the previous screen
Enter Confirms and displays the screen for
selecting the device. See
Table 34.
Figure 35 b.
