Select the network device

To select a network device, use the keys in
Table 42: Keys function on the selecting network
device screen
Key Function
Alphanumeric Enters the network device number:
keys • Repeater, enter 1 to 4
• MIF, enter 1 to 4
If you enter an invalid number, the
display shows the following error
message:
WRONG VALUE
PLEASE ENTER NEW PARAMETER
After five seconds, the display
shows the screen for network
device selection again.
Up and Down Scrolls the following network
cursor keys items:
• Repeater
• MFI
• RS485NET
Esc Cancels the operation and returns
to the previous screen
Enter Confirms and displays the next
screen
Disable or enable the network device
The display shows the current status of the network
device.
To disable or enable the selected network device,
use the keys in Table
Table 43: Keys functions on the disable network
device screen
Key Function
Esc Cancels the operation and returns
to the previous screen
Enter Disables or enables the network
device. The panel resets and
then the display shows the main
screen.
6 Key - Disable communicator
modules
To disable and enable the communicator modules,
press the 6 key on the Disable menu. See
34 FC501 Addressable Fire Control Panels User Manual
43.

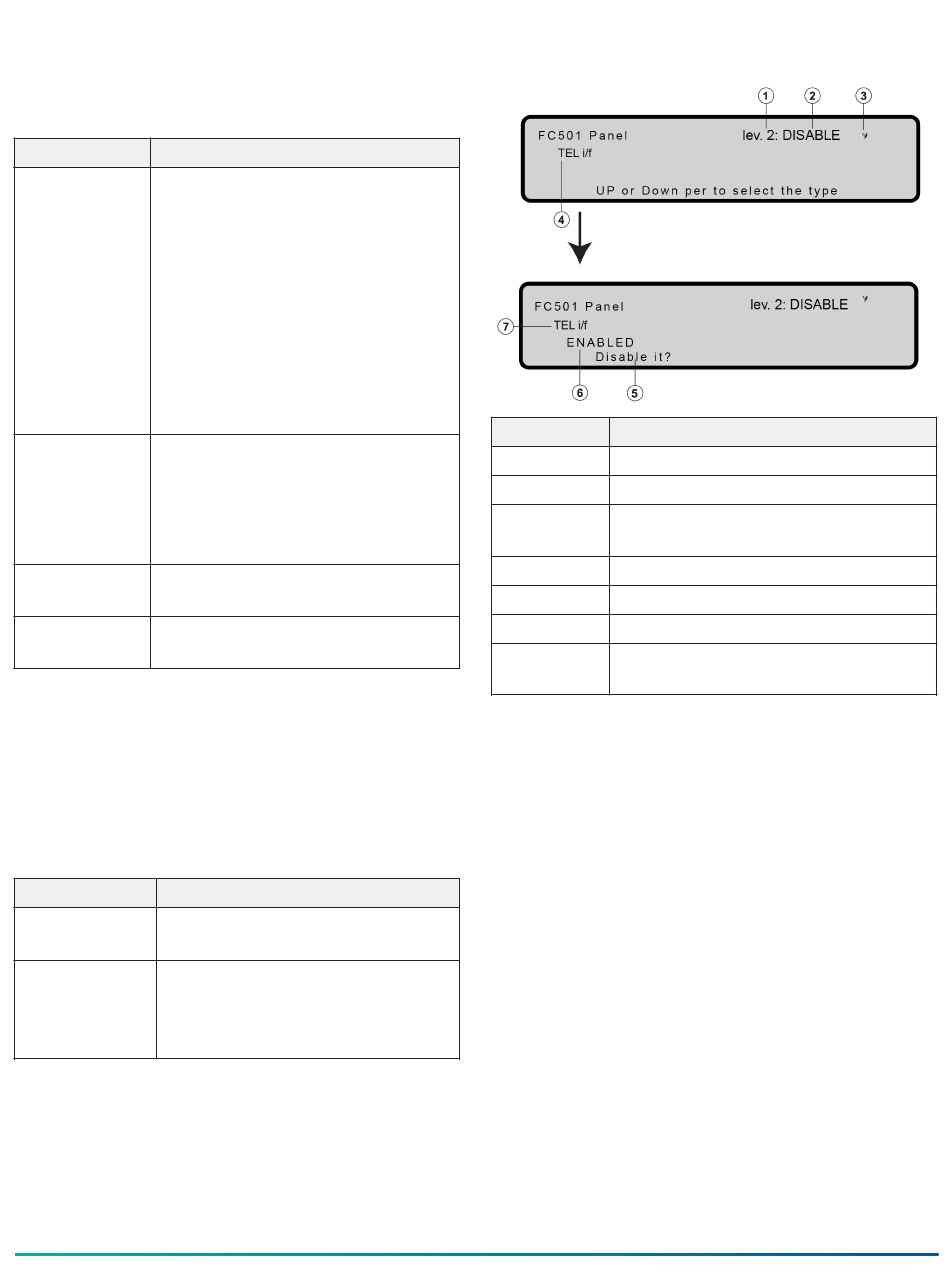

Figure
Figure 39: Disabling or enabling communicator
modules screens
Table 42.
Callout
1
2
3
4
5
6
7
39.
Description
Access level
Menu name
If flashing, the control panel is
operating normally
Communicator module
Enable or disable request
Current status
Communicator module to disable or
enable
