Menu Screen - Johnson Controls FireClass FC501 Series User Manual

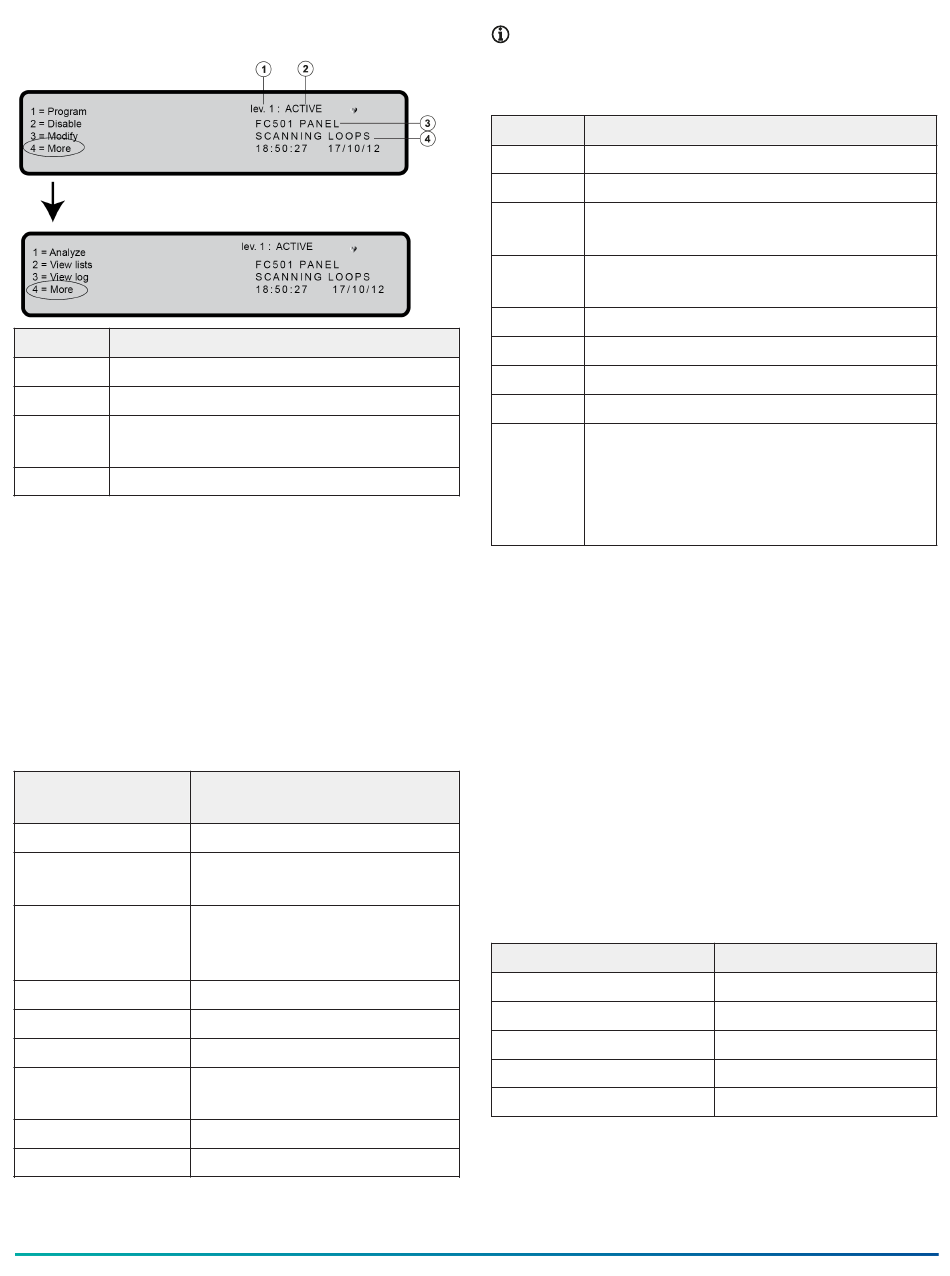

Figure 4: The main screens
Callout Description
1 Access level
2 Control panel status
3 Control panel name (you can modify
this)
4 Panel activity
The access level field shows the current access level
of the panel. Ten seconds before leaving the present
access level, this field starts to flash.
The control panel status field displays the current
panel status. The panel's default state is active.
When the control panel works correctly, the display
shows a flashing heart.
The panel activity field displays the current activity
of the panel. For more information, see
Table 6: Panel activity field values
Panel activity
message
RESETTING
LOC. PROG
REM.ACCESS
SYS. INIT
SYS. VER
CLEAR LOG
WAITS
———
SCANNING LOOPS
Table
Description
Panel is resetting
Panel is being programmed
by a local access
Panel is remotely accessed
(PC through serial port, USB
or IP)
Panel is initializing
Panel is verifying its system
Panel is clearing the event log
Panel is waiting to be
configured
No activity
Panel is in its normal activity
Note: The date and time field flashs until the
date and time is set.
Table 7: Keys function on the main screen
Key
1
2
3
4
Up
Down
Right
Left
Esc

Menu screen

You can access the program, analyze, disable, and
modify features of the panel through the menu
screens. For more information, see Analyze, Disable,
and Modify
Event driven screens
6.
When the system detects events, the event driven
screens activate. When an event activates, it
overrides the screen present on the display at that
time. An event driven screen can be overridden
by another event driven screen that has a higher
priority.
Table 8 contains the event driven screen priority
assignment.
Table 8: Event driven screen priority
Event driven screens
Alarm
Delay-to-Alarm
Fault
Warning
Walk Test
If a lower priority event screen is suppressed by a
highest priority event screen, the MORE INFO LED
switches on.
FC501 Addressable Fire Control Panels User Manual
Function
Moves to program or analyze mode
Moves to disable or view lists mode
Shows the view log or moves to modify
mode
Selects between the function groups
related to the keys 1, 2, and 3
Increases the brightness of LCD display
Decreases the brightness of LCD display
Increases the contrast of LCD display
Decreases the contrast of LCD display
Exits from the main screen to the front
screen or the event driven screen.
Pressing the key for more than three
seconds forces the panel to access level
1.
sections of this manual.
Priority
1 (highest)
2
3
4
5
