Changing The Aging Time; Figure 3-52. Displaying The Mac Dynamic Address Table - SMC Networks 8748L2 Management Manual

Web – Click Address Table, Dynamic Addresses. Specify the search type
(i.e., mark the Interface, MAC Address, or VLAN checkbox), select the
method of sorting the displayed addresses, and then click Query.

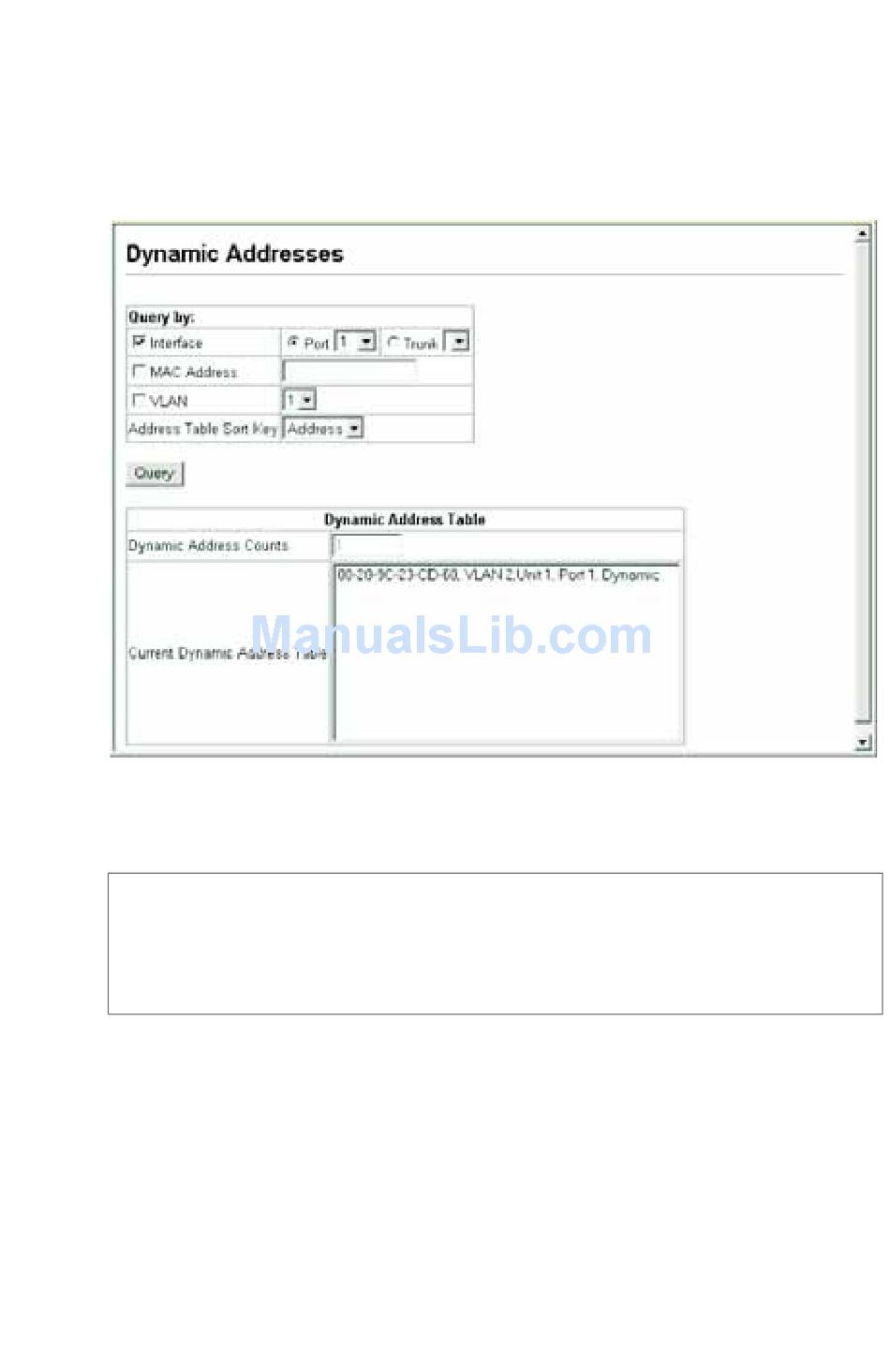

Figure 3-52. Displaying the MAC Dynamic Address Table

CLI – This example also displays the address table entries for port 1.
Console#show mac-address-table interface ethernet 1/1
Interface Mac Address
--------- ----------------- ---- -----------------
Eth 1/ 1 00-E0-29-94-34-DE
Eth 1/ 1 00-20-9C-23-CD-60
Console#

Changing the Aging Time

You can set the aging time for entries in the dynamic address table.
Command Attributes
• Aging Status – Enables/disables the function.
A
DDRESS
Vlan Type
1 Permanent
2 Learned
T S
ABLE ETTINGS
4-165
3-111
