Table 3-12. Mapping Dscp Priority; Figure 3-75. Mapping Ip Dscp Priority To Class Of Service Values - SMC Networks 8748L2 Management Manual

Table 3-12.
IP DSCP Value
0
8
10, 12, 14, 16
18, 20, 22, 24
26, 28, 30, 32, 34, 36
38, 40, 42
48
46, 56
Command Attributes
• DSCP Priority Table – Shows the DSCP Priority to CoS map.
• Class of Service Value – Maps a CoS value to the selected DSCP
Priority value. Note that "0" represents low priority and "7" represent
high priority.
Note: IP DSCP settings apply to all interfaces.
Web – Click Priority, IP DSCP Priority. Select an entry from the DSCP
table, enter a value in the Class of Service Value field, then click Apply.

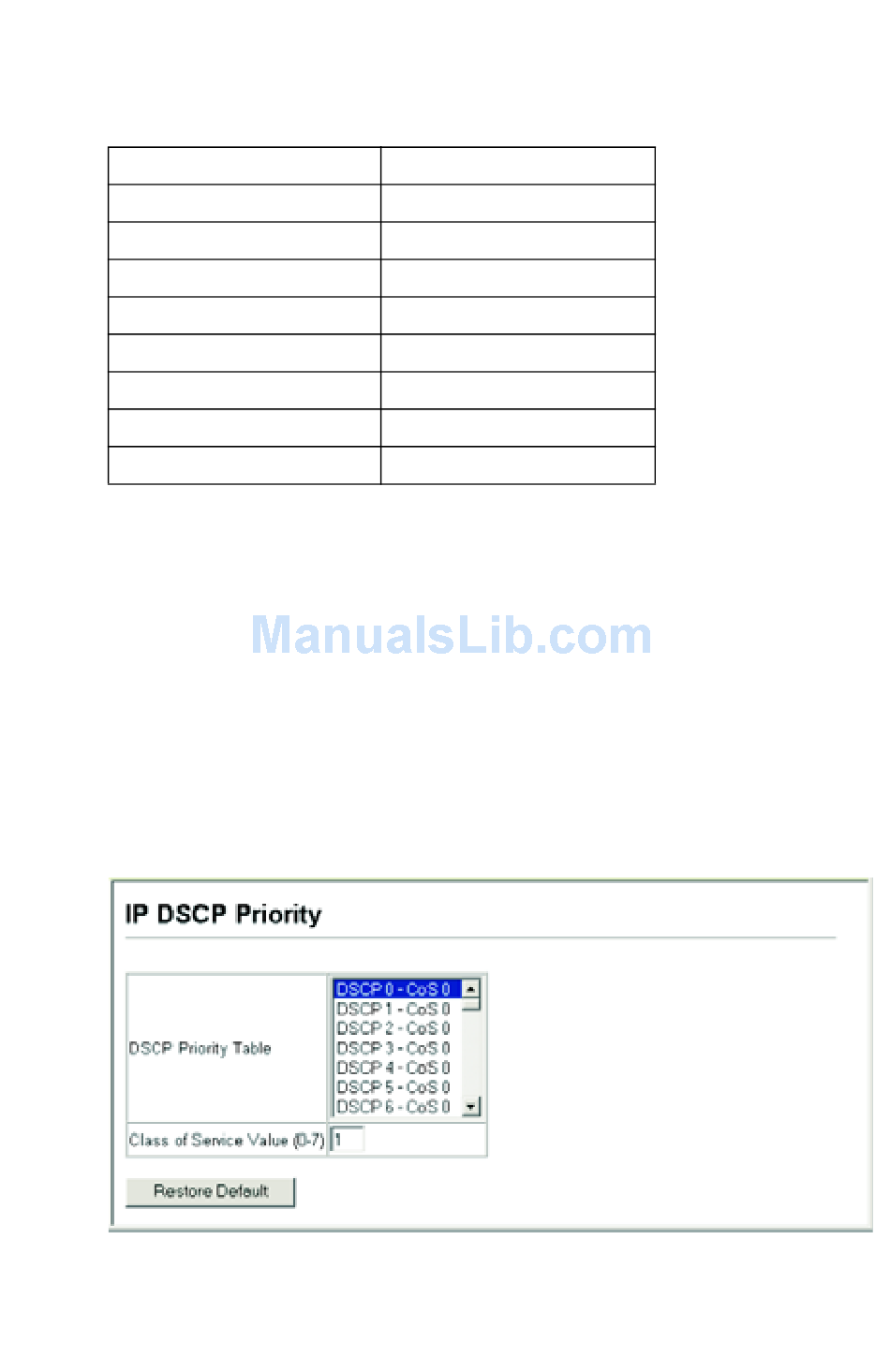

Figure 3-75. Mapping IP DSCP Priority to Class of Service Values

C
LASS OF
Mapping DSCP Priority
CoS Value
0
1
2
3
4
5
6
7
S C
ERVICE ONFIGURATION
