Configuring Private Vlans; Figure 3-65. Private Vlan Information - SMC Networks 8748L2 Management Manual

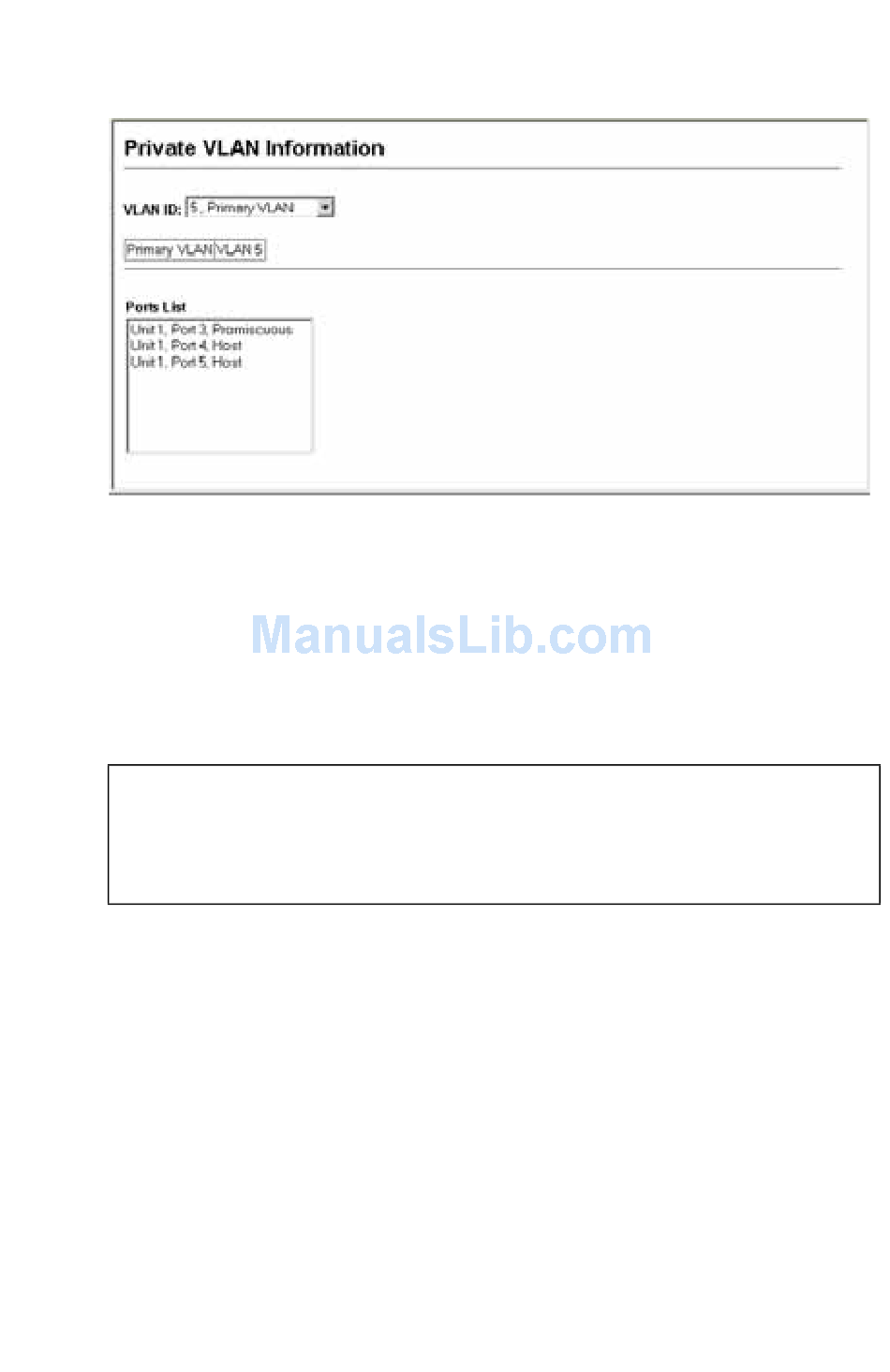

Figure 3-65. Private VLAN Information

CLI – This example shows the switch configured with primary VLAN 5
and secondary VLAN 6. Port 3 has been configured as a promiscuous port
and mapped to VLAN 5, while ports 4 and 5 have been configured as a
host ports and are associated with VLAN 6. This means that traffic for
port 4 and 5 can only pass through port 3.
Console#show vlan private-vlan
Primary Secondary
-------- -----------
--------------------------------------
5
5

Configuring Private VLANs

The Private VLAN Configuration page is used to create/remove primary,
community, or isolated VLANs.
Command Attributes
• VLAN ID – ID of configured VLAN (1-4094).
• Type – There are three types of private VLANs:
Type
----------
primary
6 community
VLAN C
Interfaces
Eth1/ 3
Eth1/ 4 Eth1/ 5
