• Speed Duplex Status – Shows the current speed and duplex mode.
(Auto, or fixed choice)
• Flow Control Status – Indicates the type of flow control currently in
use. (IEEE 802.3x, Back-Pressure or None)
• Autonegotiation – Shows if auto-negotiation is enabled or disabled.
• Trunk Member
• Creation 2 – Shows if a trunk is manually configured or dynamically set
via LACP.
1: Port Information only.
2: Trunk Information only
Web – Click Port, Port Information or Trunk Information.
Field Attributes (CLI)
Basic information:
• Port type – Indicates the port type.
(1000BASE-T, 1000BASE-SX, 1000BASE-LX or 100BASE-FX)
• MAC address – The physical layer address for this port. (To access
this item on the web, see "Setting the Switch's IP Address" on
page 3-17.)
1 – Shows if port is a trunk member.

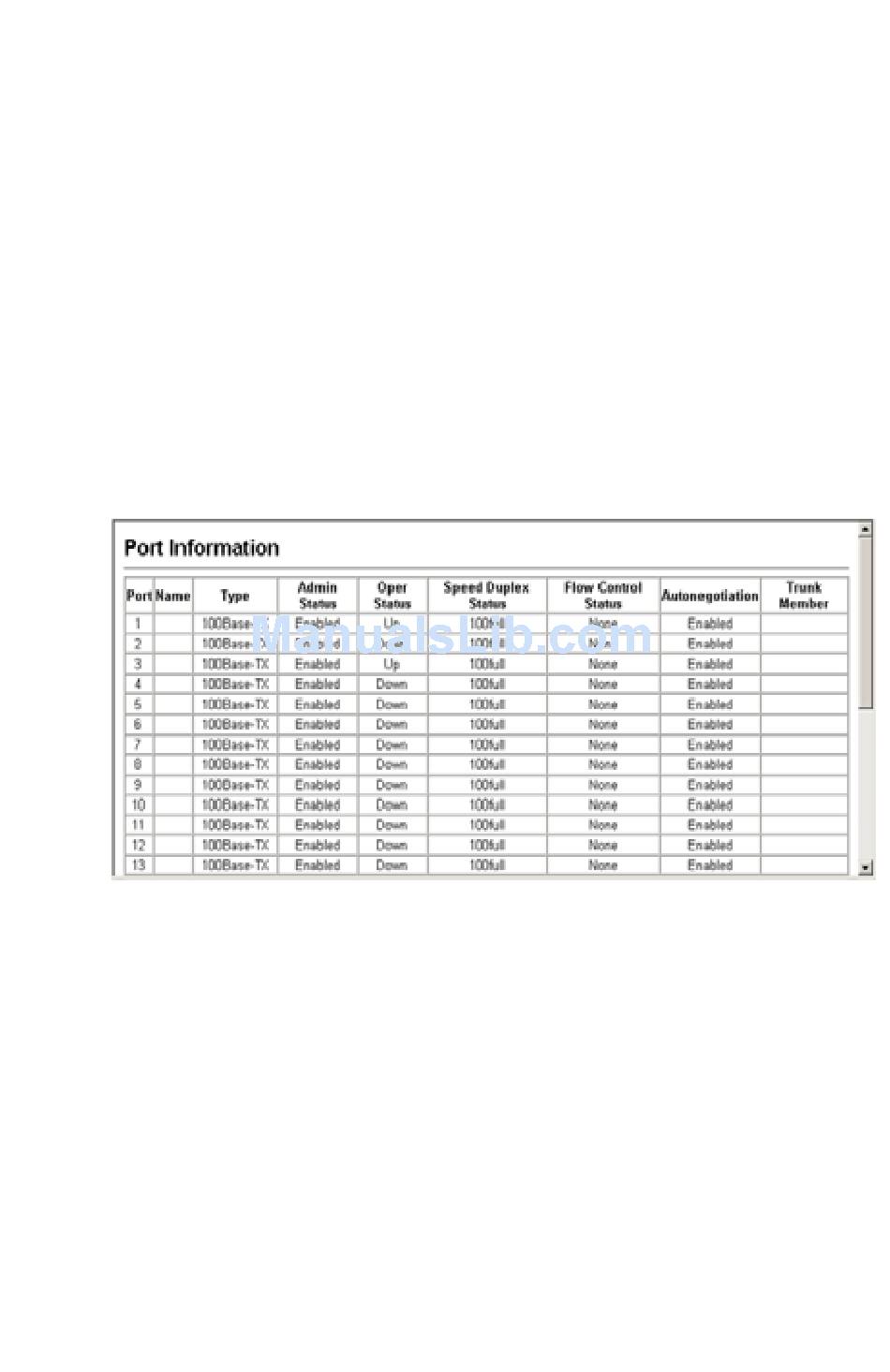

Figure 3-38. Port Status Information

P C
ORT ONFIGURATION
3-77
