7.2 Motor Brakes
Use the Brakes pane in the Digital I/Os screen to activate brake functionality and to monitor
the state of all brakes.
ServoStudio+ displays the actual number of brakes connected to the drive, as configured in
the drive firmware.
Motor brakes are controlled by dedicated outputs, as configured in the drive firmware.
1. In ServoStudio+, select Configuration > Digital I/Os.

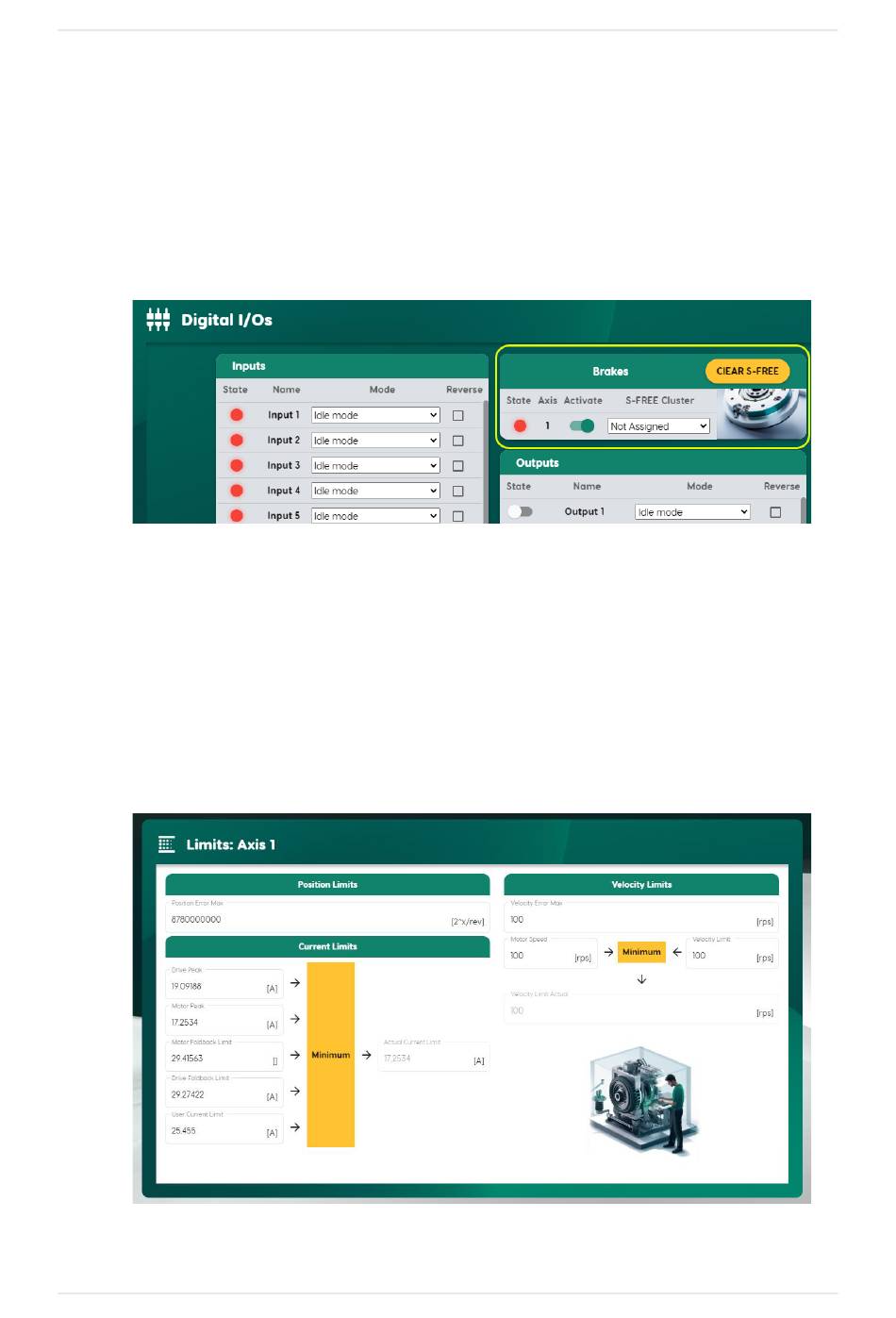

Figure 7-3. Brakes
2. In the Brakes pane, use the toggle button to activate the brake functionality for the axis.
7.3 Limits
Use the Limits screen to view and set parameters for position limits, velocity limits and your
application's current limit.
1. In ServoStudio+, select Configuration > Limits.
Figure 7-4. Limits
