Basic Drive Configuration
This chapter describes the main steps for configuring the drive system using the
ServoStudio+ interface. Depending on your specific drive model and configuration
requirements, you might need to configure additional parameters or use other features in
ServoStudio+.
7.1
Motors
Use the Motors screen to select a motor from ServoStudio+ databases. When you select the
motor family and model, ServoStudio+ sets the appropriate motor and feedback parameters.
ServoStudio+ contains two databases of motor settings.
The ServoStudio+ library contains a database of motors already defined and supported
by Servotronix. These motor settings cannot be modified by users.
The User library contains all other motors defined by users.
7.1.1
Load Motor Parameters
To load a set of motor parameters:
1.
In ServoStudio+, select Configuration > Motors.

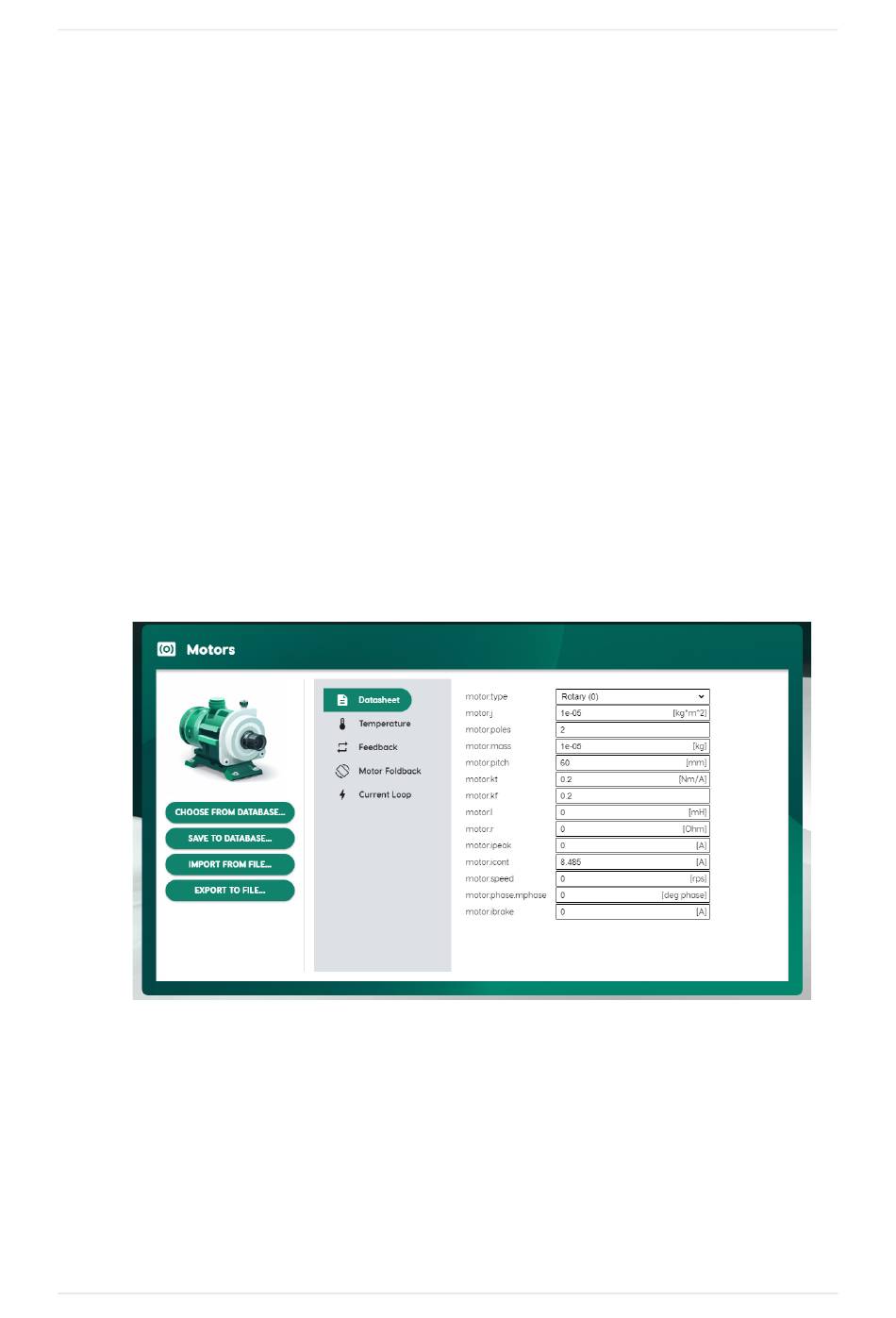

Figure 7-1.
Motors
Quick Start Guide
错误!使用"开始"选项卡将 Heading 1 应用于要在此处显示的文字。
35
