4.2 Mounting
4.2.1 Mounting the CD3E
Using the bracket on the back of the CD3E, mount the CD3E on a grounded conductive
metal panel. The panel must be sufficiently rigid.
For mounting dimensions, refer to section Mechanical Specifications.
4.2.2 Mounting Multiple Units
When multiple CD3E units are mounted side-by-side within a cabinet or enclosure, the
recommended minimum spacing between units is 20 mm. The recommended minimum top
and bottom clearance is 50 mm for all CD3E models.
It is important to maintain an ambient temperature within the enclosure that does not
exceed 45° C. If CD3E units are mounted on a backplane, also make sure the backplane
temperature does not exceed 45° C. It is recommended that a cooling fan be installed at the
bottom of the cabinet for best circulation.

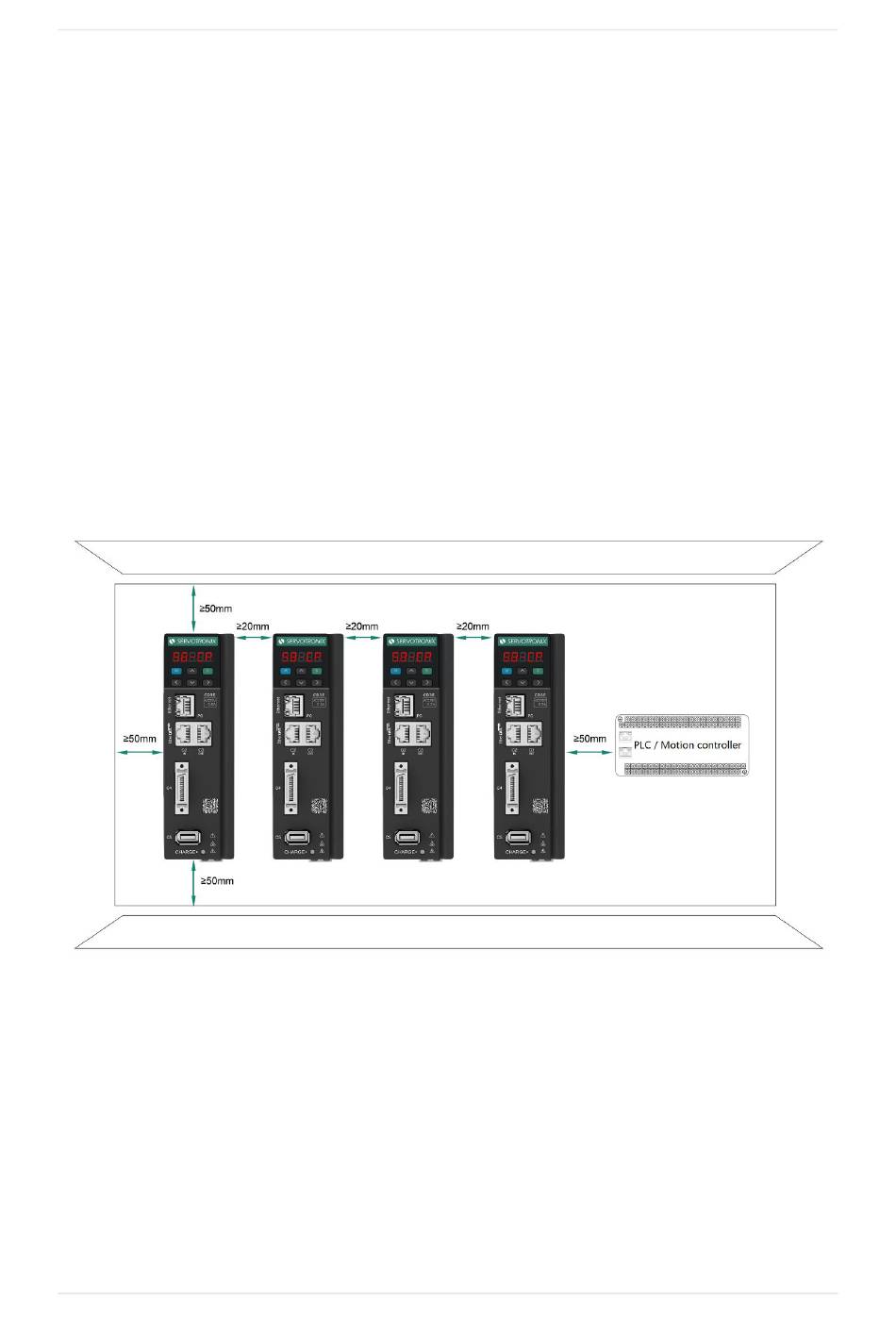

Figure 4-1. Mounting Multiple CD3E Units within Cabinet
