错误!使用"开始"选项卡将 Heading 1 应用于要在此处显示的文字。
5
Interfaces – Pinouts and Wiring
5.1
Power Interface
The power interface serves to connect the AC power supply to the CD3E.
The interface is also used to supply power to the motor phases.
In addition, it provides the connection to an external regenerative power resistor to dissipate
energy generated by the motor, typically during deceleration.
Make sure the main voltage rating matches the drive specification. Applying incorrect
voltage may cause drive failure.
Do not apply power until all hardware connections are complete.
Prevent inrush surge: Bus power (L1-L2): After switching off bus power, wait 1 minute
before switching on again.

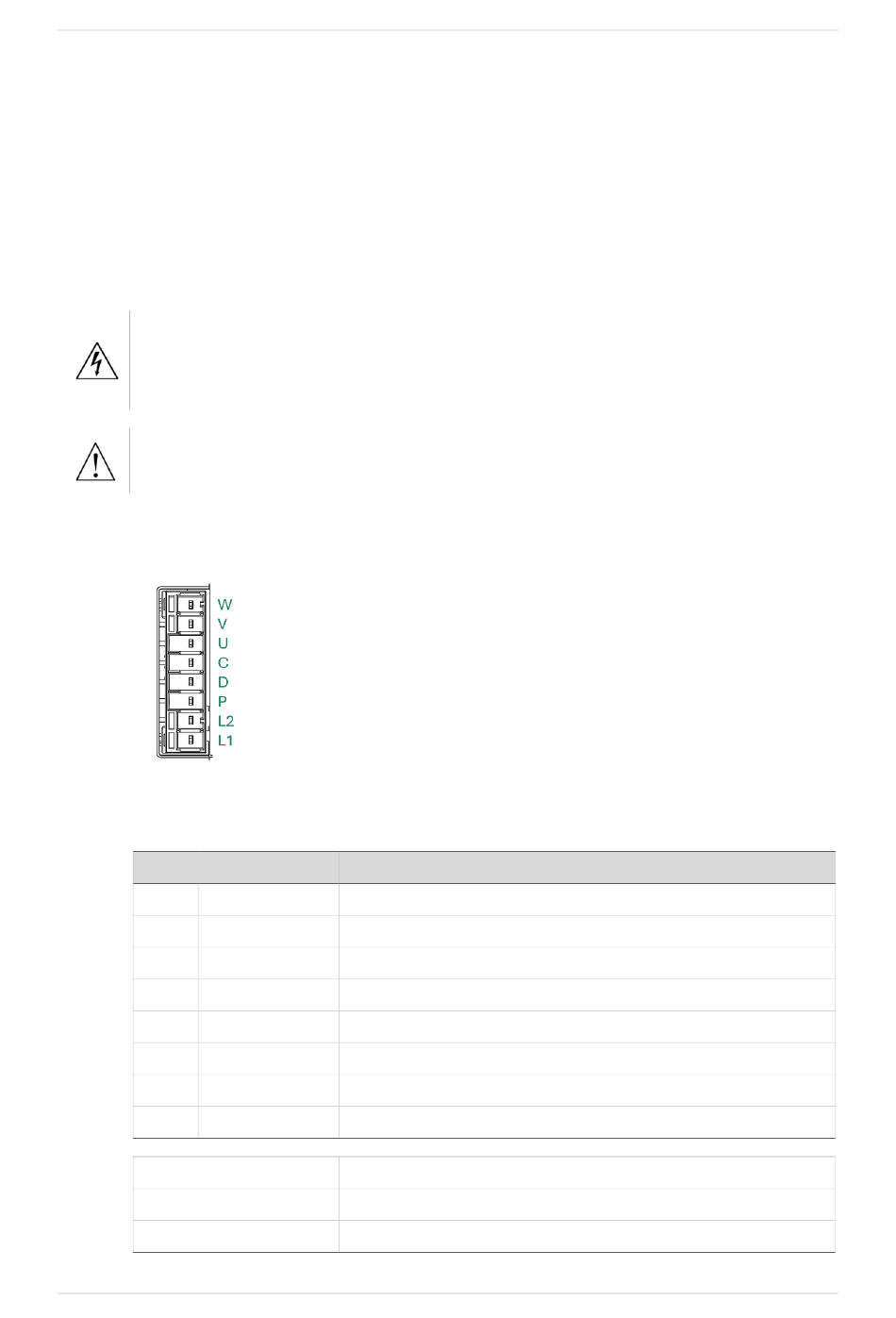

Power Pinout
Figure 4-1.
Power Interface
Table 5-1. Power Interface
Pin
Name
1
WOUT
2
VOUT
3
UOUT
4
C
5
D
6
P
7
L2
8
L1
Mating connector
Wiring
Strip length
22
Description
Motor phase W
Motor phase V
Motor phase U
Regenerative resister C
Regenerative resister D
Regenerative resister P
AC power supply – line L2
AC power supply – line L1
Sunchu: SC-T3005008SB0XT-45
14–12 AWG
7 mm
CD3E
Quick Start Guide
