5.3 PC–Ethernet Interface
For commissioning, the drive is connected to the PC through the Ethernet port.

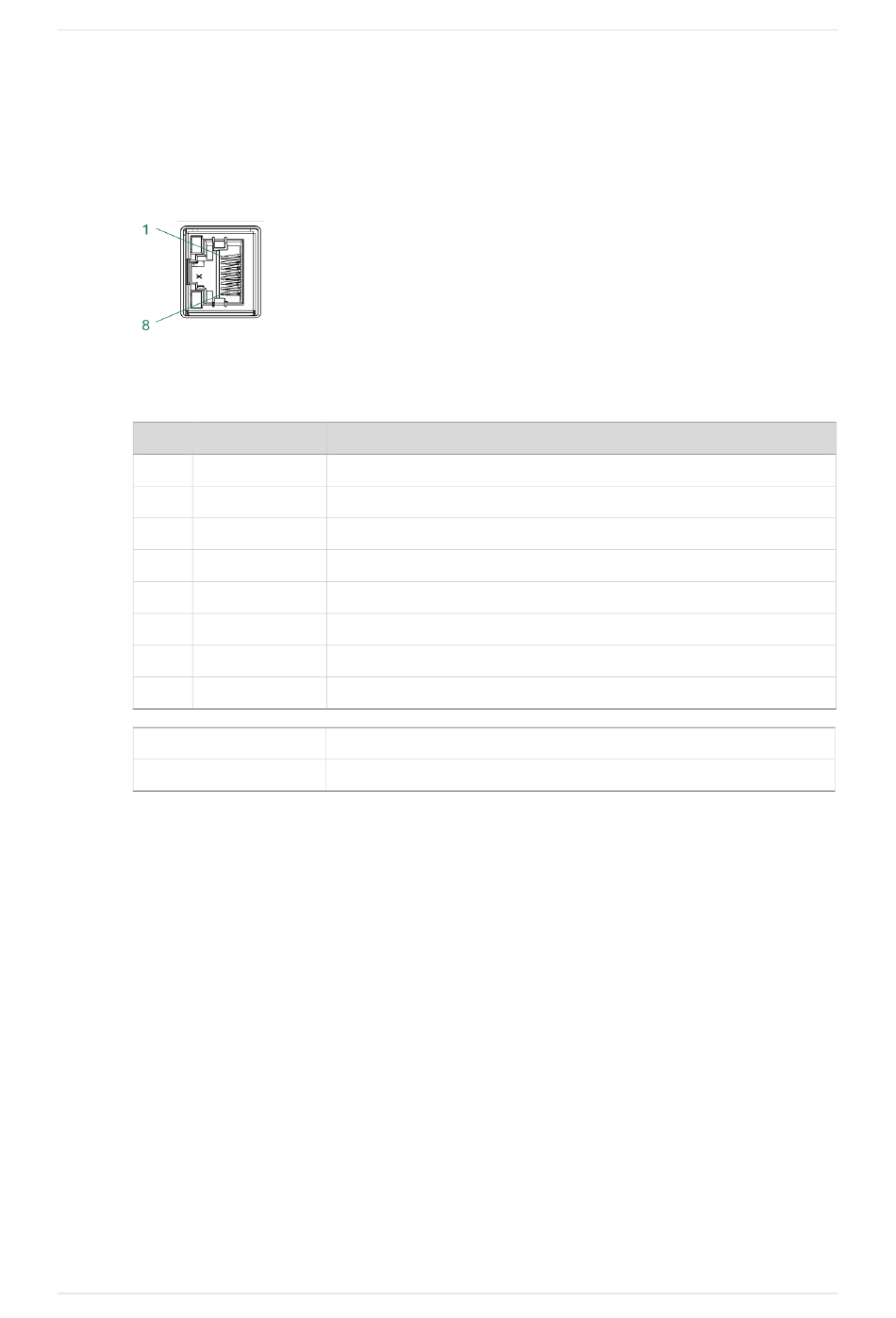

PC–Ethernet Pinout
Figure 4-6. Interface PC-Ethernet
Table 5-3. Interface PC-Ethernet
Pin Name
1 RXP
2 RXN
3 TXP
4 NC
5 NC
6 TXN
7 NC
8 NC
Mating connector
Cable
Quick Start Guide
错误!使用"开始"选项卡将 Heading 1 应用于要在此处显示的文字。
Description
Ethernet receive – differential positive
Ethernet receive – differential negative
Ethernet drive transmit – differential positive
not connected
not connected
Ethernet drive transmit – differential negative
not connected
not connected
Any CAT5e compatible shielded connector
CAT5e or higher, standard Ethernet straight cable
