Table 5-2. Interface C1
Pin # Name
1 24V+
2 24V_COM
3 EXT_STO_1
4 EXT_STO_COM
5 EXT_STO_2
6 EXT_STO_COM
7 NC
8 NC
Description
Mating connector

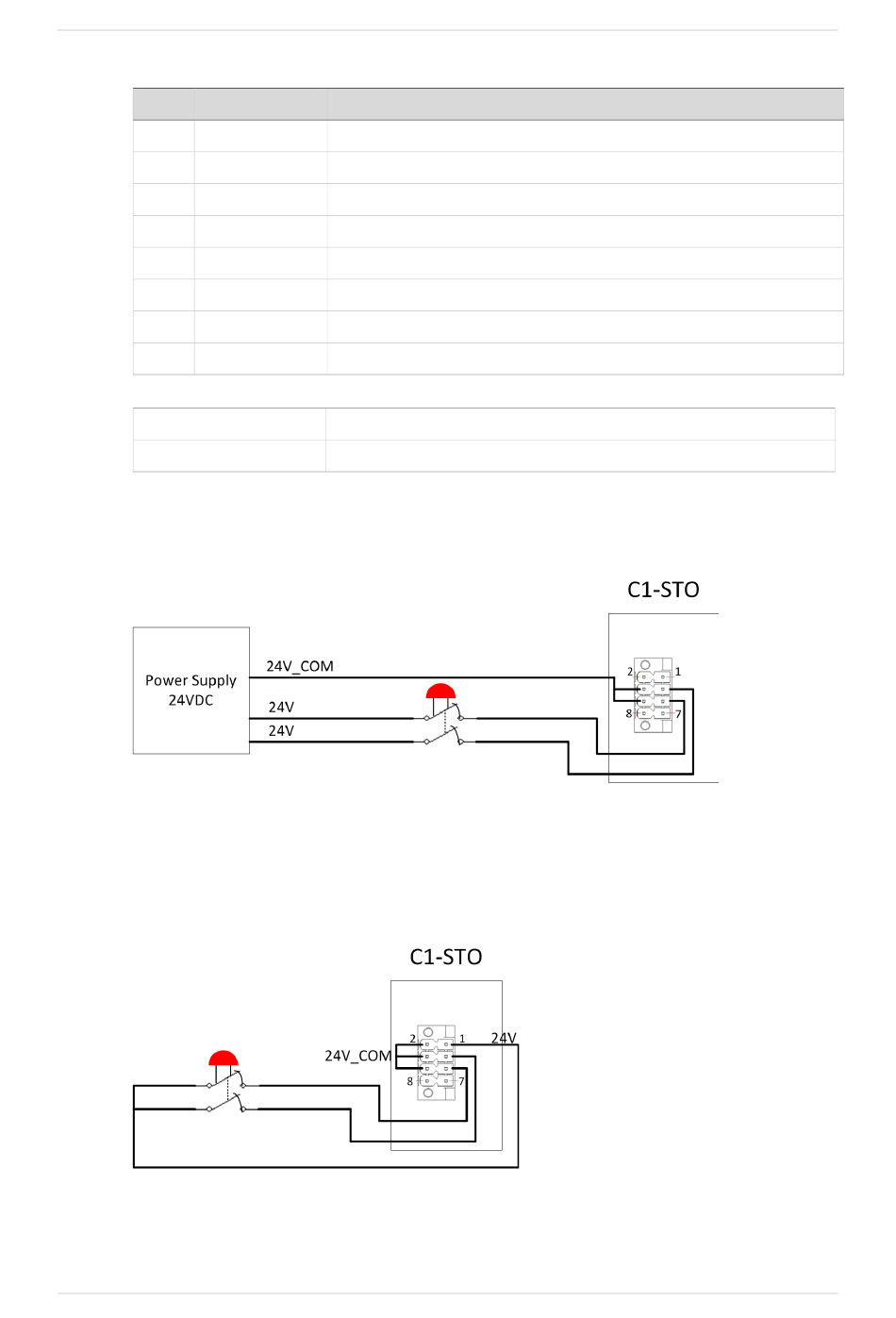

C1 Wiring – External Power Supply – STO
Figure 4-4.
C1 Wiring – Internal Power Supply – STO
Figure 4-5.
24
Description
24V power supply positive
24V power supply ground
STO1 switch input
STO switch circuit ground
STO2 switch input
STO switch circuit ground
not connected
not connected
Bypass plug
Weiling: Part number 12115000001401
