5.7 C6 Interface – Gantry
C6 Pinout

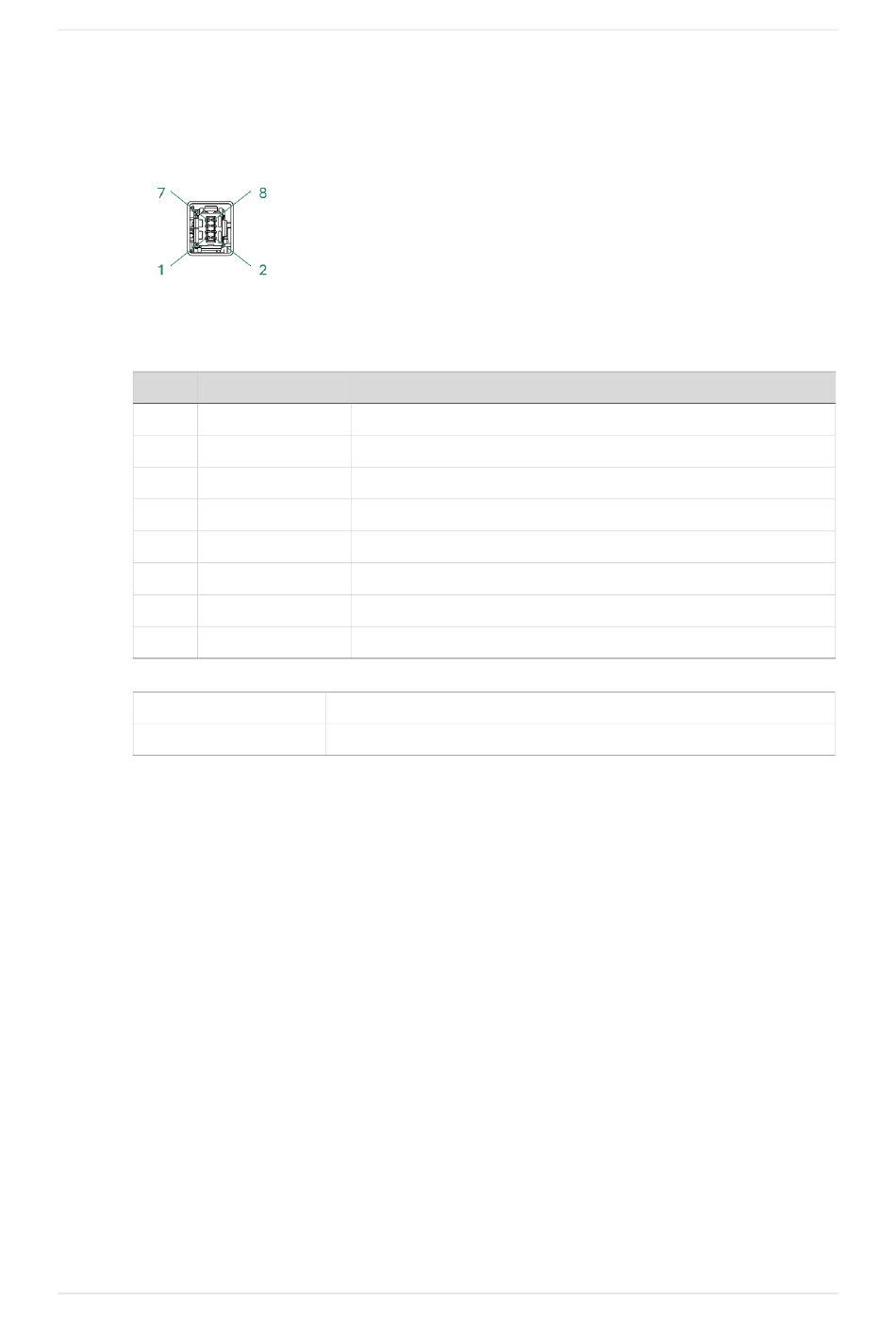

Figure 4-13. Interface C6
Table 5-7. Interface C6
Pin Name
1 FSI_TX0_CLK_P
2 FSI_TX0_CLK_N
3 FSI_TX0_D0_P
4 FSI_TX0_D0_N
5 FSI_RX1_CLK_P
6 FSI_RX1_CLK_N
7 FSI_RX1_D0_P
8 FSI_RX1_D0_N
Description
Mating connector
Quick Start Guide
错误!使用"开始"选项卡将 Heading 1 应用于要在此处显示的文字。
Description
Gantry drive transmit – Clock differential – Positive
Gantry drive transmit – Clock differential – Negative
Gantry drive transmit – Data differential – Positive
Gantry drive transmit – Data differential – Negative
Gantry receive – Clock differential – Positive
Gantry receive – Clock differential – Negative
Gantry receive – Data differential – Positive
Gantry receive – Data differential – Negative
8-pin Micro connector
WCON-Dongguan: 6362-08MDHSXMCBA1
