CD3E
6 ServoStudio+ Software
6.1 Software Installation
ServoStudio+ is compatible with Windows 10 and later operating systems. If you require
assistance with an older version of Windows, contact Servotronix Technical Support.
Download the ServoStudio+ software installation file from the Servotronix website, or
contact Technical Support.
Run the file.
6.2 Activation
1. Activate ServoStudio+ from the desktop icon or the Start menu.
2. ServoStudio+ opens to the home screen.

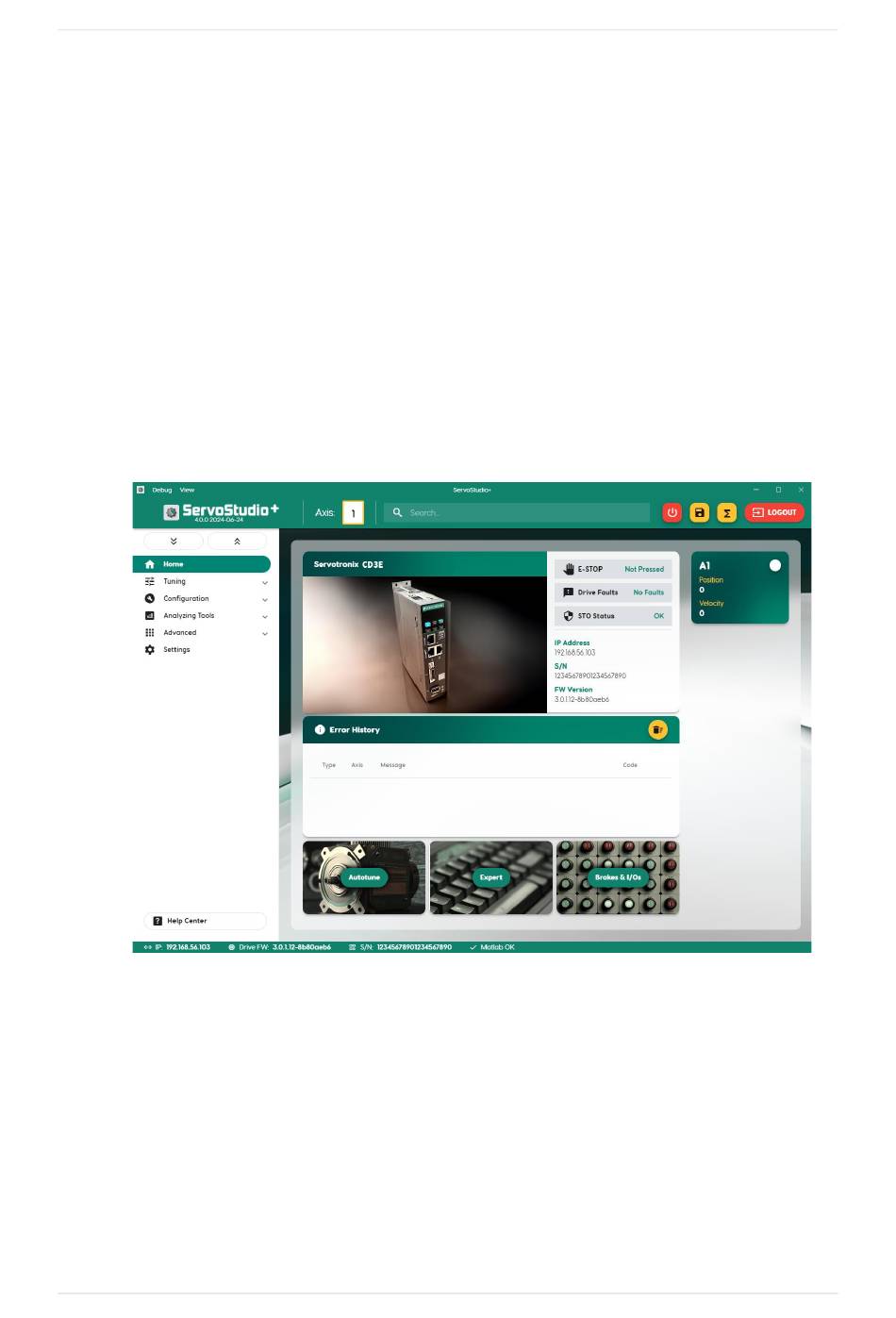

Figure 7-1. Home screen
The axis should be disabled during the basic configuration. If the axis icon is lit (green),
it indicates the axis is enabled.
To disable the axis, do either of the following:
Click the enable/disable button (the POWER icon) in the toolbar at the top of the
◼
ServoStudio+ window.
Click the axis number in the toolbar. Then use the axis toggle button in the axes
◼
pane.
Quick Start Guide
