Use of trigger inputs (extended licence only)
The Analog trigger inputs can be used for N.O. push buttons, switches, 0-10 V dimmers,
0-10 V control signals from external devices (such as building management systems), or
you can connect 50k Ohm linear potentiometers to the trigger inputs (see picture down
below).
The DiGidot C4 Trigger input has following pinout:
1. Analogue trigger 3
2. Analogue trigger 2
3. Analogue trigger 1
4. Ground
The optional DiGidot C4 Mini Jack cable has the following corresponding wires:
1. Red
2. White
3. Green
4. Black
C4 Manual
G d ot
DiGidot TRRS Trigger Cable(art.20903) needs to be ordered
seperately.

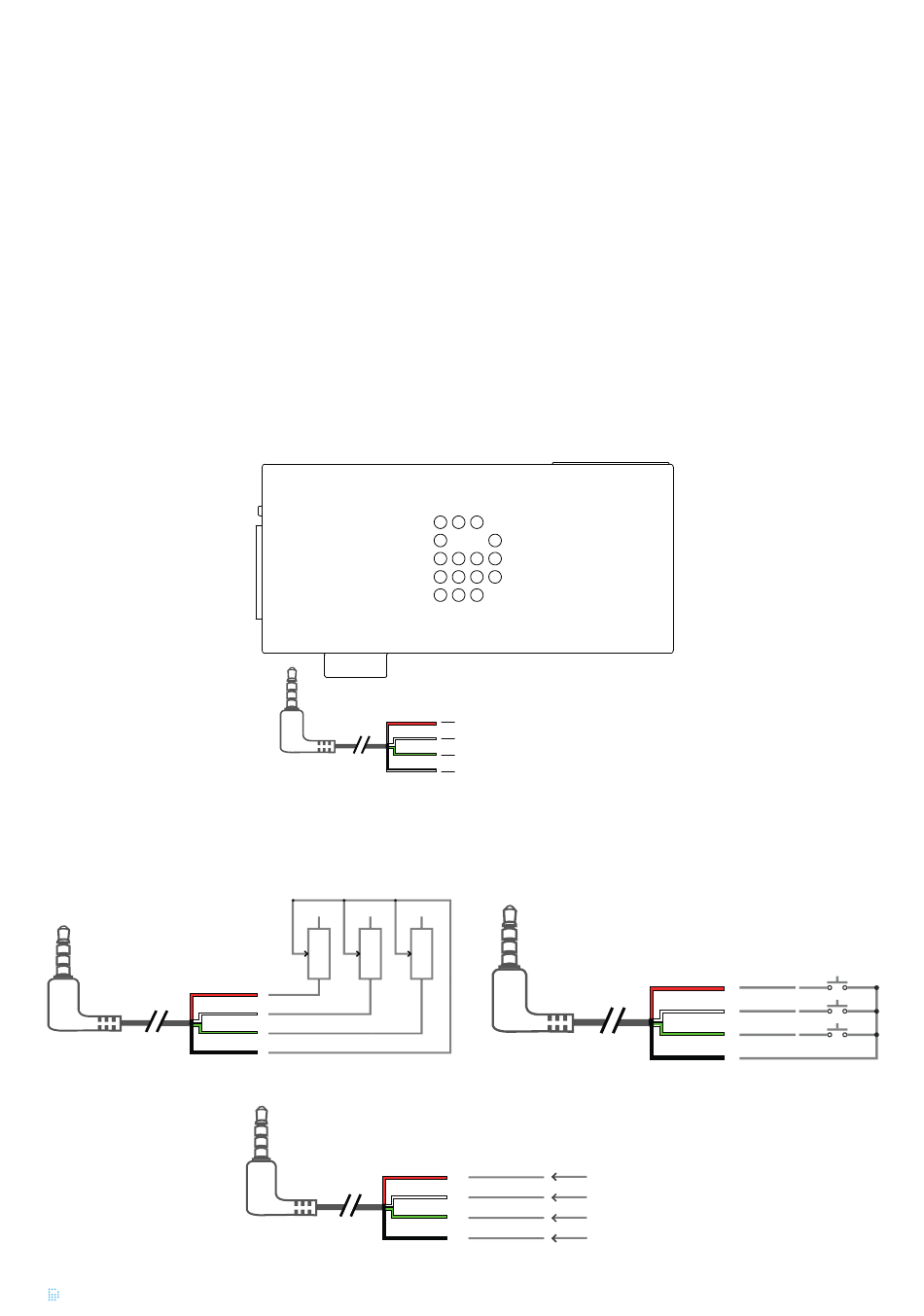

Potentiometers
50 50
50
kΩ kΩ
kΩ
Version 1.0
Analog 1/Tip
Analog 2/Ring 1
Analog 3/Ring 2
Ground
Active Control Voltage
+ 0-10 Vdc
+ 0-10 Vdc
+ 0-10 Vdc
GND
N.O. Switch / Dry Contacts
