DiGidot C4 Manual page 20

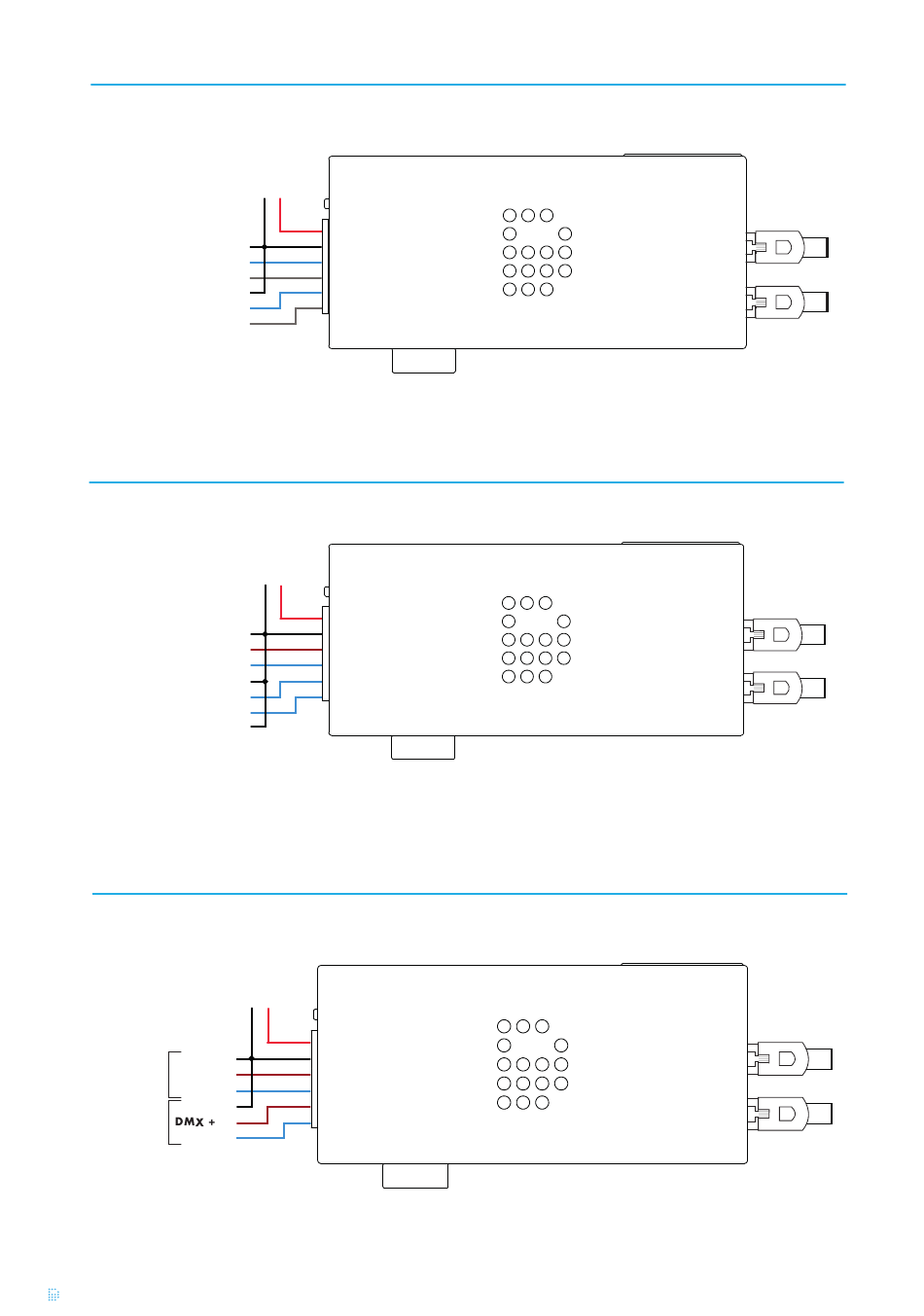

2 x SPI DATA + CLOCK OUT
Max. 6 universes | Cable max 2 m. (7 ft.)
5-24
GND 1
CLOCK 1
DATA 1
GND 2
CLOCK 2
DATA 2
This option shows two SPI Data + Clock signals. Please note that all grounds must be-
connected.
1 x DMX IN/OUT + 1 x SPI OUT
Max. 512 universes | Cable max 550 m. (1833 ft.)
5-24
DMX 1 GND
DMX 1 +
DMX 1 --
SPI GND
SPI DATA 3/SPI CLOCK 4
SPI DATA 4
SPI GND 4
This option shows a combined output of SPI and DMX in or out. Please note that the
SPI type (Data only or Data + Clock) determines how you need to connect the SPI
signal(s). A Data + Clock signal always requires two outputs of the C4.
2 x DMX IN/OUT
Max. 512 universes | Cable max 550 m. (1833 ft.)
5-24
GND
DMX
DMX +
Signal 1
DMX --
GND
DMX
Signal 2
DMX --
This option shows two DMX in- or outputs. Every DMX signal requires a connected
ground as indicated above.
C4 Manual
G d ot
V
DC
-- +
DC +
DC --
D1
D2
D3
D4
V
DC
-- +
DC +
DC --
D1
D2
D3
D4
V
DC
+
--
DC +
DC --
D1
D2
D3
D4
C4
C4
C4
Version 1.0
Ethernet
Ethernet
Ethernet
Ethernet
Ethernet
Ethernet
