DIN-rail mounting
For 35 mm DIN-rail mounting use the DiGidot DIN-rail clip, art. No. 20902 (not includ-
ed). Place the DIN-rail clip against the DIN-rail alignment marker on the DiGidot C4
housing and align the both mounting holes(see picture).
Install the clip with the included 3 x 12 mm screw. When the DIN-rail clip is secured
properly, you can install the device easily on a DIN-rail (see picture).
NOTE: Do not place devices directly next to each other, but leave at least 10 mm space
between units to allow for sufficient air circulation around the device.

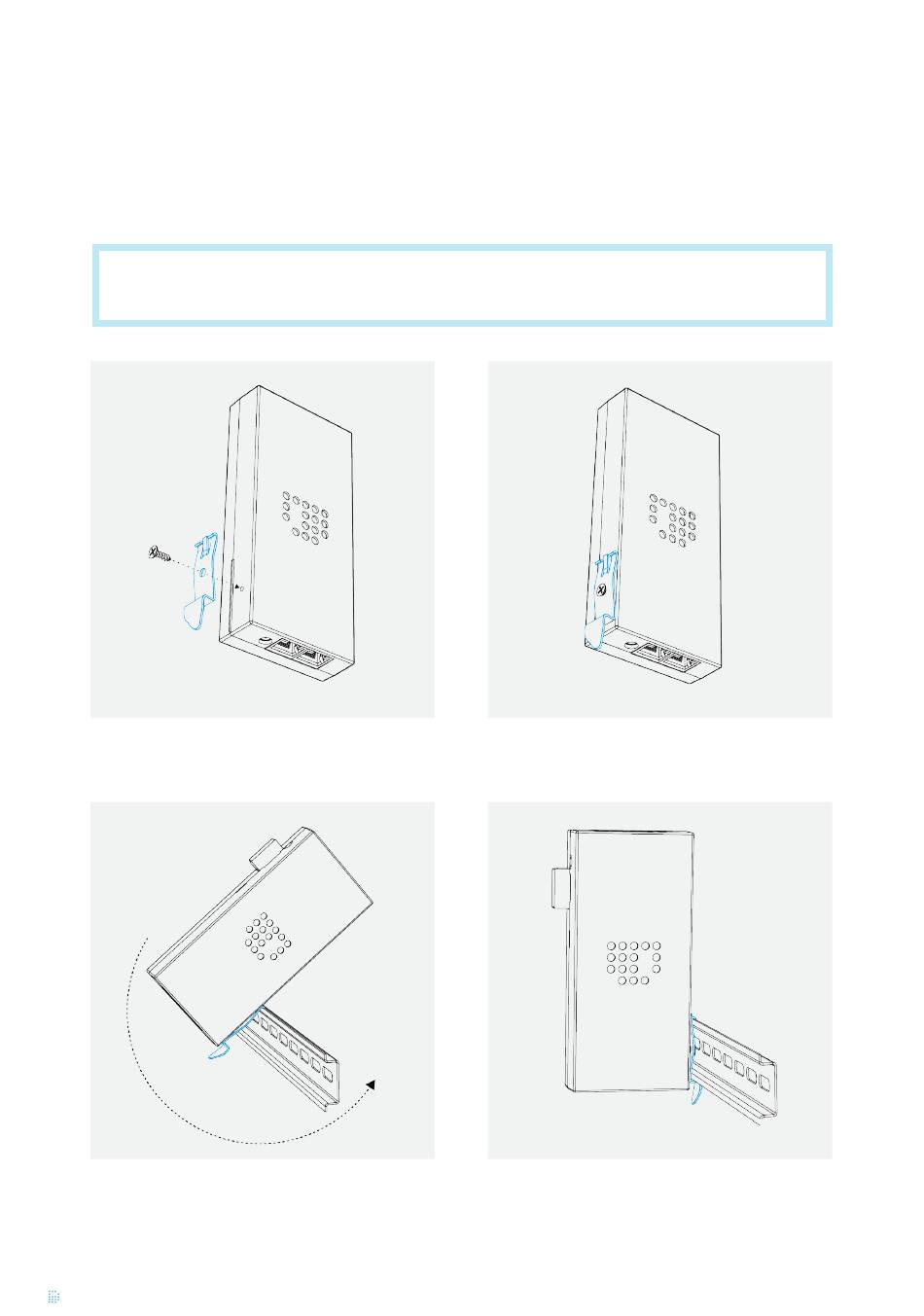

Picture 1:
Picture 3:
C4 Manual
d ot
G
Picture 2:
Picture 4:
