DiGidot C4 Manual page 21

Ethernet connection
The DiGidot C4 has a built-in two port ethernet switch that allows multiple units to be
daisy chained. Due to syncing, latency and performance reliability, we advise to keep
the amount of daisy chained devices to a minimum. Depending on the overall net-
work data load, the amount of daisy chainable devices might range from 3-8 devices.
In order to solve latency issues we recommend minimizing the amount of daisy
chained devices and adding Gigabit Ethernet Switches to the network.
1-2 DMX IN / 1-2 DMX OUT / SPI OUT
Max. 512 universes | Cable max 550 m. (1833 ft.) /
Max. 3 universes | Cable max 2 m. (7 ft.)
5-24
GND
DMX
DMX +
Signal 1
DMX --
GND
DMX
Signal 2
DMX --
5-24
GND
DMX
DMX +
Signal 1
DMX --
GND
DMX
Signal 2
DMX --
5-24
SPI DATA 1
GND 1
SPI DATA 2
GND 2
SPI DATA 3
GND 3
SPI DATA 4
GND 4

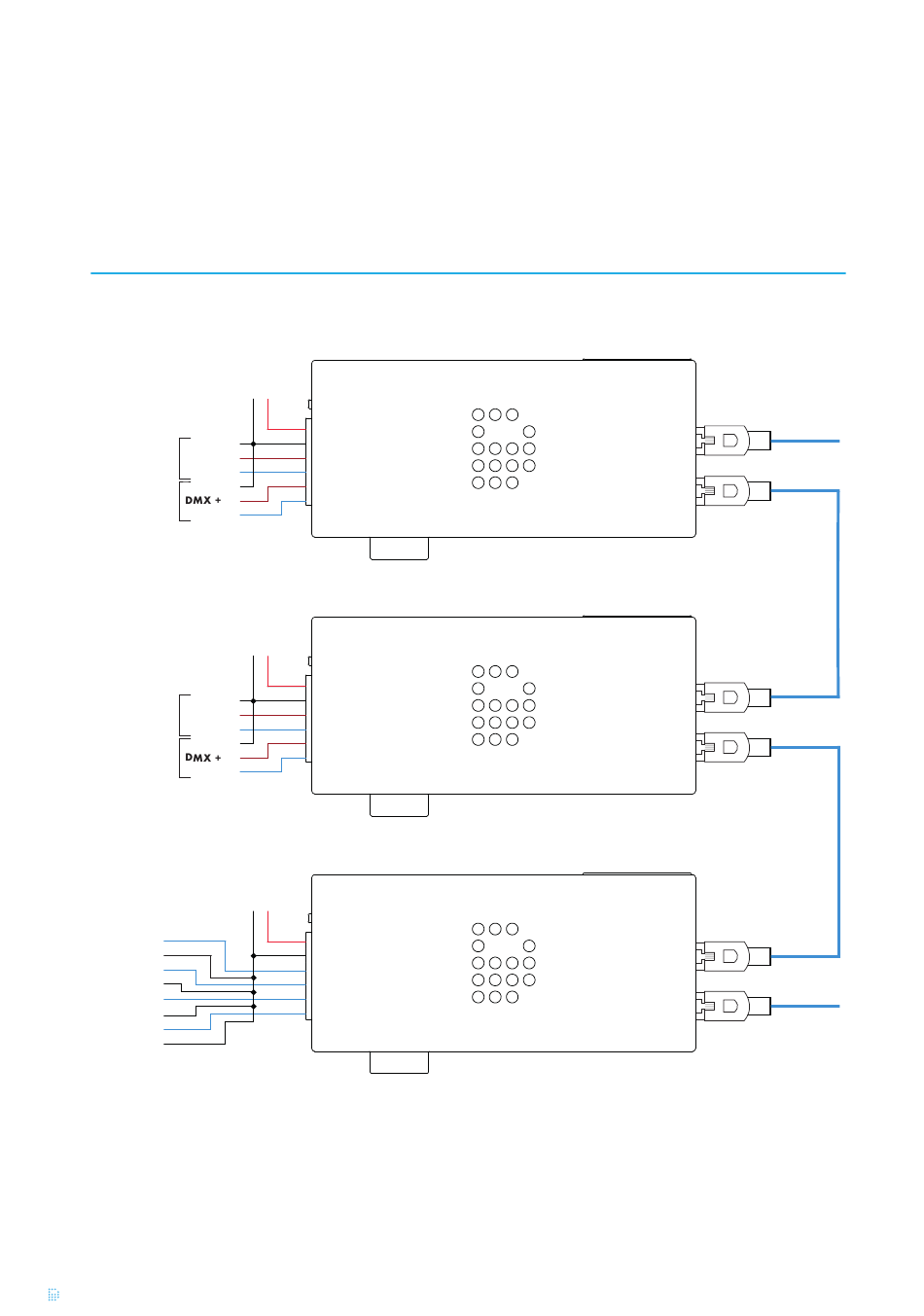

This is an example of multile C4 units with different configured ports in a network.
C4 Manual
G d ot
V
DC
+
--
DC +
DC --
D1
D2
D3
D4
V
DC
+
--
DC +
DC --
D1
D2
D3
D4
V
DC
-- +
DC +
DC --
D1
D2
D3
D4
C4
Version 1.0
Ethernet
Ethernet
Ethernet
Ethernet
Ethernet
Ethernet
