INTRODUCTION

The ADIS16501-2/PCBZ breakout board plays a crucial role as
an interface between the ADIS16501
processor platforms, streamlining the prototype development proc-
ess. This guide comprehensively covers all aspects of the breakout
board, from initial setup and basic configurations to advanced cus-
tomization and enhancement techniques. The ADIS16501-2/PCBZ
is designed to support users from diverse technical backgrounds,
ensuring they can successfully leverage its capabilities. Addition-
ally, this guide emphasizes the compatibility of the ADIS16501-2/
PCBZ across multiple versions and adaptability to meet specific
system requirements, providing a flexible tool for various projects.

GUIDE OBJECTIVE AND SCOPE

The primary aim of this guide is to assist users in quickly and
efficiently starting with the ADIS16501-2/PCBZ breakout board.
This user guide covers a broad spectrum of essential topics:
Setup procedures, step-by-step instructions to facilitate the initial
►
setup
Usage details, insights into effective utilization for prototype
►
development
Integration techniques, strategies to integrate the ADIS16501-2/
►
PCBZ breakout board with various embedded processor plat-
forms
Advanced configurations, tips for advanced users exploring
►
deeper customization and optimization
VERSIONS OF THE ADIS16501-2/PCBZ
BREAKOUT BOARD
The ADIS16501-2/PCBZ breakout board is part of a family of
products designed to facilitate the development of prototype con-
nections between microelectric mechanical system (MEMS) IMUs
and embedded processor platforms. This guide specifically covers
the ADIS16501-2/PCBZ model, which includes:
The ADIS16501 IMU, which is pre-equipped on the breakout
►
board and is designed for seamless integration
16-pin header for connection with 2 mm ribbon cables, which
►
support reliable communication over lengths up to 20 cm
While this guide focuses on the ADIS16501-2/PCBZ, the founda-
tional principles and connection strategies can apply to other
MEMS breakout board family models, provided that these breakout
boards share a similar design and interface characteristics. Users
can verify compatibility details for different models by consulting
product-specific documentation.
analog.com
IMU and various embedded
EVAL-ADIS16501
COMPATIBLE SYSTEMS AND PROCESSOR
PLATFORMS
The ADIS16501-2/PCBZ breakout board is designed with versatility,
ensuring compatibility with a wide range of embedded processor
platforms, including, but not limited to, systems that support the
following:
SPI communications because the board utilizes SPI for data
►
transfer, making it compatible with any system that can commu-
nicate via a SPI
A 3.3 V power supply because systems that can provide or
►
support this power supply are compatible with the ADIS16501-2/
PCBZ because this is the required voltage for this breakout
board

EVALUATION SYSTEMS COMPATIBILITY

The ADIS16501-2/PCBZ breakout board is designed for seamless
integration with the EVAL-ADIS-FX3, Analog Devices, Inc., recom-
mended open-source evaluation platform. This modern evaluation
system enhances the capabilities of the ADIS16501-2/PCBZ break-
out board, facilitating rapid prototype development and testing.
For additional details on the EVAL-ADIS-FX3, FX3 iSensor
uation system and its features and resources for supporting the
development process of users, see the
This recommendation ensures that users have access to the most
current and effective tools for their projects, leveraging the latest
technology supported by Analog Devices.

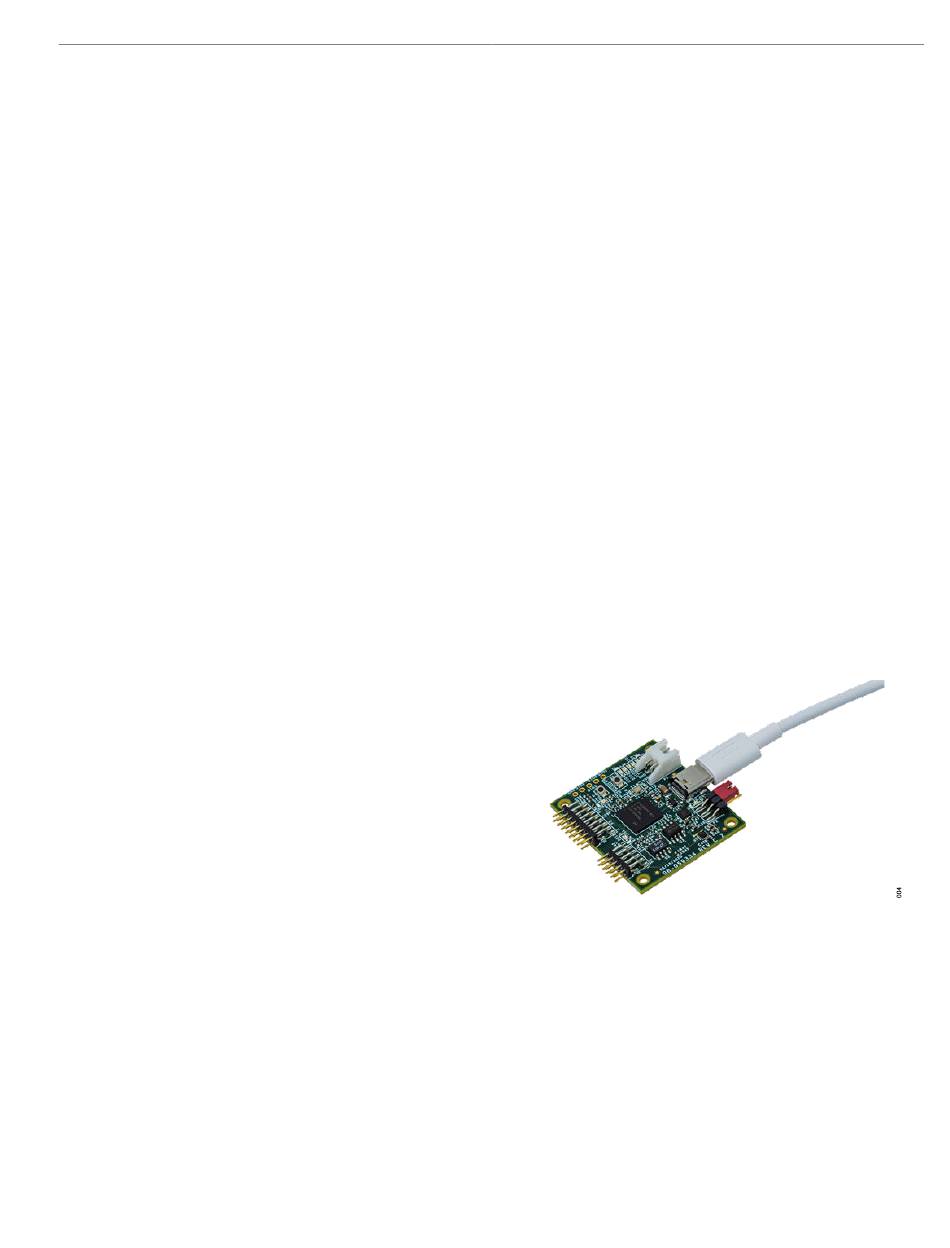

Figure 2. EVAL-ADIS-FX3 Board
®
