RIBBON CABLE CONNECTION BETWEEN THE ADIS16501 AND EVAL-ADIS-FX3
ADIS16501-2/PCBZ AND EVAL-ADIS-FX3
CONNECTION
See
Figure 5
and
Table 2
for the general identification based on
standard electronic components and board design.
Table 2. Standard Electronic Components and Usage
Component Description
Power Input
USB Connector
Ribbon Cable Power Connector
Pin Header (Communication Interface Connector)
Ribbon Cable for J1 Connector
analog.com

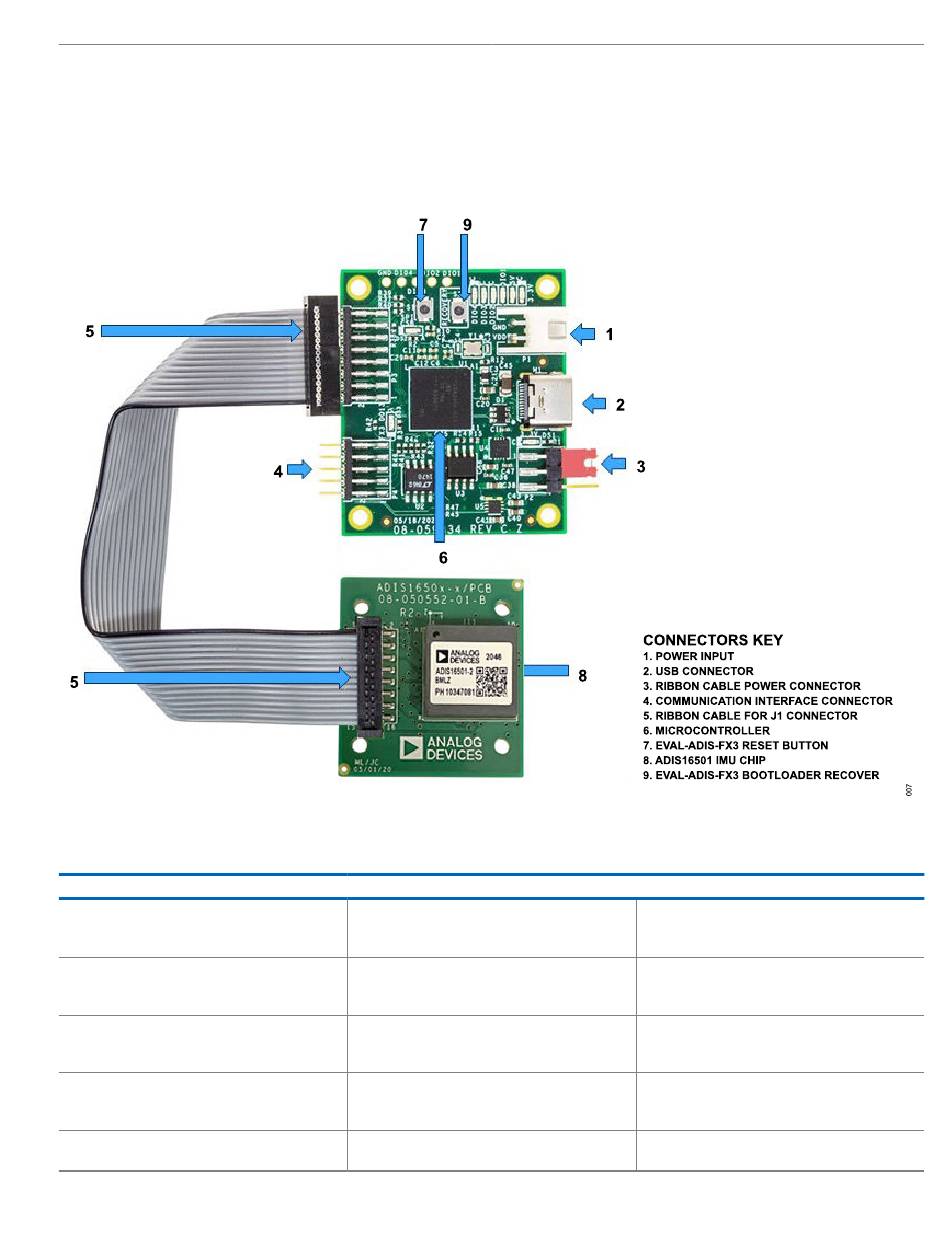

Figure 5. ADIS16501-2/PCBZ and
EVAL-ADIS-FX3
Function
It serves as the primary power supply entry point for the
ADIS16501-2/PCBZ breakout board.
It provides a dual role for both programming the
microcontroller and powering the ADIS16501-2/PCBZ
when connected to a USB host device.
Allows power distribution from the main board to
additional connected boards via a ribbon cable.
It facilitates the addition of peripheral devices or
expansion boards, providing access to SPI, I
communication protocols.
It transmits data and power signals between connected
boards, maintaining signal integrity over short distances.
EVAL-ADIS16501
Connections
Usage Recommendations
Ensure that the power supply matches the ADIS16501-2/
PCBZ specifications (typically 3.3 V). Incorrect voltage
can damage the breakout board.
It can be used to upload firmware updates for debugging
purposes through a direct connection to a PC.
Check the cable orientation and connection integrity
to ensure stable power delivery and avoid connection
errors.
It helps integrate additional sensors or output devices
2
C, or other
that complement the functionality of the ADIS16501 IMU.
Handle with care to avoid bends or breaks that may
disrupt signal continuity.
Rev. 0 | 6 of 15
