ADIS16501-2/PCBZ BREAKOUT BOARD COMPONENTS

The ADIS16501-2/PCBZ breakout board is specifically designed to
facilitate simple access to the features of the
IMU for development, testing, and integration into embedded sys-

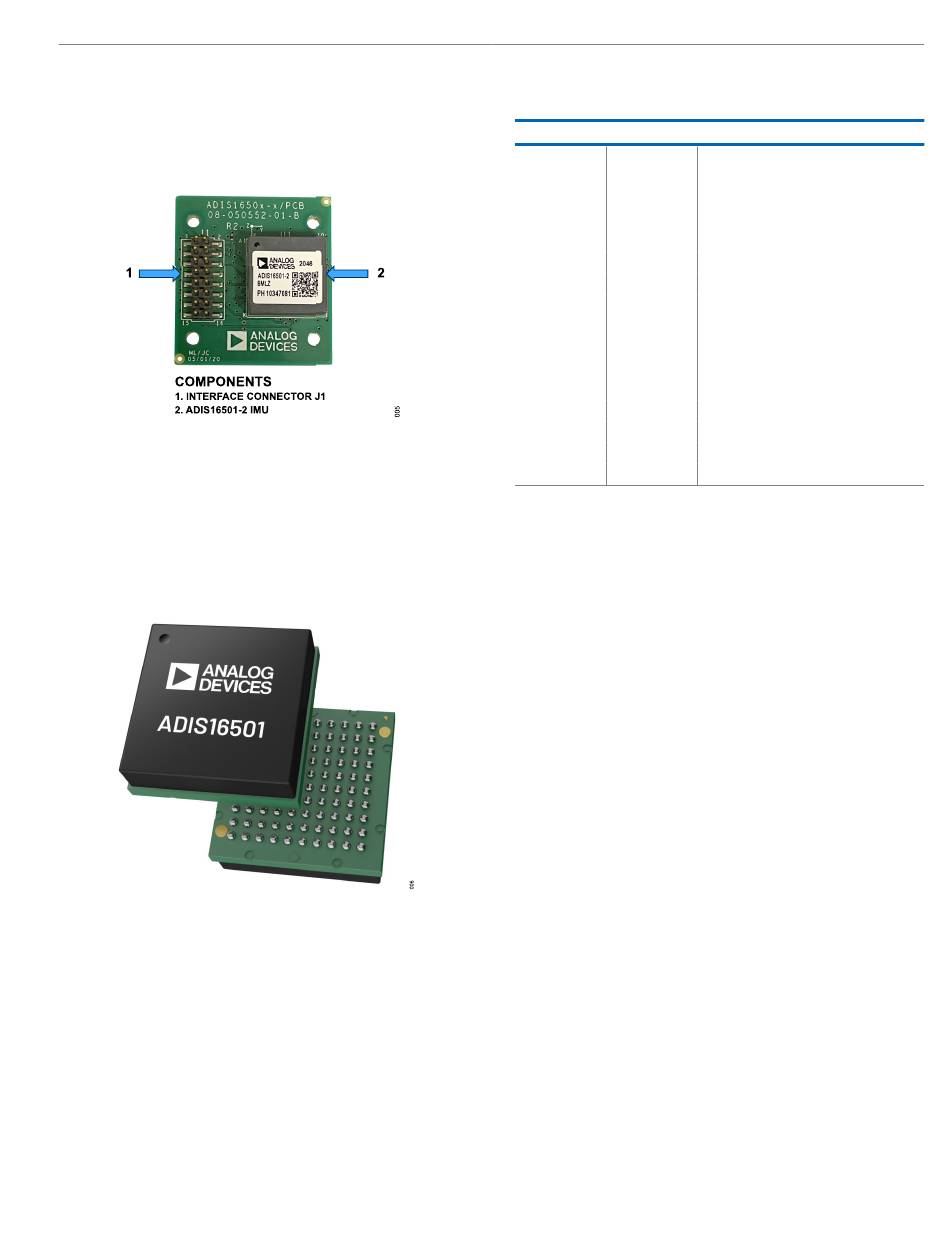

tems. Figure 3 shows the components on the ADIS16501-2/PCBZ.
Figure 3. ADIS16501-2/PCBZ Components
The ADIS16501 IMU is central to the ADIS16501-2/PCBZ break-
out board (see Figure 4). This high performance, multi-axis IMU
provides accurate angular rate (gyroscope) and linear acceleration
(accelerometer) measurements. The IMU captures and processes
inertial data, offering six degrees of freedom (3-axis gyroscope and
3-axis accelerometer) motion tracking. The IMU includes built-in
calibration and compensation algorithms to ensure data integrity.
Figure 4. ADIS16501 IMU
The 16-pin header (J1 connector) is a standard 16-pin connector
that allows a simple interface with external systems via a 2 mm
pitch ribbon cable. This header facilitates electrical connection and
communication between the IMU and an embedded processor
platform or evaluation system. Pin assignments include signals for
power (VDD), ground (GND), SPI communication (SCLK, NCS,
DOUT, and DIN), reset (NRESET), and additional functions, such
as data ready (DR) and synchronization (SYNC). See
additional details on the J1 connector interface.
analog.com
ADIS16501 MEMS
Table 1 for
EVAL-ADIS16501
Table 1. J1 Connector Interface Summary
Pin Number Mnemonic
1 NRESET
2 SCLK
3 NCS
4 DOUT
5 DNC
6 DIN
7 GND
8 GND
9 GND
10 VDD
11 VDD
12 VDD
13 DR
14 SYNC
15 DNC
16 DNC
Description
Reset, active low
Serial clock (SPI)
Chip select (SPI), active low
Data output (SPI)
Do not connect
Data input (SPI)
Ground
Ground
Ground
Power supply, 3.3 V
Power supply, 3.3 V
Power supply, 3.3 V
Data ready
Synchronization input
Do not connect
Do not connect
