ELECTRICAL SCHEMATIC AND J1 CONNECTOR PIN CONFIGURATION
Figure 8
details the pin configuration for the J1 connector, and
Figure 9
illustrates the electrical schematic for the ADIS16501-2/
PCBZ.
analog.com

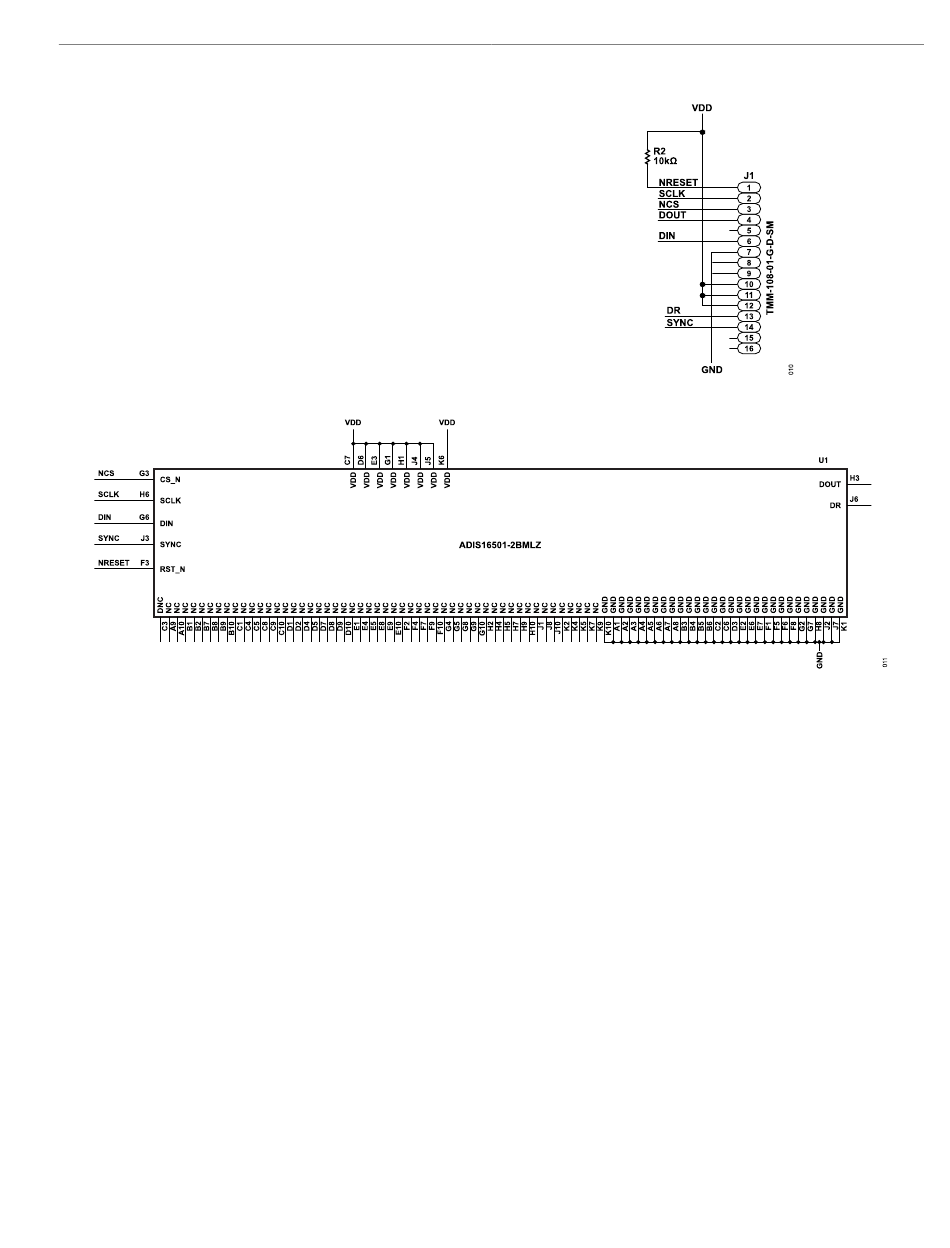

Figure 9. Electrical Schematic for the ADIS16501-2/PCBZ
EVAL-ADIS16501
Figure 8. Pin Configuration for J1 Connector
Rev. 0 | 12 of 15
