ADIS16COM1/PCBZ Breakout Board Wiki Guide

OVERVIEW

The ADIS16COM1/PCBZ provides a breakout function for the ADIS16000CMLZ, which pairs with the

ADIS16229AMLZ to provide the sensor, signal processing and transceiver function for a wireless

vibration sensing system.

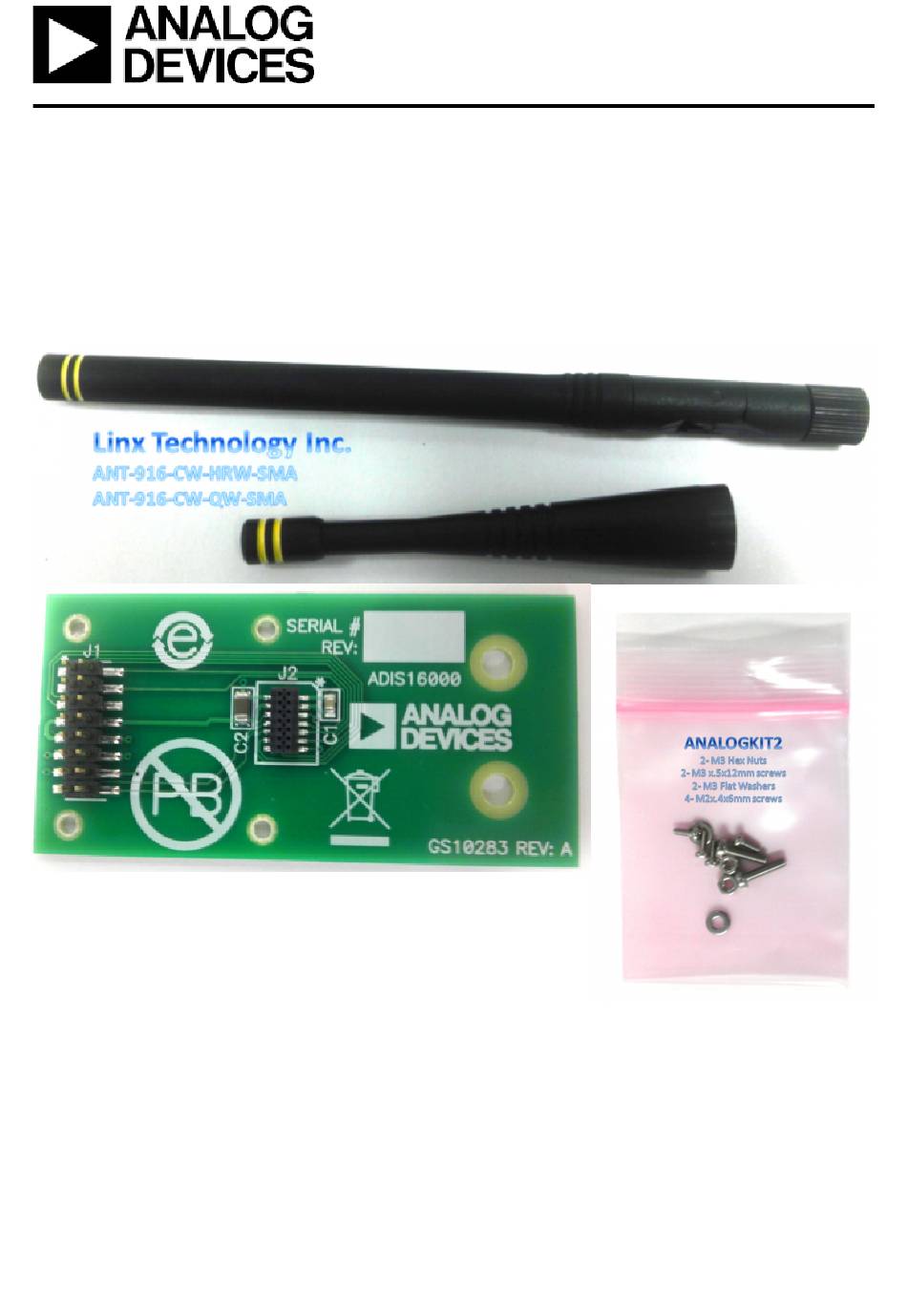

Here is a picture of the contents that come with the ADIS16COM1/PCBZ.

The ADIS16COM1/PCBZ provides 4 mounting holes that line up with mounting "A" Labeled holes on

the

EVAL-ADIS

and supports the following products:

Please see the following picture for device mounting hole locations.

ADIS16000AMLZ ADIS16229AMLZ

Rev 29 Aug 2013 21:21 | Page 1

www.analog.com

products.

Table of Contents

Do you have a question about the ADIS16COM1/PCBZ and is the answer not in the manual?

Page 1 Here is a picture of the contents that come with the ADIS16COM1/PCBZ. ADIS16COM1/PCBZ MOUNTING HOLES The ADIS16COM1/PCBZ provides 4 mounting holes that line up with mounting “A” Labeled holes on EVAL-ADIS and supports the following products: ADIS16000AMLZ ADIS16229AMLZ products.
Page 2 ANALOGKIT2) for mounting ADIS16000AMLZ product to the ADIS16COM1/PCBZ and set their torque for 20 inch-ounces. The red-highlights in the top-view picture illustrate the location of the mounting holes for these products. Attach the 16 pin ribbon cable included with the EVAL-ADIS connect the J1 connectors.
Page 3 WARNING: Make sure that the connector pins are in alignment with J1 on the EVAL-ADIS and J1 on the ADIS16COM1/PCBZ, before pressing it into place. Rev 29 Aug 2013 21:21 | Page 3...
Page 4 Here is a close-up view, which shows a few slides of the correct connector alignment . Rev 29 Aug 2013 21:21 | Page 4...
