DIMENSIONS AND MOUNTING HOLES
The ADIS16501-2/PCBZ breakout board has four mounting holes
(one in each corner) that support attachment to another surface
with M2 machine screws (see
Figure
7).

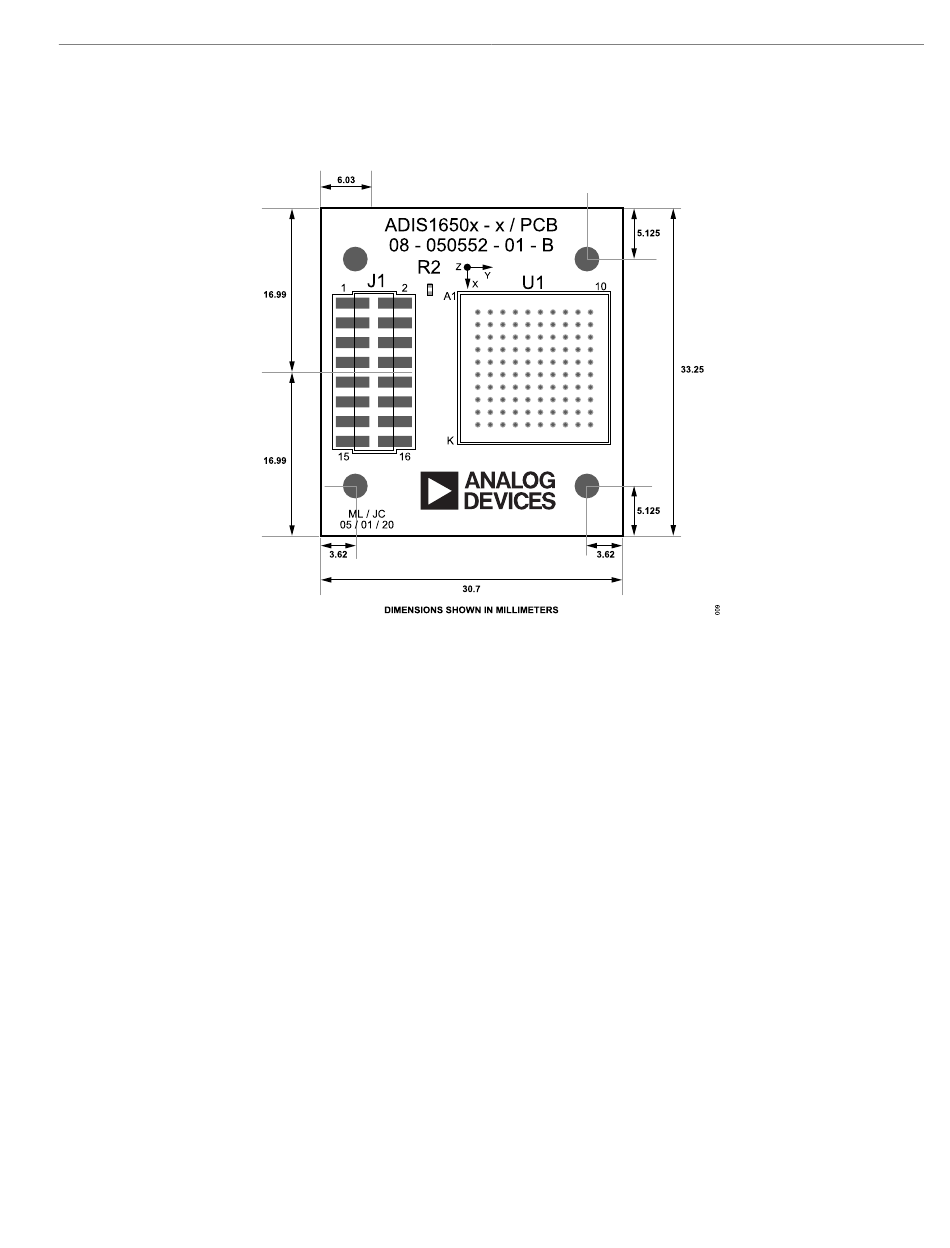

Figure 7. Dimensions and Mounting Holes
