Design Guide | iC7-Automation Air-cooled Enclosed Drives
Analog Outputs
7.7.2
The I/O and Relay Option has 1 analog output that can be configured with the software to voltage output or current output. The table
shows the specification for the analog output.
The analog output is protected in overvoltage conditions.
Table 22: Analog Output Types and Values
Parameter
Output Voltage Range
Output Current Range
Accuracy
Reaction time
Electrical fast transient (EFT)
A
[Ohm]
18000
16000
14000
12000
10000
8000
6000
4000
2000
0
0
2
4
6
B

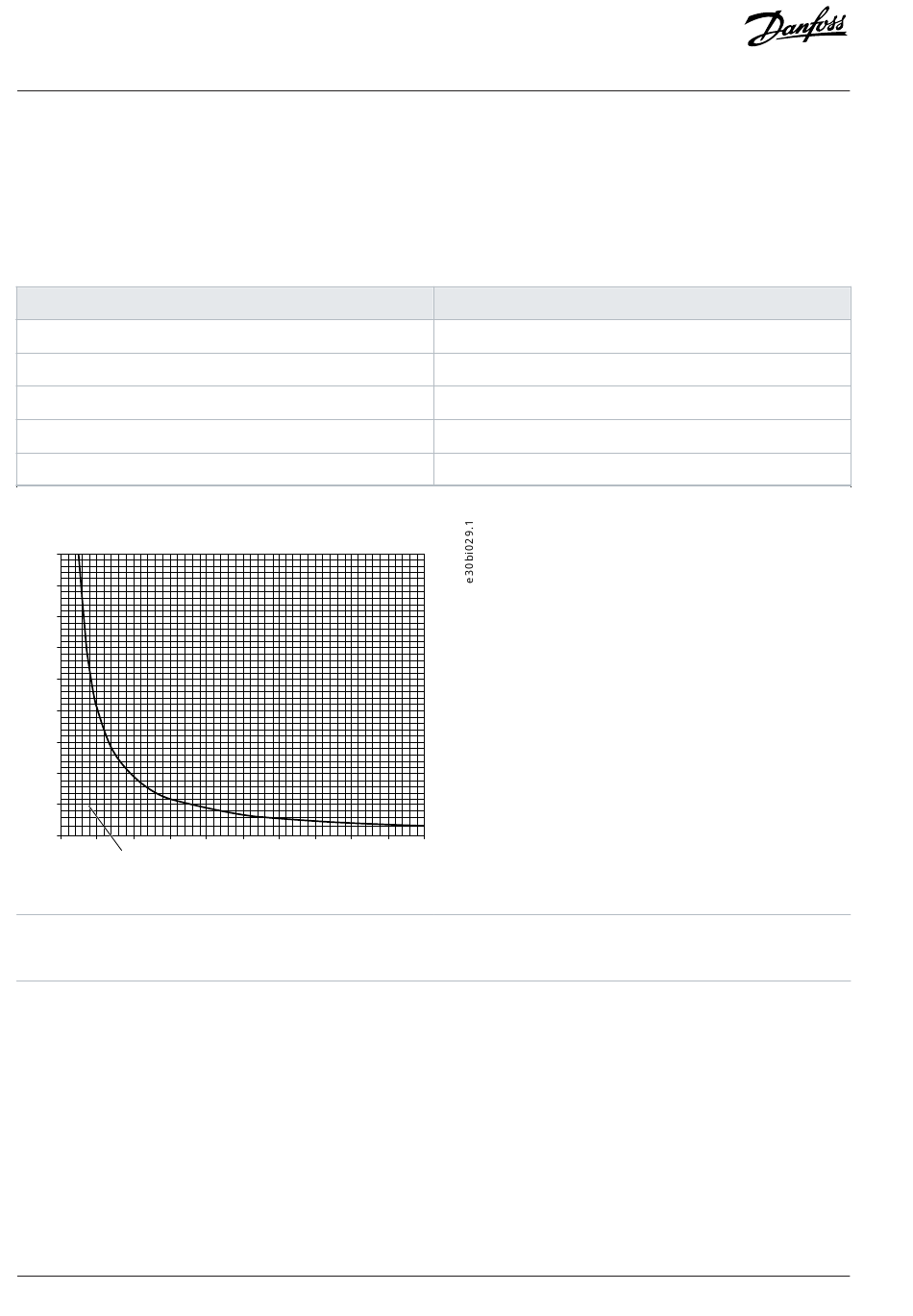

Figure 38: Allowed Load Resistance of Analog Output in Current Mode
A
Load resistance
C
Output current
Digital Inputs
7.7.3
The I/O and Relay Option has 6 digital inputs. By default, the digital inputs are not isolated, because there is an external wire between the
connector pins 19 (D
) and 23 (GND). The digital inputs can be functionally isolated from the PCB ground of the I/O and Relay Option
GND
by removing the wire. The digital inputs are polarity free.
Digital inputs are overvoltage protected.
60
| Danfoss Drives Oy © 2024.09
8
10
12
14
16
Value
0...10 V
0...20 mA
0.5% of full scale
0...90% step: <1 ms
2 kV
C
18
20
[mA]
B
Allowed load resistance
Control and Option Installation
AJ389643274589en-000101 / 172F6409A
