General Information of the Control Compartment
7.1
The enclosed drive has a door-mounted control compartment for the control terminals, separated from the cabinet section. The control
compartment is accessed through a separate door on the cabinet door.
Make sure that the control cables are long enough. This prevents tight bends in the cables between the control compartment and the
frame of the drive and ensures that the control compartment can be fully opened during module maintenance.
The 2 first I/O option boards are wired into the terminal blocks on the control compartment, and the next ones directly into the option
board terminals. The wiring of the boards:
I/O and Relay Option OC7C1 as standard I/O: on the terminal block on the control compartment
l
Relay Option OC7R0: on the terminal block on the control compartment
l
General Purpose I/O OC7C0: on the terminal block on the control compartment
l
I/O and Relay Option OC7C1 as an option: on the option board
l
Control Compartment Door Elements
7.2
1
2
3
4
5
6

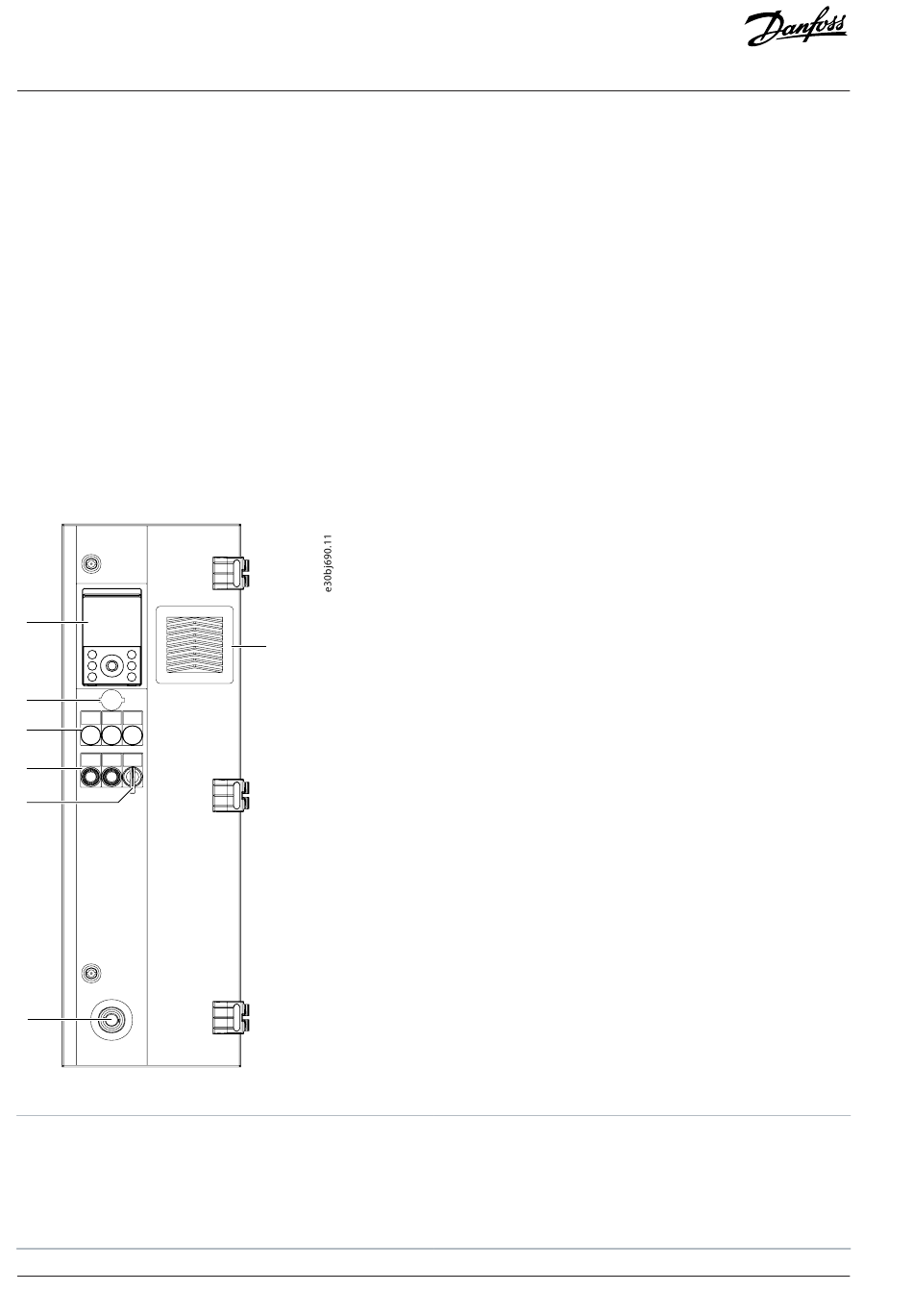

Figure 30: Control Compartment Door Elements, FE9, FE10
1
Control panel, -PGA
3
Run, ready, and fault lights (+IICD), -PF3, -PF4, -PF5
5
Mains contactor Local/Remote switch, -SFB
7
Fan and filter cover and optional IP54 filter (+IP54)
48
| Danfoss Drives Oy © 2024.09
7
2
4
6
Control and Option Installation
Ethernet port, RJ45
Mains contactor push button Open/Close, -SF7.1, -SF7.2
Emergency stop button (+ILSS), -SFG
AJ389643274589en-000101 / 172F6409A
