Dimensions of the 16-port Star Coupler Board
9.2.18

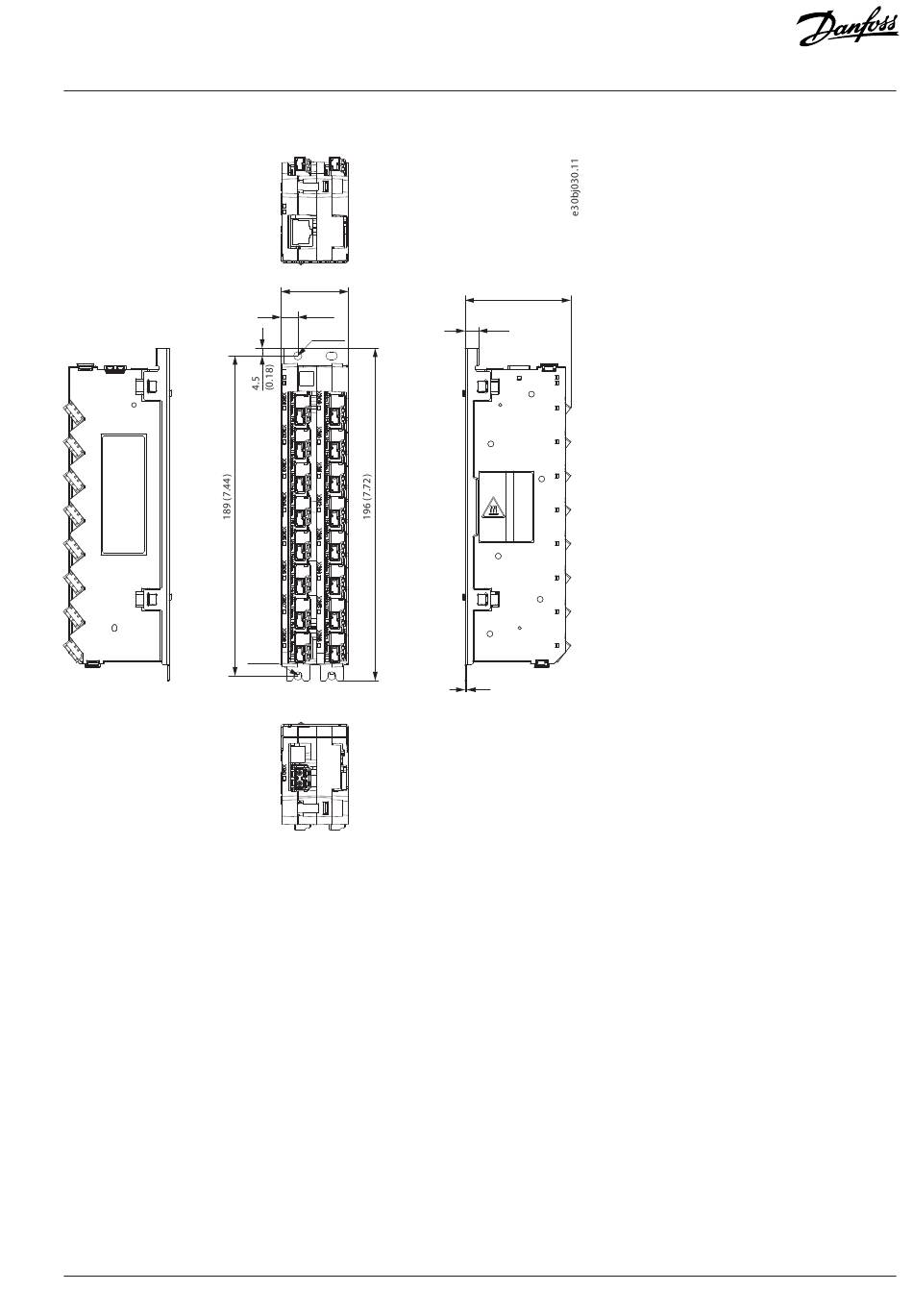

Figure 69: Dimensions of the 16-port Star Coupler Board in mm (in)
Danfoss Drives Oy © 2024.09
39.8 (1.57)
9.8 (0.39)
Ø4.8 (0.19)
Ø4
(0.16)
62.4 (2.46)
8 (0.32)
1 (0.04)
AJ389643274589en-000101 / 172F6409A |
