To change the fuse in a Summit series switch:
1 To change the fuse, disconnect power from the unit before opening the fuse holder cover.
2 Release the fuse holder by gently levering a small screwdriver under the fuse holder catch.
3 Replace the fuse. Use only fuses of the same manufacturer, rating, and type as the original.
4 Close the fuse holder.
To comply with European safety standards, a spare fuse must not be fitted to the appliance inlet. Use
only fuses of the same manufacturer, make, and type.

Connections

Fiber Optic ports - Optical Safety. To protect your eyes, never look at the transmit LED/laser through a
magnifying device while it is powered on. Never look directly at a fiber port on the switch or at the
ends of fiber cable when they are powered on.
This is a Class 1 laser device.
WARNING!
Use fiber optic ports only for data communications applications that require optical fiber. Use only with
the appropriate connector. When not in use, replace dust cover. Using this module in ways other than
those described in this manual can result in intense heat that can cause fire, property damage, or
personal injury.

Lithium Battery

The battery in the bq4830/DS1644 device is encapsulated and not user-replaceable. The battery is
located on the SMMi for the Alpine switch, and the MSM motherboard for the BlackDiamond switch.
If service personnel disregard the instructions and attempt to replace the bq4830/DS1644, replace the
lithium battery with the same or equivalent type, as recommended by the manufacturer.
WARNING!
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries according to the manufacturer's
instructions.
Extreme Networks Consolidated "i" Series Hardware Installation Guide

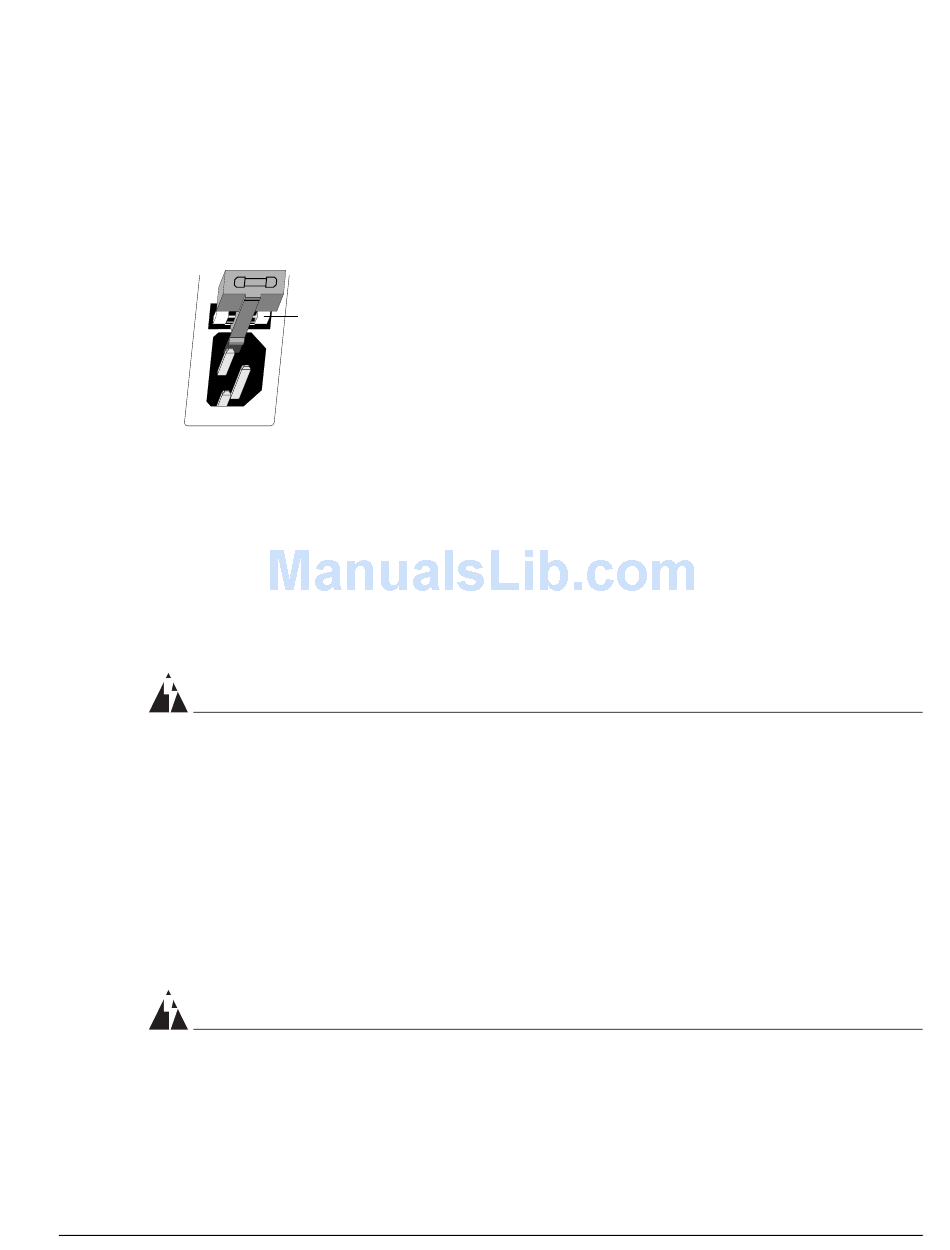

Fuse
UK_fuse
Important Safety Information
291
