F48Ti Module

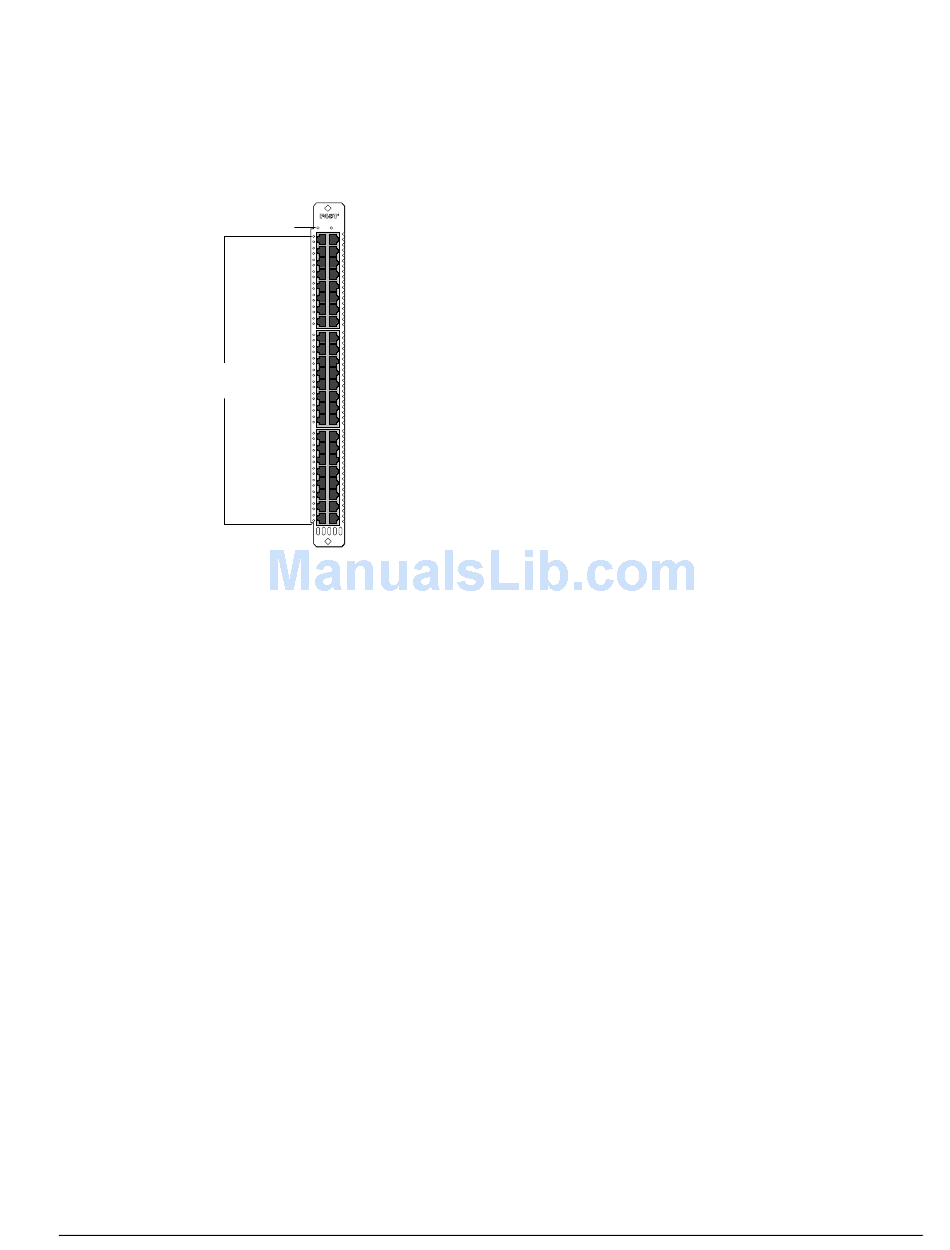

Figure 122 shows the F48Ti module.
Figure 122: F48Ti module
Module status LEDs
10/100 Mbps ports
with status LEDs
The F48Ti has 48 autosensing 10BASE-T/100BASE-TX ports. All ports use standard RJ-45 connectors.
The default configuration of the F48Ti module is as follows. All ports:
• Are added to the default VLAN as untagged.
• Inherit the properties of the default VLAN (protocol type, VLANid, and so forth).
• Operate in auto-negotiation mode.
LEDs
The F48Ti module has the following LEDs:
• Module status
• Port status
For information about the LEDs and their activity on the F48Ti module, see "I/O Module LEDs" on
page 267.
Software Requirements
The F48Ti module requires that you load ExtremeWare version 6.1.4 or later on the switch.
