BlackDiamond 6800 Series Management Switch Module
Table 68: Packet throughput between I/O modules (continued)
Chassis # of MSMs
BlackDiamond 6804
You can install an MSM in one of the designated (lettered) slots in the BlackDiamond 6800 series
chassis:
• BlackDiamond 6816—Slots labeled A, B, C, or D
• BlackDiamond 6808—Slots labeled A or B
• BlackDiamond 6804—Slots labeled A or B

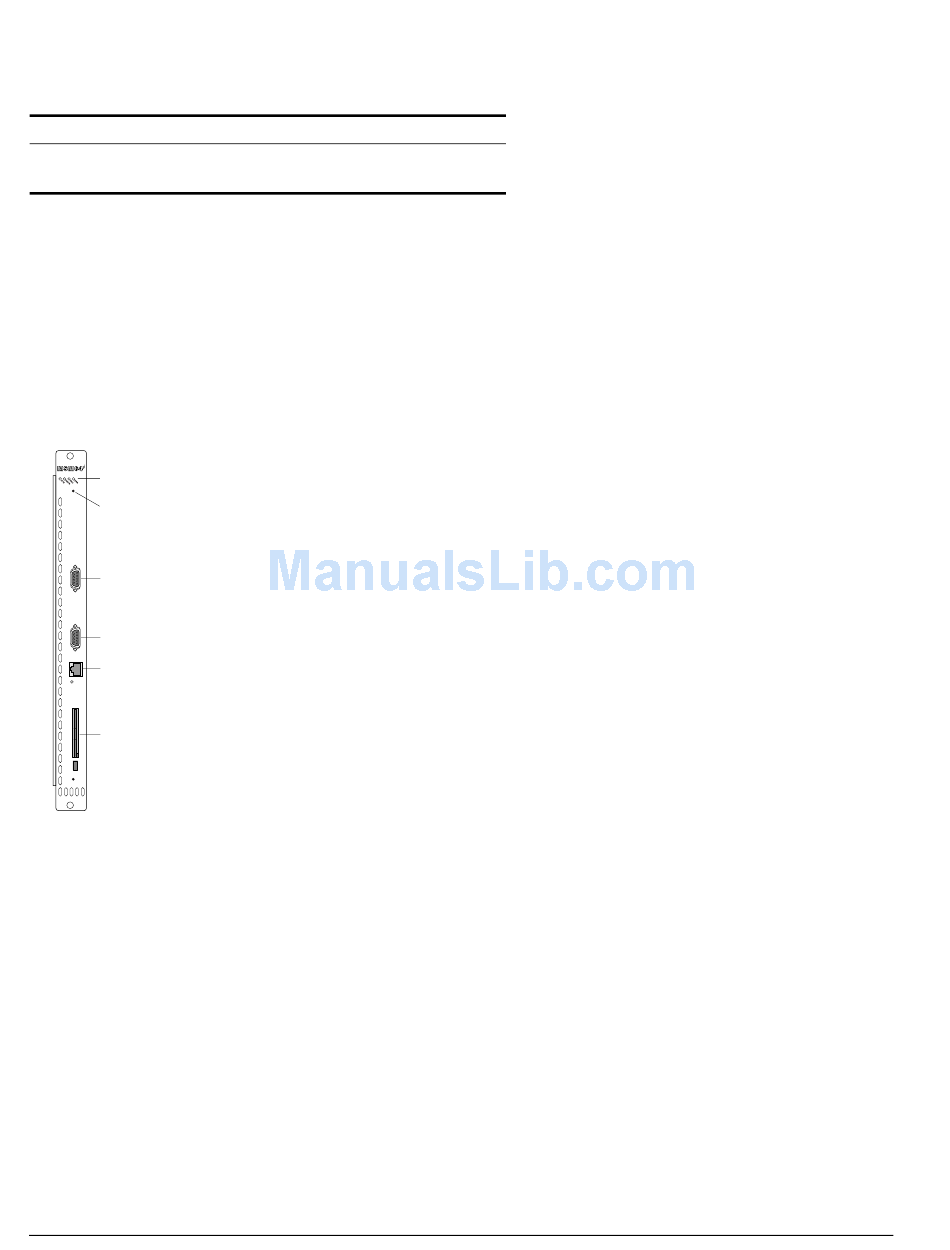

Figure 111 shows the front view of the MSM64i.
Figure 111: MSM64i Module
Module status LEDs
50015
Module reset button
CONSOLE
Console port
MODEM
Modem port
MGMT
Management port
LINK /
ACTIVITY
PCMCIA slot
PCMCIA
EW_MSM64i
Figure 112 shows the frontn view of the MSM-3.
226
Throughput
1 32 Gbps
2 64 Gbps
