Installing the AC Power Cable Retaining Bracket

This section describes how to install the AC power cable retaining bracket on a Summit switch.
To install an AC power cable retaining bracket:
1 Disconnect the power cable from the switch and the power source.
2 Remove the two retaining screws from the power socket on the rear of the switch using a #2 Phillips
screwdriver.
Keep the screws for future use.
3 Slide the retaining bracket over the power cable, as shown in Figure 38.
If necessary, loosen the retaining bracket screw.

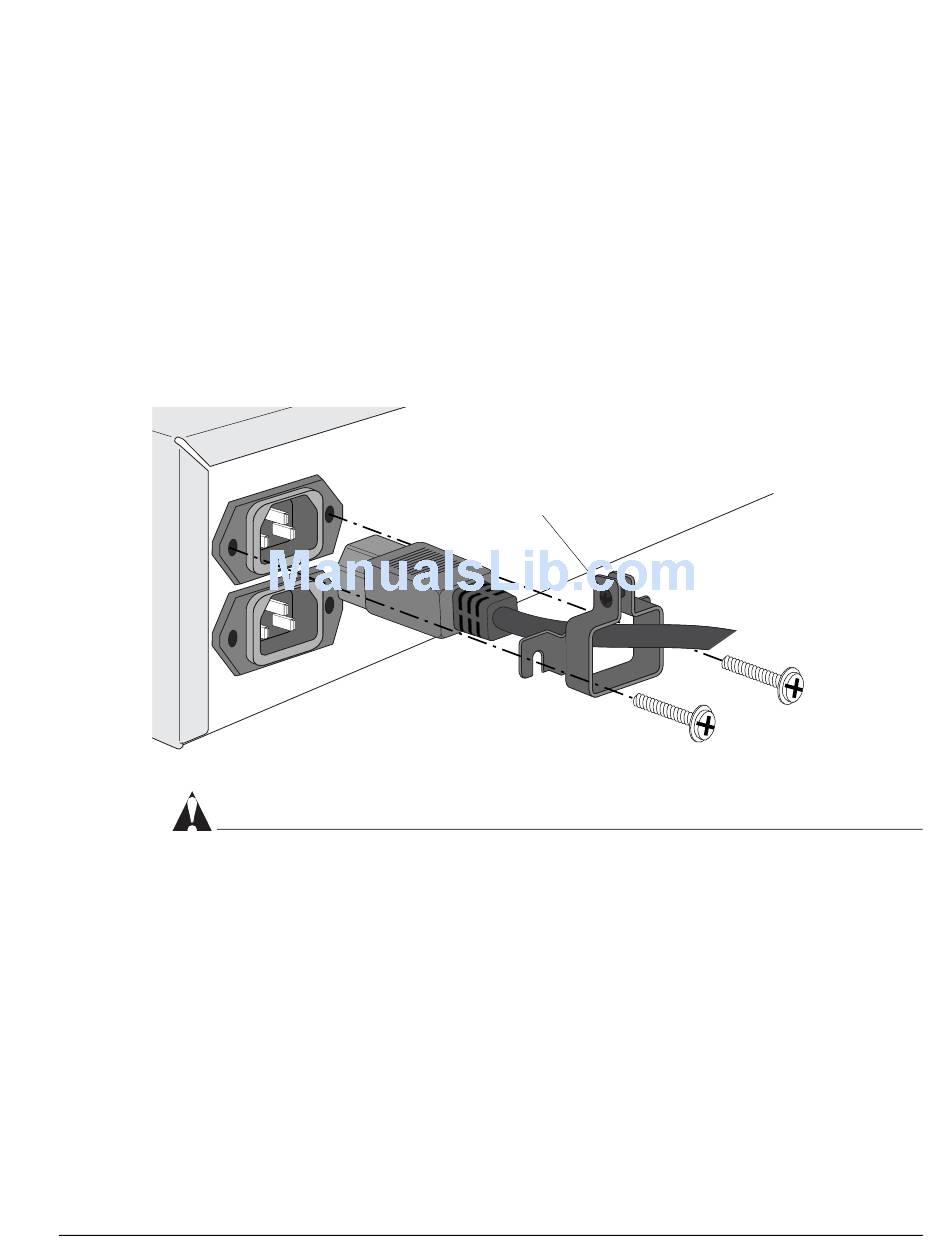

Figure 38: Attaching the retaining bracket to the power socket
4 Connect the power cable to the switch.
CAUTION
Do not connect the power cable to the power source at this time.
5 Attach the retaining bracket to the power socket using the existing screws, as shown in Figure 38.
Extreme Networks Consolidated "i" Series Hardware Installation Guide
Retaining bracket screw
Installing the AC Power Cable Retaining Bracket
SH_001
