BlackDiamond 6800 Series Management Switch Module
CAUTION
You can install MSMs in lettered slots only. MSMs do not fit in numbered slots. Forceful insertion can
damage the MSM module.
2 Attach the ESD strap that is provided to your wrist and connect the metal end to the ground
receptacle that is located on the top-left corner of the switch front panel.
3 Remove the blank faceplate from the slot to make room for the module, if applicable.
NOTE
Any unoccupied module slot in the chassis should have a blank faceplate installed to ensure
satisfactory protection from EMI and to guarantee adequate airflow through the chassis.
4 Grasp the module by its front panel with one hand, and place your other hand under the edge of the
metal panel to support the weight of the module.
Check the connectors for dust and packing materials.
CAUTION
To prevent ESD damage, handle the module by the metal panel edges only. Never touch the
components on the PCB or pins on any of the connectors.
5 For the BlackDiamond 6816 and the BlackDiamond 6804, ensure that the MSM is horizontal as
shown in Figure 114, with the:
• Module name to the left
• PCB on top
• Ejector/injector levers extended

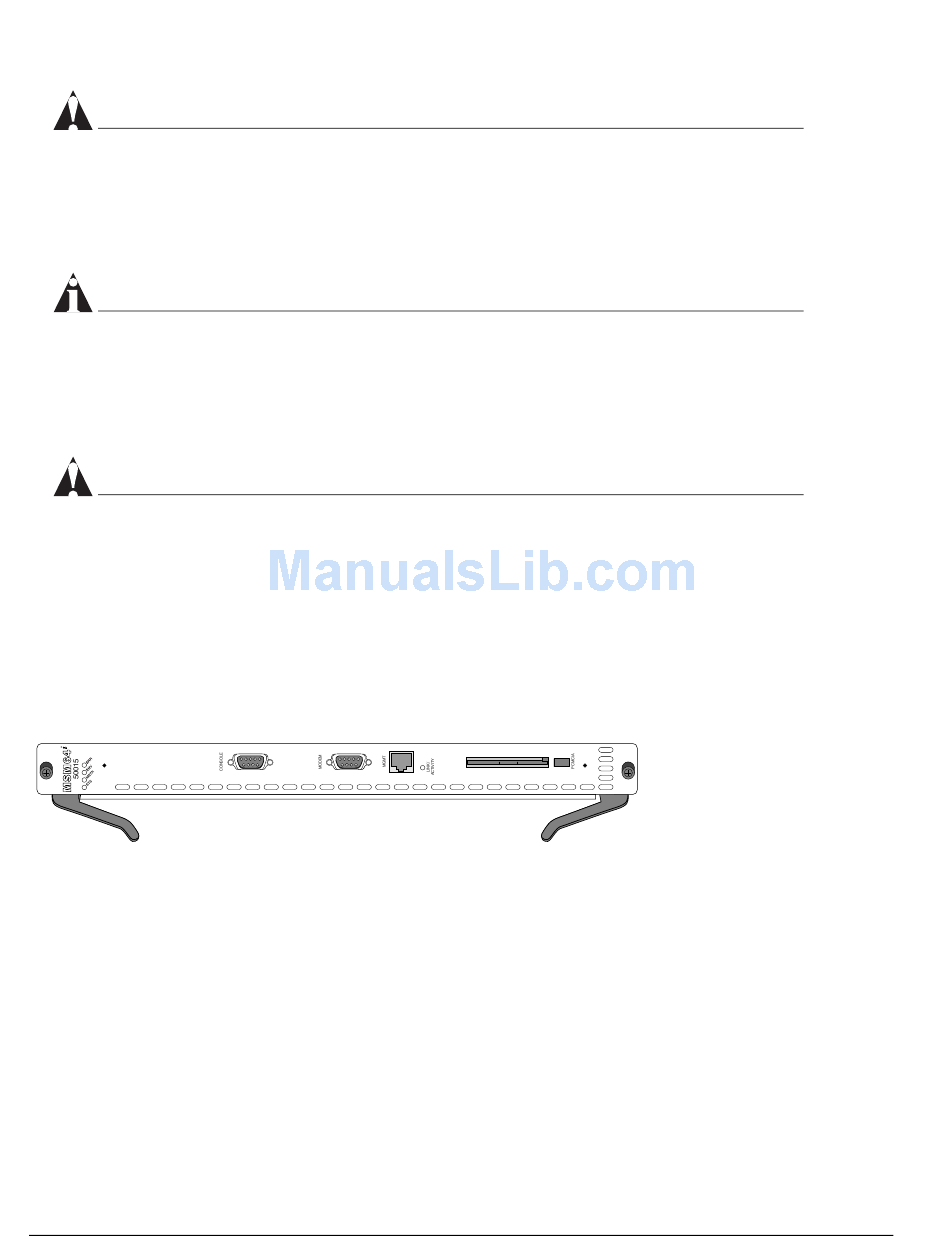

Figure 114: MSM prior to insertion in a BlackDiamond 6816 or a BlackDiamond 6804
For the BlackDiamond 6808, ensure that the MSM is vertical as shown in Figure 115, with the:
• Module name at the top
• PCB to the right
• Ejector/injector levers are extended
