To AC
3 Connect the AC input power cable to the AC connector on the EPS-LD unit.
CAUTION
The EPS-LD unit does not have a switch for turning the unit on and off. You disconnect power to the
EPS-LD unit by removing the plug from the electrical outlet. Ensure that this connection is easily
accessible to you.
4 Connect the other end of the AC cable into the electrical outlet.
Ensure that the electrical outlet is properly grounded.
NOTE
Consider all the equipment connected to the power supply circuit to ensure that the circuit is not
overloaded. Use proper overcurrent protection, such as a circuit breaker, to prevent overcurrent
conditions.
The Power LED on the front of the EPS-LD unit turns solid green to indicate that it is ready. Table 43
shows the possible LED status for the power supply.
Removing an EPS-LD unit
To remove an EPS-LD unit:
1 Disconnect the AC power by removing the plug from the wall.
2 Disconnect the AC power cord from the EPS-LD unit.
3 Remove the cable that connects to the Extreme switch from the EPS-LD unit.
4 Loosen the thumbscrews on the front of the EPS-LD mounting racks.
5 Slide EPS-LD unit out of rack.
Extreme Networks Consolidated "i" Series Hardware Installation Guide
EPS-LD
FM-32Pi

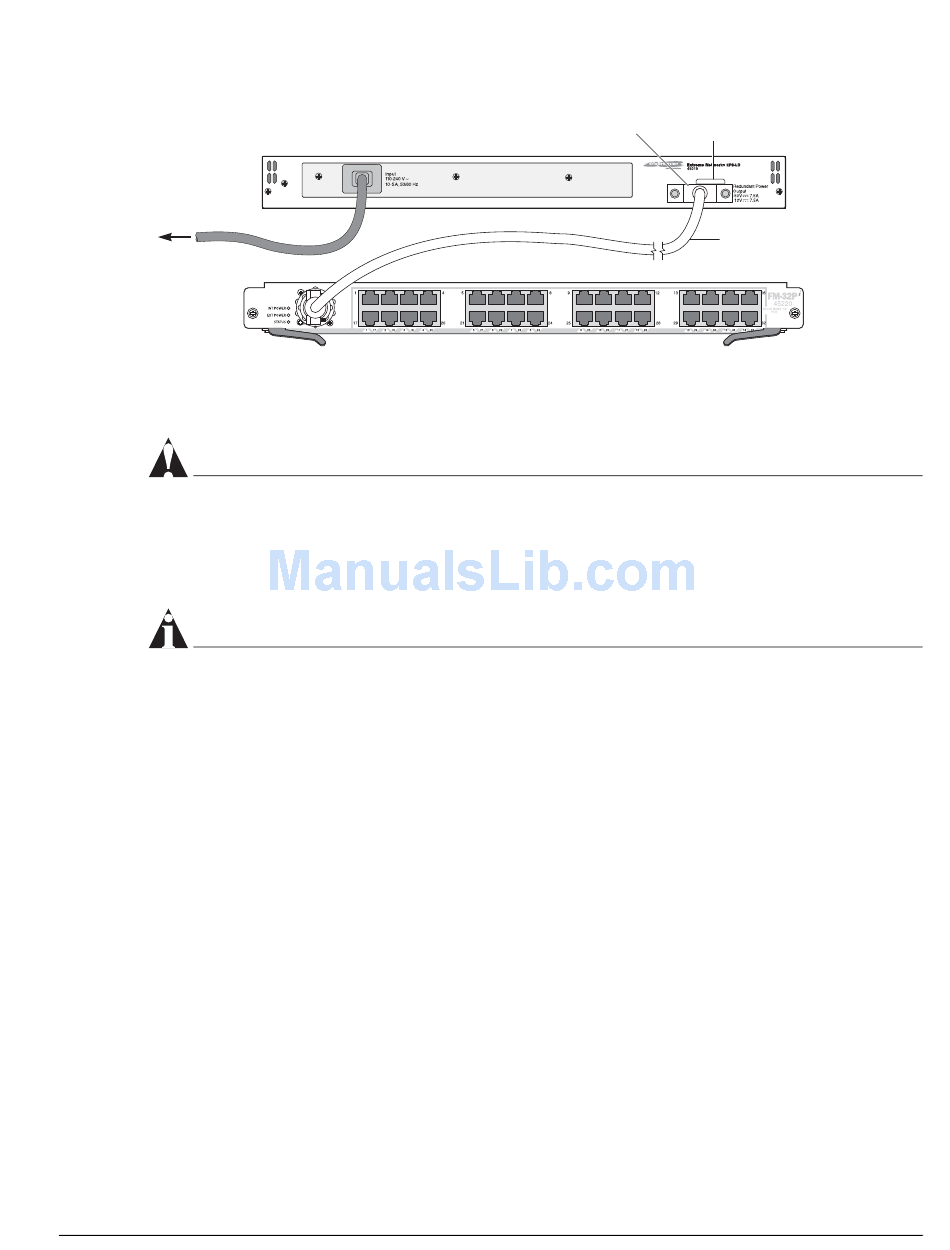

Installing the Alpine 3800 Series Switch External Power Supply
Keyed end of
redundant power cable
Slot for key
Redundant
power cable
EPSLD02
143
