Alpine 3800 Series Switch Power Supplies

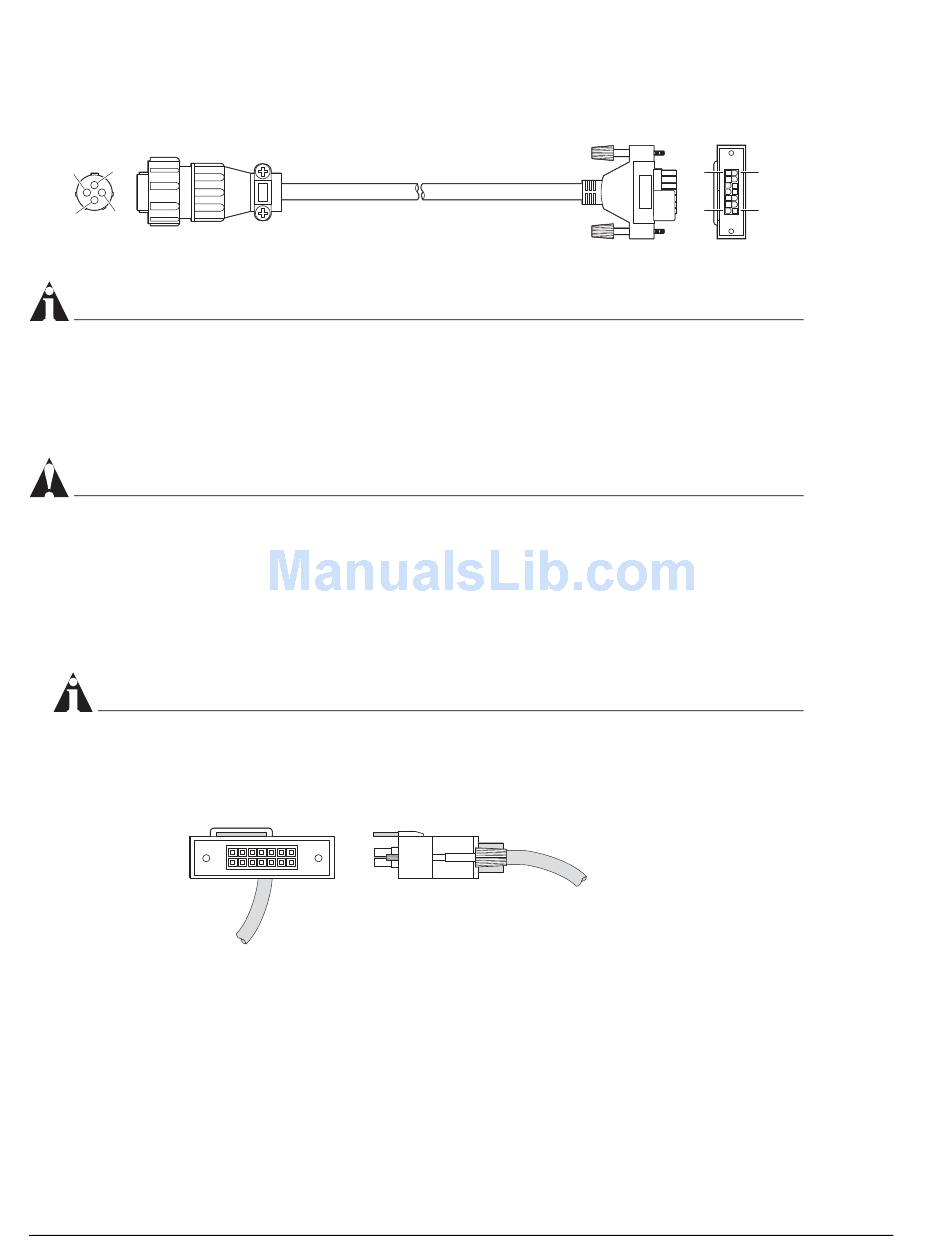

Figure 64: EPS-LD connecting cable
3 1
4 2
NOTE
The Extreme EPS-LD unit must only be installed or removed by trained service personnel in accordance
with the installation instructions. Before servicing this system, please read the safety information
provided in Appendix A. Not following these precautions can result in equipment damage or shock.
Connecting the EPS-LD unit to the FM-32Pi Module
CAUTION
Do not attach the AC power cord to the EPS-LD unit until the unit is properly grounded at the electrical
outlet and the redundant power supply cable is connected.
1 Connect the keyed end of the EPS-LD cable to the power supply unit(s). The key is a plastic tab on
the cable connector housing that fits into the EPS-LD unit to ensure correct alignment of the
connector.
See Figure 65 for details on the connector key, and see Figure 66 to locate the connectors on the
EPS-LD unit and on the FM32Pi module.
NOTE
The cable length is 1.5 meters.
2 Connect the other end to the Circular Power connector on the front panel of the FM-32Pi.
Figure 65: EPS-LD cable with key
Figure 66: Cable connector for connecting an EPS-LD unit to a FM32Pi module
