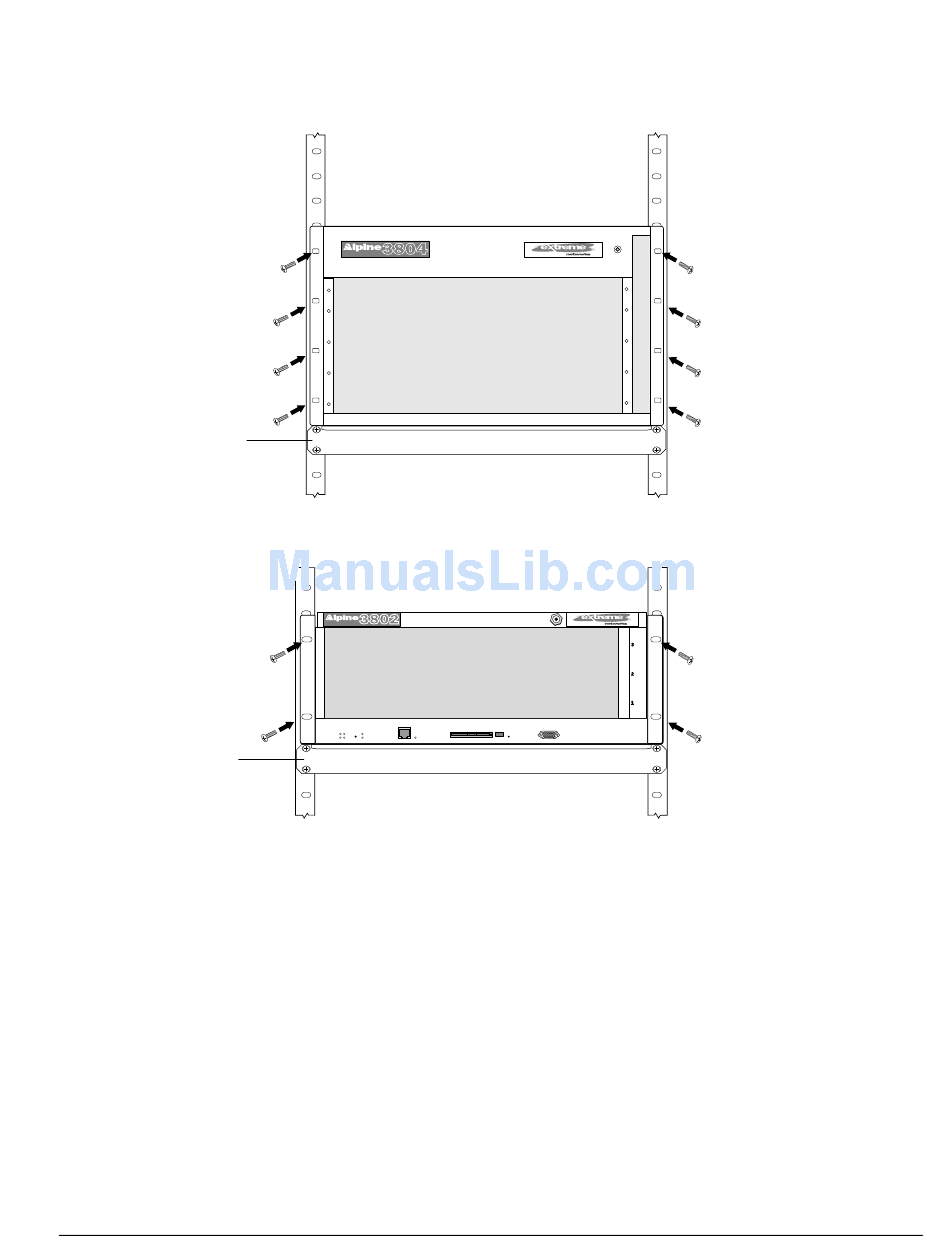

Figure 52: The Alpine 3804 chassis requires 8 screws to be securely mounted in a rack
Helper
bracket
Figure 53: The Alpine 3802 chassis requires 4 screws to be securely mounted in a rack
Helper
bracket
6 After you secure the chassis, remove the helper bracket. Store it for future use, for example, if you
need to remove the chassis.

Grounding the Alpine 3800 Series Chassis

To ground your Alpine 3800 series chassis in accordance with NEBS standards, gather these materials:
• Two zinc-plated steel lockwashers
• Two zinc-plated steel nuts
• One Panduit-style, standard two-hole barrel, copper compression lug
• AWG, high strand-count copper wire cable, appropriate for your chassis
— 8 AWG for the Alpine 3808
— 10 AWG for the Alpine 3804
— 14 AWG for the Alpine 3802
