Alpine 3800 Series I/O Modules

FM-32Ti Module

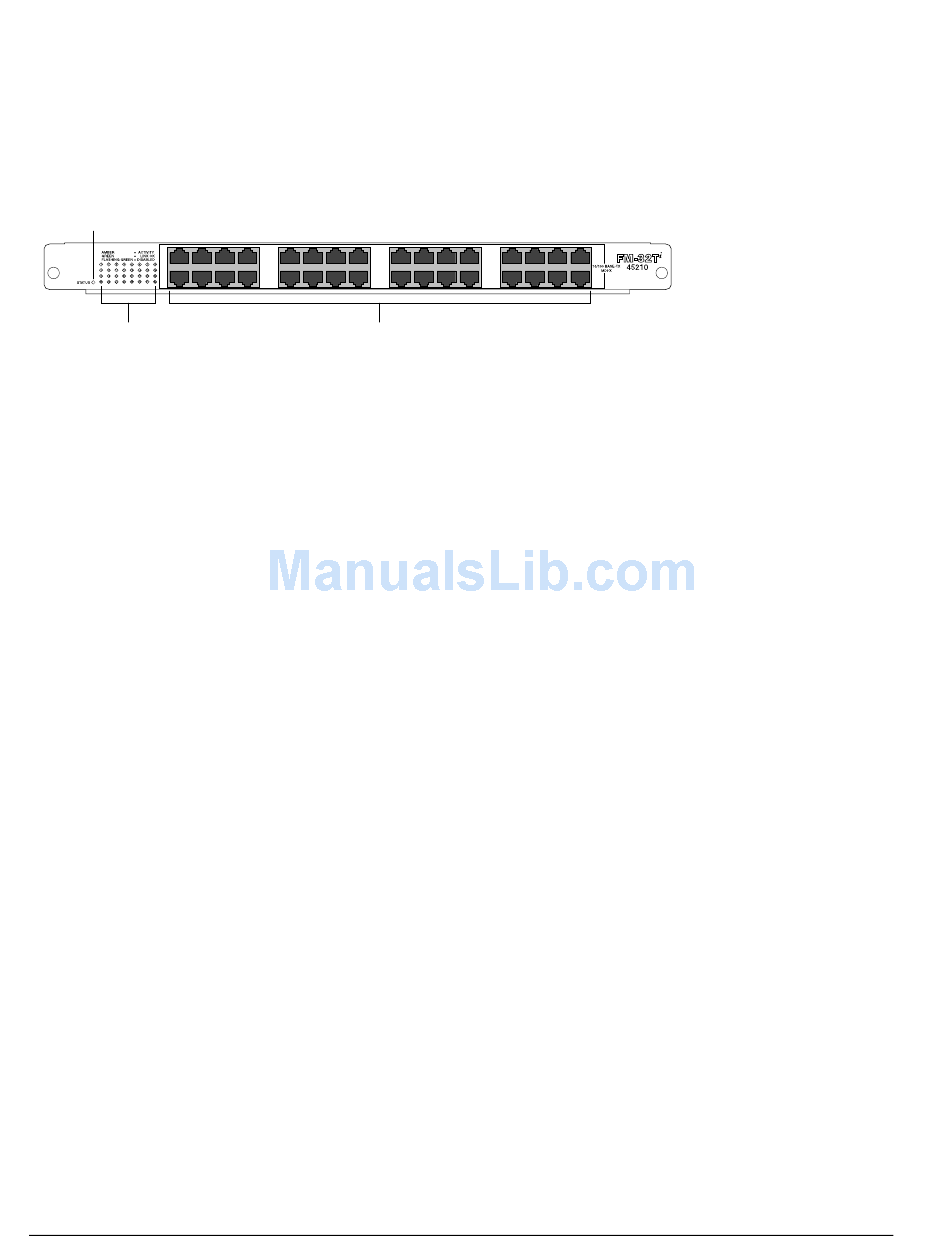

Figure 79 shows the FM-32Ti module.
Figure 79: FM-32Ti module
Module status
LED
1
17
Port status LEDs
The FM-32Ti module has 32 10/100 Mpbs autonegotiating Ethernet ports using standard RJ-45
connectors. The FM-32Ti module supports autonegotitation of 10BASE-T and 100BASE-TX.
The default configuration of the FM-32Ti module is as follows. All ports:
• Are added to the default VLAN as untagged.
• Inherit the properties of the default VLAN (protocol type, VLANid, and so on).
• Operate in autonegotiation mode.
LEDs
The FM-32Ti module has the following LEDs:
• Module status
• Port status
For information about the LEDs and their activity on the FM-32Ti module, see "I/O Module LEDs" on
page 175.
168
4 5 8 9
20 21 24 25
10/100 Mbps ports
12 13 16
28 29 32
38_FM32T
