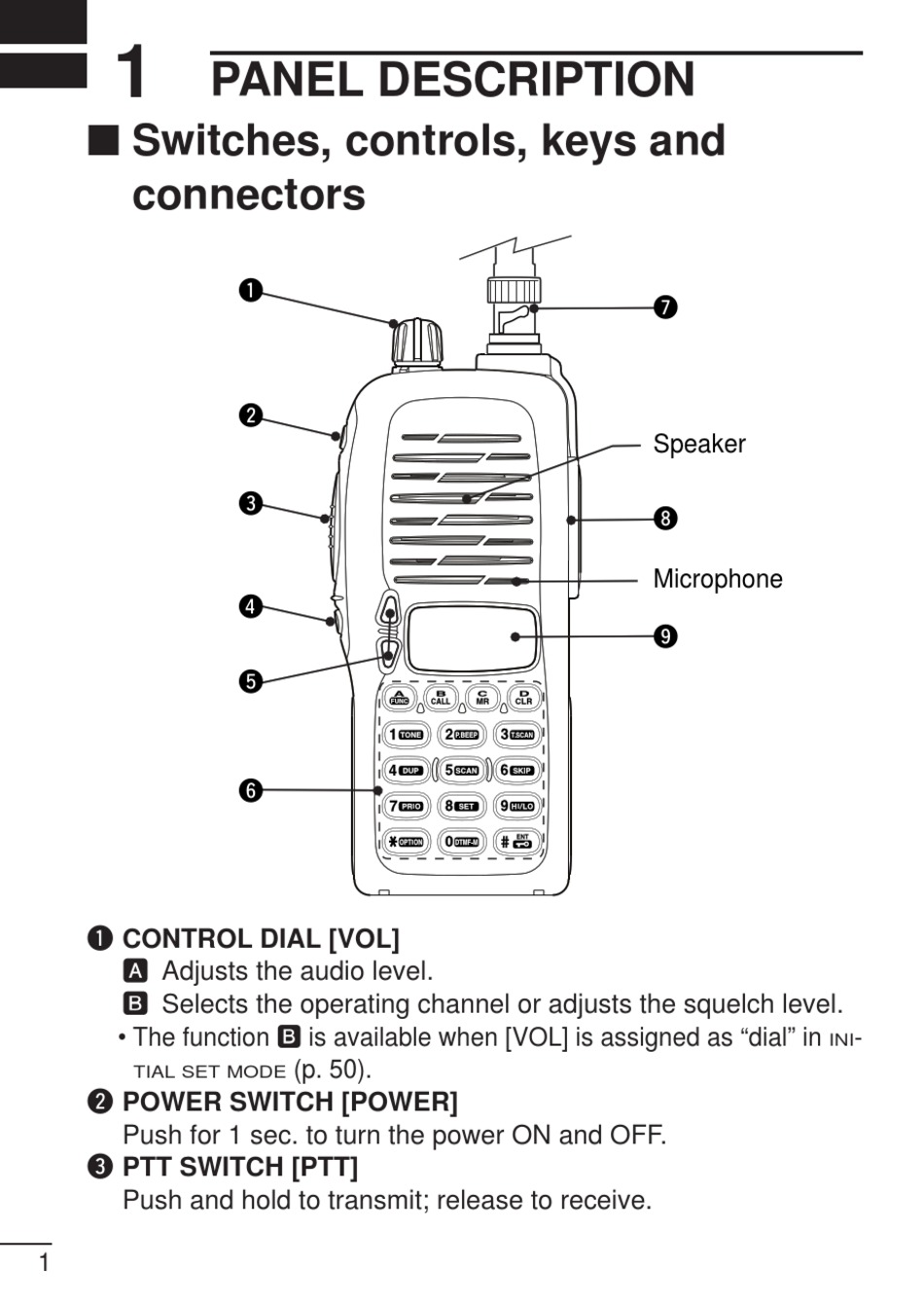

PANEL DESCRIPTION

Switches, controls, keys and
connectors
q CONTROL DIAL [VOL]
A Adjusts the audio level.
B Selects the operating channel or adjusts the squelch level.
• The function B is available when [VOL] is assigned as "dial" in
TIAL SET MODE
w POWER SWITCH [POWER]
Push for 1 sec. to turn the power ON and OFF.
e PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
1
q
w
e
r
t
y
(p. 50).
u
Speaker
i
Microphone
o
-
INI
