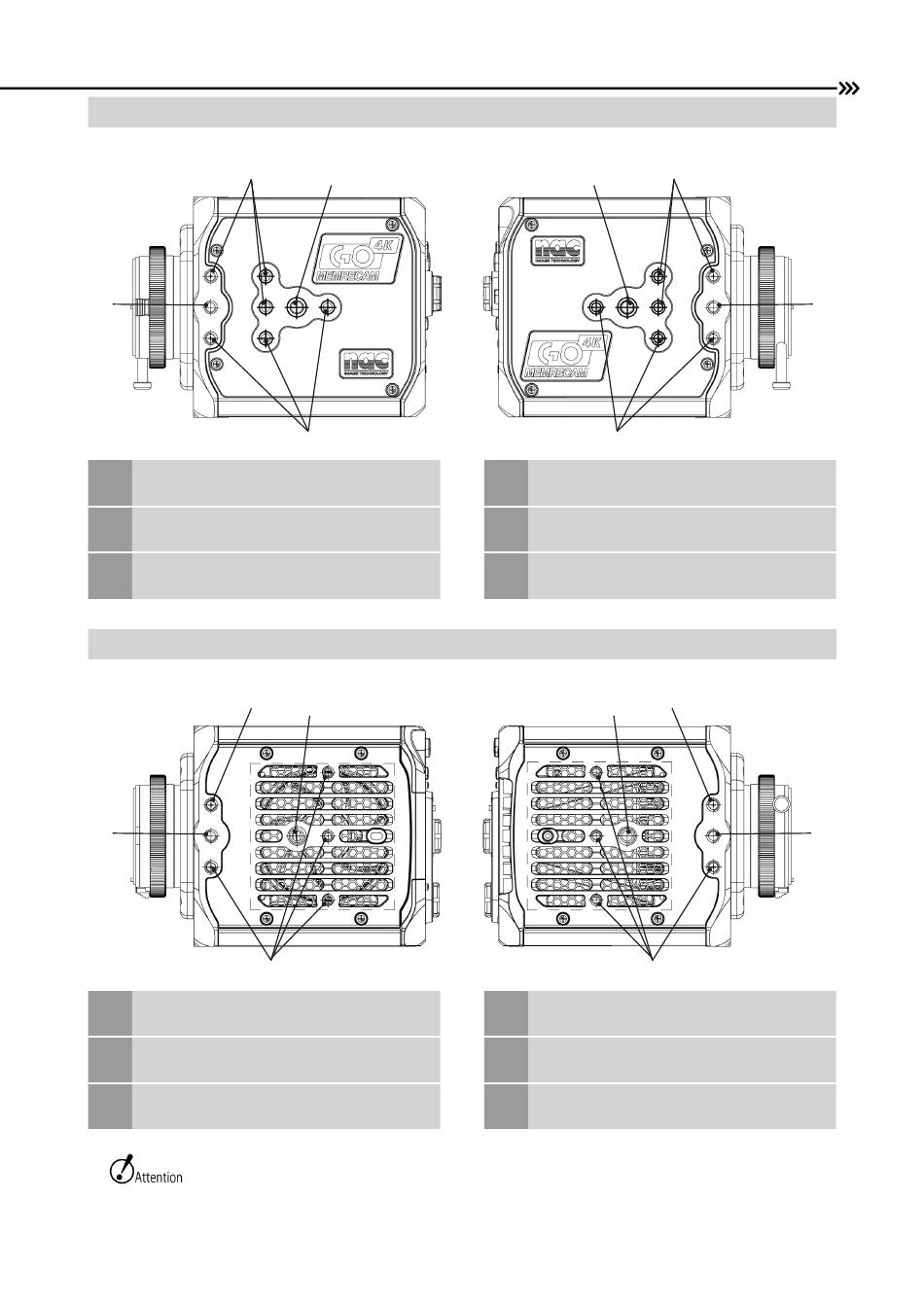

Left and right sides of the camera
2
1
Screw hole (1 hole 1/4-20UNC depth
1
9mm)
Screw hole (6 holes 1/4-20 depth
2
5.5mm)
Screw hole (1 hole 3/8-16UNC depth
3
8mm)
Top and bottom of the camera
2
1
2
Screw hole (1 hole 1/4-20UNC depth
1
9mm)
Screw hole (5 holes 1/4-20 depth
2
5.5mm)
Screw hole (1 hole 3/8-16UNC depth
3
5.5mm)
Do not insert screws beyond the depth of the screw holes as this may cause
malfunction.
(00519)
