NAC Image Technology MEMRECAM fx K4 Operation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

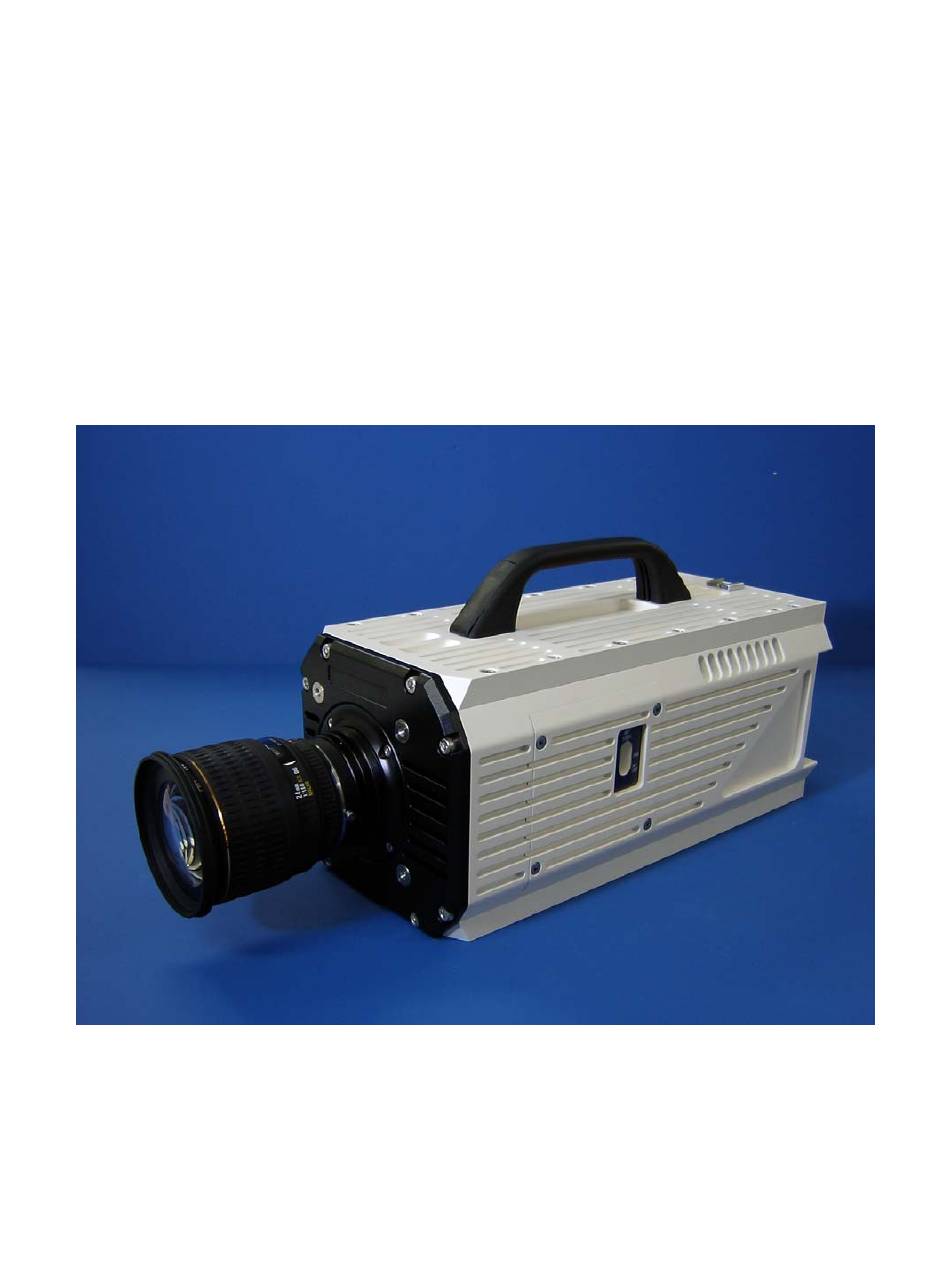

Operation Manual
NAC MEMRECAM fx K4
NAC Image Technology
August 2005

Advertisement

loading
Need help?

Need help?

Do you have a question about the MEMRECAM fx K4 and is the answer not in the manual?

Questions and answers

Related Manuals for NAC Image Technology MEMRECAM fx K4

Summary of Contents for NAC Image Technology MEMRECAM fx K4

  • Page 1 Operation Manual NAC MEMRECAM fx K4 NAC Image Technology August 2005...
  • Page 2 MEMRECAM fx Basic Operation (800075)A...

  • Page 3: Basic Operation

    2. Basic Operation This section describes basic connectivity and record/playback operation of the MEMRECAM fx. The MEMRECAM fx supports five connection methods between the control computer and the DRP (Digital Recording Processor). 1. CF (Compact Flash) card storage media (Record function only) 2.
  • Page 4 MEMRECAM fx System Connectivity and Applications 2.1.1 CF (Compact Flash) card storage media Connect as shown in Diagram 1 before turning the MEMRECAM fx power on. The CF (Compact Flash) card is used after images have been recorded. Diagram １ CF Card application The MEMRECAM fx supports CF (Compact Flash) card or a CF hard disk (micro drive) storage media to save previously photographed images and setup data (record and trigger settings).
  • Page 5 2.1.2 Ethernet connectivity to a single MEMRECAM fx DRP Connect as shown in Diagrams 2 and 3 before turning the MEMRECAM fx power on. For proper operation ensure that the MEMRECAM fx DRP is configured for Ethernet connectivity (Refer to Section 3, System Setup).
  • Page 6 2.1.3 Fibre Channel connectivity to a single MEMRECAM fx DRP Connect as shown in Diagrams 4, 5 and 6 before turning the MEMRECAM fx power on. For proper operation ensure that the MEMRECAM fx DRP is configured for Fibre Channel connectivity (Refer to Section 3, System Setup).
  • Page 7 The optional Media Interface Adapter (MIA) system can be used where distances are greater than 45m (using FC Hub). Diagram 6 Direct Fibre Channel Connectivity to a Single MEMRECAM fx DRP (Fiber Optic) Diagram 7 Fibre Channel Connectivity via optional Fibre Channel Hub to a single MEMRECAM fx DRP (Fiber Optic) The MIA system can transmit data using either Single Mode (SM) or Multi Mode (MM) fiber with SC connectors.
  • Page 8 2.1.4 connectivity to multiple MEMRECAM fx DRP’s Ethernet Connect as shown in Diagram 8 before turning the MEMRECAM fx power on. For proper operation ensure that the MEMRECAM fx DRP is configured for Ethernet connectivity (Refer to Section 3, System Setup). E th ern et R em o te C a b l e O p ti o n a l M EM R EC A M...
  • Page 9 2.1.5 Fibre Channel connectivity to multiple MEMRECAM fx DRP Connect as shown in Diagrams 9 and 10 before turning the MEMRECAM fx power on. For proper operation ensure that the MEMRECAM fx DRP is configured for Fibre Channel connectivity (Refer to Section 3, System Setup).
  • Page 10 The optical Master and Slave M-HUB system can be used for distances greater than 30m between the Master M-HUB and the MEMRECAM fx DRP. F c R em o te C a b l e (C O P P E R ) O p ti o n a l S l a v e M -H U B M EM R EC A M...
  • Page 11 Basic MEMRECAM fx Operation 2.2.1 Power As shown in Diagram 11, connect the AC adapter, J-PAD2 remote control and the optional LCD Viewfinder (or optional Image Converter with compatible monitor) to the MEMRECAM fx DRP and turn the power switch to the ON position. Diagram 11 During the MEMRECAM fx startup sequence a long beeping sound will be heard as the auto diagnostics are conducted.
  • Page 12 READY Mode ■ Next, the Startup screen 2 will appear in the LCD Viewfinder screen. The MEMRECAM fx displays a test READY image and the IBOX will appear in mode. The IBOX operation will be described later. It displays the current MEMRECAM fx record/playback settings. These settings can also be changed with using the IBOX.

  • Page 13: Initial Recording

    2.2.2 Initial Recording Operation of the MEMRECAM fx DRP is done using the Rear Camera Control Touch Pad or the J-PAD2 remote control keys. The Rear Camera Control Touch Pad and the J-PAD2 cannot be used at the same time. When the J-PAD2 is connected, key operation is done from the remote control pad. When the J- PAD2 is disconnected, the Rear Camera Control Touch Pad keys become effective.
  • Page 14 VIEW Mode ■ VIEW READY mode. Press the VIEW/ARM To enter the mode, the MEMRECAM fx DRP must be in VIEW key once to enter the mode. A confirmation beep will sound. The Rear Camera Control Touch Pad and the J-PAD2 remote control VIEW LED (continuous blue) will light. After approximately three seconds, the IBOX Status display will change from READY VIEW...
  • Page 15 Mode ■ VIEW mode press the VIEW/ARM key once to enter the From the mode. A confirmation beep will sound. The Rear Camera Control Touch Pad and the J-PAD2 remote control ARM LED changes from continuous blue to flashing red. After approximately three seconds, the IBOX Status display will change VIEW from mode display...
  • Page 16 2.2.3 Playback of Recorded Images PLAY Mode ■ READY When recording is complete, the MEMRECAM fx returns to mode and the image is ready for playback (as a default, the image will begin to play from the trigger frame). Press the PLAY key once to PLAY enter the mode.
  • Page 17 ■ Setting Playback Range To save time during playback and disk space when storing images, set the playback range to select only READY the area of interest. In mode, navigate to the first frame of the desired playback range. While holding down the STOP key, press the REV STEP key.
  • Page 18 2.2.4 Turning Power Off READY READY While in mode, turn the MEMRECAM fx POWER switch to the OFF position (if not in mode press the STOP key). The current record/playback settings are saved for the next session. Caution When using a control computer with Smart Capture or fx Link software, close the programs first before turning the DRP power off.
  • Page 19 MEMRECAM fx Setup (800075)A...
  • Page 20 3. MEMRECAM fx Setup Before beginning to setup the MEMRECAM fx DRP record and playback options, ensure that the AC adapter, the J-PAD2 remote control and the optional LCD View Box, LCD Viewfinder or Image Converter (with compatible monitor) are connected to the MEMRECAM fx DRP. The power switch should be in the ON position, after a few seconds the Startup Screen 2 appears and the IBOX Status box indicates that READY the DRP is in...
  • Page 21 3.1.1 IBOX and Popup Menu The MEMRECAM fx record and playback settings can be changed using the IBOX main display or the Popup Menu. The color of the IBOX display boxes changes depending on the DRP mode. ■ The following keys are used to navigate and change the MEMRECAM fx IBOX settings, LEFT/RIGHT keys (arrow keys) UP/DOWN keys (arrow keys) MENU...
  • Page 22 ID box ■ In the ID box, the MEMRECAM fx identification number can be set. It can be any number between 0 and 127. This identification number setting allows the user to easy identify the source DRP after the images are recorded.
  • Page 23 2) To modify the settings from within the ID box press the SET key. Use the UP/DOWN keys to enter any unique number between 0 and 128. Once finished making changes press the SET key twice (when pressing it once, a white border surrounds the box [as shown below] allowing for it to be repositioned on the screen using the arrow keys) to lock the value and return to the IBOX main display.
  • Page 24 Scene box ■ The Scene box displays the current scene number. It can be any number between 0 and 65535 and automatically increments on each recording. The scene number can be set to begin counting at any particular number or reset to zero. To set the scene numbers select the Scene box using the LEFT/RIGHT keys while in VIEW mode.
  • Page 25 2) To modify the settings from within the Scene box press the SET key. Use the UP/DOWN keys to enter any unique number between 0 and 65535. Once finished making changes press the SET key twice (when pressing it once, a white border surrounds the box [as shown below] allowing for it to be repositioned on the screen using the arrow keys) to lock the value and return to the IBOX main display.
  • Page 26 Trigger box ■ The Trigger box displays the current trigger setting. The percentage of memory used as a buffer during recording is determined by the trigger setting. There are five trigger settings, START The trigger point is about 5% after the top of memory CENTER The trigger point is at the center of the memory.
  • Page 27 1) To access the Trigger box Popup Menu press the MENU key once. In the popup menu, use the UP/DOWN keys to select the TRIGGER row and press the SET key to enable editing. Using the LEFT/RIGHT keys select the desired trigger setting. Press the SET key to lock the value and return to the Popup Menu.
  • Page 28 Zoom box ■ The Zoom box displays the current magnification setting (x1, x2, and x4). To modify the magnification settings select the Zoom box using the LEFT/RIGHT keys while in READY VIEW modes. IBOX display screen 1) To access the Zoom box Popup Menu press the MENU key once. In the popup menu, use the UP/DOWN keys to select the ZOOM row and press the SET key to enable editing.
  • Page 29 2) To modify the settings from within the Zoom box press the SET key. Use the UP/DOWN keys to select the desired magnification value. Once finished making changes press the SET key twice (when pressing it once, a white border surrounds the box allowing for it to be repositioned on the screen using the arrow keys) to lock the value and return to the IBOX main display.
  • Page 30 Scroll box ■ The Scroll box displays the horizontal and vertical position of the magnified section of the image shown while using Zoom. The X and Y coordinate originate from the upper left hand corner of the display. By changing the coordinates in the Scroll box the user can navigate around the image. To modify the coordinate settings select the Scroll box using the LEFT/RIGHT keys while in READY VIEW...
  • Page 31 2) To navigate the image from within the Scroll box press the SET key. Use the UP/DOWN and LEFT/RIGHT keys to navigate around the image (by holding down arrow keys the coordinates change at increasing speed). Once finished making changes press the SET key twice (when pressing it once, a white border surrounds the box allowing for it to be repositioned on the screen using the arrow keys) to lock the value and return to the IBOX main display.
  • Page 32 Play box ■ The Play box displays the current playback speed in frames per second. The image playback can be forward or reverse. Forward playback increments in frames per second, 1920 Reverse playback increments in frames per second, -1920 -960 -480 -240 -120...
  • Page 33 1) To access the Play box Popup Menu press the MENU key once. In the popup menu, use the UP/DOWN keys to select the Play Rate row and press the SET key to enable editing. Using the LEFT/RIGHT keys select the desired playback speed setting. Press the SET key to lock the value and return to the Popup Menu.
  • Page 34 Rec box ■ The Rec box displays the current recording speed and image resolution. To modify the record settings select the Rec box using the LEFT/RIGHT keys while in VIEW mode. IBOX display screen 1) To access the Rec box Popup Menu press the MENU key once. In the popup menu, use the UP/DOWN keys to select the Frame Rate row and press the SET key to enable editing.
  • Page 35 2) To modify the record settings from within the Scroll box press the SET key. Use the UP/DOWN keys to modify the recording speed. The LEFT/RIGHT keys change the image resolution (notice changes in the small square located left of the Rec label). Frame size: 512 (512x512) In the case of 4000pps or less, it is 512x512.
  • Page 36 Shutter box ■ The Shutter box displays the current electronic shutter setting. To modify the electronic shutter settings select the Shutter box using the LEFT/RIGHT keys while in VIEW mode. IBOX display screen 1) To access the Shutter box Popup Menu press the MENU key once. In the popup menu, use the UP/DOWN keys to select the Frame Rate row and press the SET key to enable editing.
  • Page 37 2) To modify the electronic shutter settings from within the Shutter box press the SET key. Use the UP/DOWN keys to modify the shutter speed. Once finished making changes press the SET key twice (when pressing it once, a white border surrounds the box [as shown below] allowing for it to be repositioned on the screen using the arrow keys) to lock the value and return to the IBOX main display.
  • Page 38 SEG box ■ The SEG box displays the segment memory. 1) The segment can be changed referring to the segment number shown on the screen. 2) Pressing the LEFT/RIGHT keys causes the system to enter the IBOX selection mode. (800075)A 3-19...
  • Page 39 3) Pressing the LEFT/RIGHT keys goes to the IBOX. 4) Pressing the LEFT key again calls up the segment IBOX. (800075)A 3-20...
  • Page 40 5) In the segment IBOX, pressing the SET key enters the segment changing mode (the segment number indication box turns black). In this mode, pressing the UP/DOWN keys changes the segment. 6) Change the segment No. to 2. (800075)A 3-21...
  • Page 41 7) Change the segment No. to 3. 8) Change the segment No. to 4. Note: Refer to Segment Recording under Section 4.1.5, Chapter 4. (800075)A 3-22...
  • Page 42 Comment box ■ The Comment box displays the comment that has been entered through Smart Capture, fx Link (refer to the instruction manual for Smart Capture Software). In the absence of the comment, only the outer frame is on display. IBOX display screen Comment box Popup Menu VIEW...
  • Page 43 IBOX display screen Comment box Popup Menu READY 2) To set the comment while in mode, select the Comment IBOX using the LEFT/RIGHT keys. To access the Comment box Popup Menu, press the MENU key once. In the popup menu, use the UP/DOWN keys to select the COMMENT row and press the SET key to enable editing.
  • Page 44 Date, Time box ■ The Date, Time box displays the date and time-of-day. IBOX display screen Date, Time box Popup Menu VIEW 1) To set the current date and time-of-day while in mode, select the Date, Time IBOX using the LEFT/RIGHT keys. To access the Date, Time box Popup Menu, press the MENU key once.
  • Page 45 IBOX display screen Date, Time box Popup Manu 2) When the Date, Time IBOX is displayed by pressing the LEFT/RIGHT keys in the READY mode, Trigger Time and the date and time-of-day to which the duration from the entry of Trigger (Frame0000000) to the playback time has been added are displayed.

  • Page 46: Setup Menu

    Setup Menu The MEMRECAM fx setup menus allow the user to fully customize the record, playback and system settings. There are three setup menus as follows. ■ RECORDING MENU (Record settings) Used to fully customize the record settings including frame rate, frame size and trigger settings. Enter the RECORDING MENU by pressing the MENU button while in VIEW mode.
  • Page 47 Caution Combined use of the MEMRECAM operation panel and the J-PAD2 key is not permitted. When J-PAD2 has been connected to MEMRECAM fx, key operation from J-PAD2 alone is permitted. On the other hand, when J-PAD2 is not connected, keys may be actuated at the MEMRECAM fx operation panel.
  • Page 48 SCENE No. ■ The Scene No. row displays the current scene number. It can be any number between 0 and 65535 and automatically increments on each recording. The scene number can be set to begin counting at any particular number or reset to zero. In the RECORDING MENU, use the UP/DOWN keys to select the SCENE No.
  • Page 49 TRIGGER ■ The TRIGGER row displays the current trigger setting. The percentage of memory used as a buffer during recording is determined by the trigger setting. There are five trigger settings, START The trigger point is about 5% after the top of memory CENTER The trigger point is at the center of the memory.

  • Page 50: Frame Rate

    FRAME RATE ■ The FRAME RATE row displays the current recording speed in frames per second. In the RECORDING MENU, use the UP/DOWN keys to select the FRAME RATE row and press the SET key to enable editing. Using the LEFT/RIGHT keys select the desired recording speed setting. Press the SET key to confirm the setting.
  • Page 51 SHUTTER ■ The SHUTTER row displays the current electronic shutter setting. In the RECORDING MENU, use the UP/DOWN keys to select the SHUTTER row and press the SET key to enable editing. Using the LEFT/RIGHT keys select the desired shutter speed (when selecting the µ...
  • Page 52 GAIN ■ The GAIN feature enhances light sensitivity electronically. This is a post-processing enhancement. When an image is recorded, the raw data in memory is not affected by this setting. The setting can be changed later at playback. Factory Setting Increases light sensitivity by one lens stop compared to 0dB 12dB Increases light sensitivity by two lens stops compared to 0dB...

  • Page 53: White Balance

    WHITE BALANCE (Color Camera only MENU) ■ The WHITE BALANCE row displays the current white balance setting of a color image. This is a post- processing enhancement. When an image is recorded, the raw data in memory is not affected by this setting.
  • Page 54 ENHANCE ■ The ENHANCE row displays the current edge sharpness setting. This is a post-processing enhancement. When an image is recorded, the raw data in memory is not affected by this setting. The setting can be changed later at playback. No sharpness enhancement NORMAL Standard sharpness enhancement (Factory setting)
  • Page 55 GAMMA ■ The GAMMA row displays the current gamma correction (gradation) setting. This is a post-processing enhancement. When an image is recorded, the raw data in memory is not affected by this setting. The setting can be changed later at playback. No gamma correction (Gamma is about 1) Low gamma correction (Factory setting) NORMAL...
  • Page 56 CHROMA (Color Camera only MENU) ■ The CHROMA row displays the current color intensity (brilliance) setting. The higher the adjustment, the greater is the color intensity. This is a post-processing enhancement. When an image is recorded, the raw data in memory is not affected by this setting. The setting can be changed later at playback. Set at 0% (Black/White image) Set at 50% Set at 100% (Standard color intensity) (Factory setting)
  • Page 57 KNEE ■ The KNEE feature suppresses bright areas enhancing image definition. This is a post-processing enhancement. When an image is recorded, the raw data in memory is not affected by this setting. The setting can be changed later at playback. Bright areas exceeding the fixed level will be clipped (No knee correction) Bright areas up to about 1-2 times the fixed level will be suppressed (Factory setting)
  • Page 58 EST MODE ■ In the EST mode, only one frame of image can be recorded by the any timing signal that is synchronized with the external exposure signal. The system enters an ordinary continuous recording mode (factory set prior to shipment).

  • Page 59: Low Light Mode

    LOW LIGHT MODE ■ The LOW LIGHT MODE allows for lens adjustments (e.g. focus) when using high frame rates and high shutter speeds. It may also be used to make such adjustments with supplemental lighting turned off. When in LOW LIGHT MODE the shutter is normally open. Depending on the brightness of the subject, the recording speed can be adjusted to 100, 250, 500, 1000 frames per second.
  • Page 60 3.2.2 Termination of operation with RECORDING MENU Upon completion of necessary setting required for recording on RECORDING MENU : (1) Select < RECORDING MENU > that in located at top of menus and press the SET key; or (2) Press the STOP key. Following either of the foregoing steps terminates the operation with RECORDING MENU and the VIEW mode is re-entered.
  • Page 61 GAIN ■ The GAIN feature enhances light sensitivity electronically. This is a post-processing enhancement. When the image was recorded, the raw data in memory was not affected by this setting. The setting can now be changed at playback. Factory Setting Increases light sensitivity by one lens stop compared to 0dB 12dB Increases light sensitivity by two lens stops compared to 0dB...
  • Page 62 WHITE BALANCE (Color Camera only MENU) ■ The WHITE BALANCE row displays the current white balance setting of a color image. This is a post- processing enhancement. When the image was recorded, the raw data in memory was not affected by this setting.
  • Page 63 ENHANCE ■ The ENHANCE row displays the current edge sharpness setting. This is a post-processing enhancement. When the image was recorded, the raw data in memory was not affected by this setting. The setting can now be changed at playback. No sharpness enhancement NORMAL Standard sharpness enhancement (Factory setting)
  • Page 64 GAMMA ■ The GAMMA row displays the current gamma correction (gradation) setting. This is a post-processing enhancement. When the image was recorded, the raw data in memory was not affected by this setting. The setting can now be changed at playback. No gamma correction (Gamma is about 1) Low gamma correction (Factory setting) NORMAL...
  • Page 65 CHROMA (Color Camera only MENU) ■ The CHROMA row displays the current color intensity (brilliance) setting. The higher the adjustment, the greater is the color intensity. This is a post-processing enhancement. When the image was recorded, the raw data in memory was not affected by this setting. The setting can now be changed at playback. Set at 0% (Black/White image) Set at 50% Set at 100% (Standard color intensity) (Factory setting)
  • Page 66 KNEE ■ The KNEE feature suppresses bright areas enhancing image definition. This is a post-processing enhancement. When the image was recorded, the raw data in memory was not affected by this setting. The setting can now be changed at playback. Bright areas exceeding the fixed level will be clipped (No knee correction) Bright areas up to about 1-2 times the fixed level will be suppressed (Factory setting)
  • Page 67 MEM SEGMENT ■ Call up the MEM SEGMENT MENU and press the SET key. The following screen should appear. After selecting the desired segment row, press the SET key to play back the recorded image. TOP MENU – MEM SEGMENT MEMORY SEGMENT Sub Menu Note: Depending on the segment size, the data appearing on sub menu screen varies.
  • Page 68 SYSTEM MENU ■ Enters the SYSTEM MENU, refer to section 3.2.2 for more details. TOP MENU - SYSTEM MENU SYSTEM MENU ■ Enters the CF save MENU (Compact Flash), refer to section 3.4 for more details. TOP MENU – CF save MENU (800075)A 3-49...

  • Page 69: System Menu Setup

    3.2.4 Termination of operation with TOP MENU To terminate operation with TOP MENU, press either the MENU or STOP key. 3.2.5 SYSTEM MENU Setup Overall MEMRECAM fx system options are administered in the SYSTEM MENU . Enter the SYSTEM MENU by pressing the RIGHT key while in the TOP MENU – SYSTEM MENU row. TOP MENU The SYSTEM MENU lettering is yellow in color.
  • Page 70 ■ In the ID row, the MEMRECAM fx identification number can be set. It can be any number between 0 and 127. This identification number setting allows the user to easily identify the source DRP after the images are recorded. In the SYSTEM MENU, use the UP/DOWN keys to select the ID row and press the SET key to enable editing.
  • Page 71 DATE, TIME ■ In the DATE, TIME row, the normal date and time stamp can be set. In the SYSTEM MENU, use the UP/DOWN keys to select the DATE, TIME row and press the SET key to enable editing. Use the UP/DOWN keys to enter the current year and press the SET key to confirm the setting.
  • Page 72 CAFM DISPLAY ■ In the CAFM DISPLAY row, the CAFM (Camera Alignment Fiducial Mark) can be turned ON or OFF. The CAFM is used for adjusting the camera before recording. The CAFM cross is not displayed in a previously recorded image. In the SYSTEM MENU, use the UP/DOWN keys to select the IBOX DISPLAY row and press the SET key to enable editing.
  • Page 73 FRAME DISPLAY ■ The IBOX Frame counter can be set to display its contents in frame numbers, time or percentage of memory used / remaining. The desired setting can be selected in the FRAME DISPLAY row. Frame Counter set to display frame numbers Time Counter set to display minutes and seconds Memory %...
  • Page 74 D-VGA VIDEO ■ In the D-VGA VIDEO row, the D-VGA video output port can be turned ON or OFF. In the SYSTEM MENU, use the UP/DOWN keys to select the D-VGA VIDEO row and press the SET key to enable editing. Use the LEFT/RIGHT keys to turn the D-VGA video output port ON or OFF. Press the SET key to confirm the setting.
  • Page 75 Warning Settings ■ In the Warning Settings row, the data related to warning can be set. SYSTEM MENU – Warning Settings Pressing the SET key calls up the following screen. This screen is used to turn ON or OFF an alarm buzzer when the input power voltage from the battery is too low or too high.
  • Page 76 IBOX Settings ■ The IBOX Settings row opens the IBOX Settings Sub Menu. In the IBOX Settings Sub Menu each display box can be individually turned ON or OFF. In the SYSTEM MENU, use the UP/DOWN keys to select the IBOX Settings row and press the RIGHT key to enter the Sub Menu.

  • Page 77: Event Frame

    TRIGGER MENU ■ The TRIGGER MENU row opens the trigger settings Sub Menu (Refer to External Trigger Input, Section 4.2.2). The TRIGGER I/F defines the external trigger signal type. TRIGGER I/F Voltage : Contact or 5V CMOS (Schmidt trigger) input Current : Current loop trigger input EVENT FRAME When feature is ON, an event mark is recorded at every external trigger...
  • Page 78 In the TRIGGER MENU, use the UP/DOWN keys to select the desired row and press the SET key to enable editing. Use the LEFT/RIGHT keys to select the desired setting. Press the SET key to confirm the setting. Once finished making changes press the LEFT key to return to the SYSTEM MENU. IBOX Settings Sub Menu (800075)A 3-59...
  • Page 79 SYSTEM SETUP ■ The SYSTEM SETUP row opens the SYSTEM SETUP Sub Menu. Here camera data , memory segment size and the network connection type can be specified to be either Fibre Channel (FC-AL) or Ethernet (100Base-T) In the SYSTEM MENU, use the UP/DOWN keys to select the SYSTEM SETUP row and press the RIGHT key to enter the Sub Menu.
  • Page 80 • CAMERA DATA When the camera data is to be re-acquired after exchange of the camera head, press the UP/DOWN keys to select the CAMERA DATA row and then press the SET key. (For details refer to Section 3.5.) (800075)A 3-61...
  • Page 81 • SEGMENT SIZE Use the UP/DOWN keys to select the SEGMENT SIZE row and use the LEFT/RIGHT keys to select the desired size. When an attempt is made to exit this item, the confirmation window as shown at left appears. Here, select the CONTINUE button and press SET .
  • Page 82 • Network To change the network, select the Network row using the UP/DOWN keys. Press the LEFT/RIGHT keys to select FC-AL or Ethernet. When the new setting is to be reflected, it is necessary to select the REBOOT row using the UP/DOWN keys and press the SET key to reboot the system.

  • Page 83: Information Sub Menu

    INFORMATION ■ The INFORMATION row opens the information Sub Menu. Here additional system information such as model type, CID, IP address, Camera Head Number and memory size of the MEMRECAM fx DRP is shown. In the SYSTEM MENU, use the UP/DOWN keys to select the INFORMATION row and press the RIGHT key to enter the Sub Menu.
  • Page 84 User Settings Storage The user settings entered in the MEMRECAM fx RECORDING MENU, TOP MENU and SYSTEM MENU are saved in the internal memory. All settings from the previous session are loaded when the MEMRECAM fx power is turned ON. Saving Images to Compact Flash (CF) Storage Media After an image is recorded and reviewed, it can be stored using Compact Flash (CF) Storage Media.
  • Page 85 2. Enter the TOP MENU by pressing the MENU button while in READY mode. Using the UP/DOWN keys, select the CF save MENU row and press the SET key to enter the Sub Menu. TOP MENU – CF save MENU Enter the TOP MENU by pressing the MENU button while in READY mode.
  • Page 86 3. In the CF save MENU Sub Menu, use the UP/DOWN keys to select the MCFF SAVE row and press the SET key to start saving. CF save MENU – MCFF SAVE 4. Please wait while the image data is saved to CF. CF save MENU –...
  • Page 87 MEMRECAM fx Recording (800075)A...
  • Page 88 4. MEMRECAM fx Recording Memory Ring Buffer The MEMRECAM fx semiconductor memory is structured as a ring buffer. In general, the images are saved to the ring buffer in series from the initial step to final step. Since the memory is comprised of a single ring, it greatly enhances its performance.
  • Page 89 ■ The START, CENTER are predefined trigger settings. The trigger setting determines how much of the Buffer Ring is being refreshed while in mode. When the trigger input is received the images are saved to the remainder of the memory Buffer Ring. Recording stops once the Buffer Ring has START circled.
  • Page 90 4.2.2 External Trigger Input Use pins A and B for Contact Closure, 5V CMOS (Schmidt / Negative) or Current Loop trigger input. For Photo Isolate (Positive) trigger input use pins C and D. ■ Contact Closure A contact closure circuit triggers the DRP to complete the recording session. ■...
  • Page 91 ■ Photo Isolate (Positive) The input impedance between pins C and D is approximately 1500Ω. A voltage value between 5 and 32V will trigger the DRP and complete the recording session. ■Trigger Input Circuit (800075)A...
  • Page 92 4.2.3 Trigger Connector The Amphenol MS3116F8-4 four pin circular MIL connector is used to terminate the external trigger signal input cable. Use pins A and B for Contact Closure, 5V CMOS (Schmidt / Negative) or Current Loop trigger input. For Photo Isolate (Positive) trigger input use pins C and D. 1) Disassemble the trigger connector included as follows.
  • Page 93 Storing data while recording Closed caption system (Image and data are separately recorded, but are displayed jointly.). The following sets of data are recorded in the system controller at input of trigger: scene number, trigger mode setting, frame rate, frame size, shutter, recorded image quality setting, recording comments, and trigger date/time-of-day.
  • Page 94 Memory segment selection setting ■ Set the memory segment selection using the menu: [TOP MENU < MEM SEGMENT] Recording system by memory segment ■ The following recording systems are selectable from one memory segment to another: - Event frame recording - Burst recording - Multi-trigger recording In cases where all the foregoing recording systems have been selected at the same time, their priorities...
  • Page 95 Event frame recording The EVENT FRAME feature records a mark at the particular frames where an external trigger signal is received. The first trigger signal is recorded as the original trigger frame. All trigger signals following the original are marked as event trigger frames for future reference. When the EVENT FRAME feature is ON a capital E is shown in the IBOX between TRIGGER Time and FRAME.
  • Page 96 Burst recording Recording is placed under control by sending the burst recording signal to the external trigger input connector of MEMRECAM fx. Maximum recording block number in (16). When burst recording is to be done, set the MEMRECAM fx trigger to BURST and, after initiation of ARM, turn ON/OFF the burst recording signal.
  • Page 97 Main burst recording functions (For further details see the timing charts on the pages that ■ follow.) 1. The burst recording signal ON/OFF check is made at 1-ms intervals. When the relationship between the recording time and the recording frame image is to be accurately recorded, separation between input of the burst recording ON signal and that of the next burst recoding ON signal should be not smaller than 5 ms.
  • Page 98 Burst recording timing ■ 1. Recording at 100 to 500pps (typically at 500pps) Image recorded Image not recorded (Example 1) Frame VD (/FVD) Internal interruption signal for burst recording (1 ms) Bold lines denote effective burst signals. Burst signal Frame recorded Block 1 Block 2 Burst recording block...
  • Page 99 2. Recording at 1000pps Image recorded Image not recorded (Example 1) Frame VD (/FVD) Internal interruption signal for burst recording (1 ms) Bold lines denote effective burst signals. Burst signal Frame recorded Block 1 Block 2 Burst recording block (Example 2) Frame VD (/FVD) Internal interruption signal for burst recording (1 ms)
  • Page 100 3. Recording at 2000pps or more (Typically 3000pps) Image recorded Image not recorded (Example 1) Frame VD (/FVD) Internal interruption signal for burst recording (1 ms) Bold lines denote effective burst signals. Burst signal Frame recorded Block 1 Burst recording block (Example 2) Frame VD (/FVD) Internal interruption signal...
  • Page 101 Frame number for burst recording ■ Frame number 0 is assigned to the image that is recorded when the burst recording signal has been turned ON for the first time. Subsequently, frame numbers are successively given to the images in order that they are recorded.
  • Page 102 Selection of burst recording mode ■ Step 1 Press the MENU key in the VIEW mode to call up RECORDING MENU . Step 2 Select to the TRIGGER row using the UP/DOWN key. Step 3 LEFT/RIGHT Using keys, select BURST . Press the MENU key to return to the VIEW mode.
  • Page 103 Selection of burst recording mode using IBOX ■ Step 1 Press the LEFT/RIGHT keys to enter the IBOX selection mode. Step 2 Press the SET key to enter the trigger setting change mode (the area inside the Trigger setting box turns black). Step 3 Using the UP/DOWN keys, change the Trigger setting to BURST .
  • Page 104 In relation to playback in the burst recording mode ■ Explanation 1 Press the VIEW/ARM key to change the VIEW mode to the ARM mode. Then, a letter B appears in the Frame IBOX on the upper right-hand corner of the screen, indicating that the current trigger setting is in the BURST mode.
  • Page 105 Multi-trigger recording Each selected memory segment is divided into 1 to 16 blocks (these can be incremented or decremented in units of 1) and recording proceeds while blocks are automatically changed one by one in response to each trigger signal. When multi-trigger recording is to be done, set the number of blocks to 2 or more (1 in normal state) and input the trigger after the onset of ARM.
  • Page 106 Main functions of multi-trigger recording ■ 1. As far as multi-trigger recording is concerned, there are periods between recording blocks during which recording cannot be done. Therefore, blocks must be spaced between them for at least the following periods (space of time between the end of a given one-block recording and the beginning of recording images into the next block) before recording is initiated so as to accurately record the relationship between the recording time and the recording frame image.
  • Page 107 Setting of the number of blocks for multi-trigger recording ■ Step 1 Press the SET key with TOP MENU > SYSTEM MENU > TRIGGER MENU. Step 2 Use the UP/DOWN keys to select the Number of Blocks row and press the SET key.
  • Page 108 Setting of multi-trigger recording mode ■ Step 1 Press the SET key with TOP MENU > SYSTEM MENU > TRIGGER MENU Step 2 Use the UP/DOWN keys to select the Recording Mode row Step 3 Using the UP/DOWN keys, select the recoding mode and set it.
  • Page 109 In relation to playback for multi-trigger recording ■ Explanation 1 Press the VIEW/ARM key to change the VIEW mode to the READY mode. Then, a letter and a numeral appear in the Frame IBOX on the upper right-hand corner of the screen. This indicates that the multi-trigger screen is now on display.
  • Page 110 Pressing the TRIGGER key in this mode initiates recording. Each time recording is done, the numeral appearing in the Frame IBOX on the upper right-hand corner of the screen increases until the preset number of blocks is reached. (However, the number continues to increase beyond the preset number of blocks when in the Continuous mode.) Explanation 3 When the multi-trigger-recorded images are being played back, pressing the TRIGGER key allows the...
  • Page 111 Exposure start signal input (EST MODE) This feature enables a desirably timed acquisition of a one-frame equivalent of image when an exposure start signal is received from an external source. In order to use this feature, it is required that the shooting speed be more than double the inverse of the shortest period of the exposure start signal.
  • Page 112 Interface circuit ■ 5VCMOSトリガー入力回路 5VMOS trigger input circuit EMIfilter TC7W14F 4pin To internal logic circuit 内部 posistor ロジック回路へ 2pin Explanation of limitations on timing ■ Exposure starts in response to the exposure start signal and lasts for the period which has been determined upon setup.
  • Page 113 Color Balance Operation 4.9.1 White Balance Whit Balance is a post-processing enhancement. When an image is recorded, the raw data in memory is not affected by this setting. The setting can be changed later at playback. There are six White Balance settings.
  • Page 114 4.9.2 Auto-Track White Balance (AWB) The Automatic White Balance function of the MEMRECAM fx employs a method where the corresponding color temperature is detected based on the signal of the image received. To match the proper white balance, it is necessary to extract the colorless data from the image signal. This is accomplished by integrating the entire image until it becomes colorless.
  • Page 115 MEMRECAM fx Troubleshooting (800075)A...
  • Page 116 5. MEMRECAM fx Troubleshooting When Not Functioning Normally The following are common troubleshooting practices when components are not functioning normally. Contact your retail outlet to perform maintenance when normal operation does not occur after following these instructions (refer to section 5.3 “Repair and Contact Information” ). 5.1.1 Does Not Startup Restart by reverting to factory settings.
  • Page 117 UP/DOWN keys to select the Reboot row and press the SET key to reboot the system. The system should startup normally and if the image remains, playback can be conducted in the same manner as immediately after recording. Save the images to the CF as soon as possible. If it does not startup normally, the images will be lost.
  • Page 118 MEMRECAM fx Options (800075)A...

  • Page 119: Overview And Features

    D-VGA LCD Viewfinder (D -LCD VF) D-LCD VF is the LCD unit that displays the digital image signal output from the D-VGA OUT port of the MEMRECAM fx with VGA resolution. 7.1.1 Overview and Features Since there is one cable for the video signal and power input, it is only possible to show video by connecting to the MEMRECAM fx main unit viewfinder connector.
  • Page 120 7.1.3 Exterior Diagram (800075)A...
  • Page 121 7.1.4 Installation and Connection to the MEMRECAM fx D-LCD VF Attach the bracket to the D -LCD VF as shown in Photo-3. Adjust the D-VGA LCD VF and bracket (after adjusting, tighten the screws.) Angle adjustment screw (after adjusting, tighten the screw.) Fix by turning the screw.
  • Page 122 7.1.5 D-LCD VF Specifications 1 Product Type MEMRECAM fx series 2 Input VGA (640 × 480) 1) Image format vertical synchronizing signal frequency: 59.94MHz horizontal synchronizing signal frequency: 31.468MHz 2) Signal cable pigtail construction: approx. 30cm in length (can be extended to 9m)* * 3 optional extension cables (H10963-3 3m cable) can be connected.
  • Page 123 D-VGA Conversion Unit This product is a unit to convert the digital image signal output from the MEMRECAM fx D-VGA OUT port into analog VGA and NTSC(PAL) signals. 7.2.1 Overview and Features ¦ Since there is one cable for the video signal and power input, it is only possible to connect it to the D-VG A OUT of the DRP unit to convert the image signal into analog VGA or NTSC (PAL) signals.
  • Page 124 7.2.3 Exterior Diagram 7.2.4 Installation and Connection to the MEMRECAM fx D-VGA Conversion Unit 1) Using the attachment fittings on the back of the D-VGA conversion unit, attach to the MEMRECAM fx shoe. 2) Connect the D-VGA conversion unit cable to the MEMRECAM fx D-VGA OUT connector. (insert above the cable plug connector white mark) attachment shoe D-VGA OUT Connector...
  • Page 125 Connect to the analog VGA multiscan monitor Connect to the television monitor VBS,S terminal. Caution When there is no VGA conversion unit VIDEO output, the MEMRECAM fx output settings may be OFF. Control using the MEMRECAM fx setup menu [TOP MENU] or the PC software [Smart Capture].
  • Page 126 7.2.5 D-VGA Conversion Unit Specifications 1 Product Type MEMRECAM fx series 2 Input VGA (640 × 480) 1) Image format vertical synchronizing signal frequency: 59.94MHz horizontal synchronizing signal frequency: 31.468MHz 2) Signal cable pigtail construction: approx. 25cm in length (can be extended to 9m)* * 3 optional extension cables (H10963-3 3m cable) can be connected.
  • Page 127 7 Ambient Conditions 1) Operating Temperature/Humidity 0 to 40°C, 30 to 80%RH (no condensation) 2) Storage Temperature/Humidity -10 to 60°C, 20 to 80%RH ( no condensation) 3) Electromagnetic Conformity EN61000-6-2 , EN50081 -2 , FCC Part15 Class "A" 4) G-force resistance 8 Limitations ¦...

  • Page 128: Overview Of Functions

    Memory Backup Unit 7.3.1 Overview This unit is the memory backup unit used for the MEMRECAM fx series. It is possible to store completely recorded images in the memory to combat unexpected power outages. 7.3.2 Overview of Functions ¦ When the power switch is OFF due to unexpected conditions after the completion of recording or the power cable has been disconnected, it is possible to protect the contents of the recorded image.
  • Page 129 7.3.3 Components The memory backup unit has the following components. 1. Standard 1) 4H2023 Memory Backup Unit (Z0-912) * This unit is an option included at the factory. 2. Options 2) 582865 Backup battery replacement * Replacement can be done either at the factory or the dealer. 7.3.4 Frequency of Battery Replacement The expected life of the battery included in the memory backup unit is approximately one year within the temperature specifications of the MEMRECAM (such as charging several times per day), but varies...
  • Page 130 7.3.5 Mode Setting Switch for Memory Backup Unit 1. Backup Mode Setting Switch In this section, the backup mode setting is explained. It is set with the setting switch. ¦ LIMIT The setting switch on the side of the unit is set to LIMIT as shown in the diagram below. BATT.
  • Page 131 7.3.6 Startup Conditions for Memory Backup When the image data is stored in the memory, backup is activated if the MEMRECAM fx power switch is OFF, when the external power supply is disconnected or if the DC input voltage is less than 19.0V. 7.3.7 “BATT.

  • Page 132: Battery Charging

    7.3.8 Battery Charging When there is external power (20 to 32V) supplied to the MEMRECAM fx, the power switch and backup mode switch are charging normally. The charging status can be verified when the [BATT. STATUS] indicator is lit. ¦ Charging Time * It takes about 10 hours (at ambient temperatures of 25°C) to reach a full charged state.
  • Page 133 7.3.11 Memory Backup Unit Specifications 1 Product Type MEMRECAM fx RX-6 Only available from this company. 2 Battery Battery used Ni-Cd battery Form 6N-600AAK Battery life about 1 year This battery is a cycle charge model with heat resistance to resists overcharging so there is no sparking even if overcharged.
  • Page 134 M-HUB Units 7.4.1 Overview The M in M-HUB is the first M in MEMRECAM . When connecting multiple MEMRECAM fx series (MEMRECAM fx) as a bundle, this unit has the function to distribute the required signals. There are both master M -HUB units as well as slave M -HUB units that can be arranged to provide the flexibility to handle multiple MEMRECAM fx connections and locations.
  • Page 135 Terminology The following is an explanation of specific terms used frequently in this section. Term Meaning of Abbreviation Description Down Link ------------------------------------ Indicates the downlink and uplink of the multiple And Up Link MEMRECAM fx connection system using M-HUB. For example, the slave M-HUB is connected on a downlink from the master M-HUB and the MEMRECAM fx is connected on a d ownlink from the slave M-HUB.
  • Page 136 7.4.3 Fiber Channel (FC -AL) M-HUB Units 1. Overview Connects multiple MEMRECAM fx series MEMRECAM fx and the M-HUB unit can bundle control using the fiber channel network. Master M-HUB: MO12CF, MO4CF , MC4CF Slave M-HUB: SC4OF, SC2OF Cable extension unit: C1CF lineup 2.
  • Page 137 4. Connection Diagram When connecting MEMRECAM fx using fiber channel FC Remote Cable (Copper) O p t ional S l a v e M - H U B M E M R E C A M S C 4 O F F C R e m o t e C a b le (Optical) O p t ional Master M - H U B...
  • Page 138 5. Configuration 1) fixed M-HUB with port Model Part Part Name Comments Name Number ST-605 582535-- MO4CF System Configured so AC power system (4H0596-3) can be added to the MO4CF (4H2027) CR-985 4H2027-- MO4CF 4port master M-HUB CR-985 4H2030 SC4OF 4port slave M-HUB CR-985 4H2025...
  • Page 139 3) Extension Cable Unit Model Part Part Name Comments Name Number CR-985 4H2045 C1CF FC -AL remote copper cable extension unit 4) port addition options Model Part Part Name Comments Name Number CR-985 582571-1 FC PORT Option to add 1 port to the MO12CF UNIT (582562- addition 1~7) only at shipment (800075)A...
  • Page 140 6. Specifications ¦ Product Type MEMRECAM fx series ¦ The position and form of panel switch and LED (1) Master M-HUB(MO12CF,MO4CF) master M-HUB: power source monitor master M-HUB: power switch Master M-HUB port connection monitor Manual setting port ID switch (2) Slave M-HUB(SC20F,SC40F) Slave M-HUB port connection monitor LED Manual setting port ID switch...
  • Page 141 (3) C1CF C1CF port connection monitor LED (4) MC 4 C F MC4CF: power source monitor LED MC4CF: power switch FC-AL Link monitor LED MC4F port connection monitor LED (800075)A 7-23...
  • Page 142 ¦ The functions of switches and LED (1) Power Switch • The power ON/OFF switch readies the master M-HUB but not the slave M-HUB. Power for the slave M-HUB is driven by the master M-HUB ON/OFF. • After turning the master M-HUB power ON /OFF, it will take about 5 seconds to turn the slave M- HUB and camera power ON/OFF.
  • Page 143 (5) Port Connection Monitor LED (MC4CF) • Displays the remote cable connection status - green light lit: FC-AL LINK with camera (DRP) established - orange light lit: FC -AL LINK with camera (DRP) failure - not lit: FC -AL LINK with camera (DRP) failure (not yet connected) (6) FC-AL LINK Monitor LED •...
  • Page 144 7. Input/Output Connector (1) master M-HUB Panel name Connector model Function DC IN AFD50-8 -33PN-1A Input power: DC20~32V IRIG IN BNC123-BR-3 Modulated IRIG-B input 0.5 to 10Vp -p/10Ω TRIG IN PTO2H-8 -4P Trigger input: same as MEMRECAM fx Trigger distributes to each DOWNLINK port 1~xx PORT Ci ACT90MC35SN Ci series remote control: not yet operational...
  • Page 145 8. Power Unit Input Voltage Watts Remarks consumed MO12CF 20~32V About 41W External power source required MO4CF 20~32V About 18W External power source required SC40F 20~32V About 13W Supplied from MEMRECAM fx SC20F 20~32V About 12W Supplied from MEMRECAM fx C1CF 22~32V* About 2.5W...
  • Page 146 10. Ambient Conditions (1) Ambient Temperature Unit Operating Temperature Storage Temperature MO12C F 0 to 40°C, 30~80%RH -10 to 6 0°C, 20~80%RH (no condensation) (no condensation) MO4CF SC4OF SC2OF C1CF MC4CF (2) EMC Unit Electromagnetic conformance MO12CF EN61000-6-2 EN50081-2 FCC Part15 Class A MO4CF SC4OF SC2OF...
  • Page 147 11 . Exterior Diagram (1) MO12CF Rack Mounting Plate (Can be fit to front or rear of the unit) (800075)A 7-29...
  • Page 148 (2) MO4CF Rack Mounting Plate (Can be fit to front or rear of the unit) (800075)A 7-30...
  • Page 149 (3) SC4OF (800075)A 7-31...
  • Page 150 (4) SC2OF (800075)A 7-32...
  • Page 151 (5) C1CF (800075)A 7-33...
  • Page 152 (6) MC4CF (800075)A 7-34...
  • Page 153 12. Notes on Handling (1) There is an exposed optical fiber contact terminal on the master M-HUB Down -Link port and the slave M-HUB Up-Link port. Since dust will cause a bad connection, please cover the port with the dust cap when not in use. (2) There is an exposed optical fiber contact terminal on the FC-AL optical remote cable connector.
  • Page 154 13. Connector Signal Arrangement (1) DC IN (Master M-HUB) Receptable: AFD50 -8-33PN-1A (DEUTSCH) Plug: AFD56-8 -33SN-059 (DEUTSCH) DC IN 20 - 3 2DC V power input Frame GND DC RTN Power GND (2) IRIG IN (Master M-HUB) Receptable: BNC123-BR-3 Plug : BNC plug connector IRIG IN Modulated IRIG -B 0.5-10Vp-p/1 0kΩ...
  • Page 155 (4) PORT Ci (Master M-HUB except MC4CF) not operational Receptacle: ACT90MC35SN (DEUTSCH) Plug: ACT96MC35PN (DEUTSCH) ROSENS ------------------ RORXD - RS-422A standard RORX D+ RS-422A standard ROSCLK- RS-422A standard ROSCLK+ RS-422A standard ROIRIG - RS-422A standard ROIRIG+ RS-422A standard ROTRIG+ RS-422A standard ROTRIG- RS-422A standard ROSCLKout+...
  • Page 156 (5) DOWN-LINK 1 to xx (Master M-HUB except MC4CF) Receptacle: ACT90ME99SN (DEUTSCH) Plug: ACT96ME99PN (DEUTSCH) CPXT+ Composite Signal TX+: RS-422A standard CPXT- Composite Signal TX-: RS-422A standard CPXTCK+ Composite Signal TXCLK +: RS-422A standard CPXTCK- Composite Signal TXCLK -: RS-422A standard CPXR+ Composite Signal RX +: RS-422A standard CPXR-...
  • Page 157 (6) FC-AL (Master M-HUB except MC4CF) Receptacle: 636180 -1 (AMP) Plug : HSSDC Plug connector FC TX+ FC-AL TX+ signal ------------- Not in use FC TX- FC-AL TX- signal ------------- Not in use ------------- Not in use FC RX- FC-AL RX- signal ------------- Not in use FC RX+...
  • Page 158 (8) PORT 1 to x (Slave M-HUB,MC4CF) Receptacle: ACT90MC35PA (DEUTSCH) Plug: ACT96MC35SA (DEUTSCH) FC RX+ FC-AL RX+ signal FC RX- FC-AL RX- signal FC TX+ FC-AL TX+ signal FC TX- FC-AL TX- signal CPXR+ Composite signal RX+: RS-422A standard CPXR- Composite signal RX-: RS-422A standard CPXRCK+ Composite signal RXCLK+: RS-422A...
  • Page 159 (9) UPLINK (Slave M-HUB) Receptacle: ACT90ME99PN (DEUTSCH) Plug: ACT96ME99SN (DEUTSCH) CPXT+ Composite signal TX+: RS-422A standard CPXT- Composite signal TX-: RS-422A standard CPXTCK+ Composite signal TXCLK +: RS-422A standard CPXTCK - Composite signal TXCLK -: RS-422A standard CPXR+ Composite signal RX +: RS-422A standard CPXR- Composite signal RX -: RS-422A standard CPXRCK+...
  • Page 160 (10) CAM(C1CF) Receptacle: ACT90MC35PA (DEUTSCH) Plug: ACT96MC35SA (DEUTSCH) FC RX+ FC-AL RX+ signal FC RX- FC-AL RX- signal FC TX+ FC-AL TX+ signal FC TX- FC-AL TX- signal CPXR+ Composite signal RX+: RS-422A standard CPXR - Composite signal RX-: RS-422A standard CPXRCK+ Composite signal RXCLK +: RS-42 2A standard...
  • Page 161 (11) M-HUB (C1CF) Receptacle: ACT90MC35SA (DEUTSCH) Plug: ACT96MC35PA (DEUTSCH) FC RX+ FC-AL RX+ signal FC RX- FC-AL RX- signal FC TX+ FC-AL TX+ signal FC TX- FC-AL TX- signal CPXR+ Composite signal RX+: RS-422A standard CPXR - Composite signal RX-: RS-422A standard CPXRCK+ Composite signal RXCLK +: RS-422A standard...
  • Page 162 (12) COM (Master M-HUB except MC4CF) Receptacle: DE -9PF-N (JAE) Plug: DE-9SF-N (JAE ) ----------- Not in Use RS-232C standard RS-232C standard RS-232C standard (It connects with NO.6 pin inside.) Signal GND RS-232C standard (It connects with NO.4 pin inside.) RS-232C standard RS-232C standard -----------...
  • Page 163 14. Optional Products (1) Remote Cable (Copper) Model Product Product Name Remarks Name Number CR-985 582292-4 CABLE FC 7.5m 7.5m remote cable for MEMRECAM fx< ->slave M-HUB connection CR-985 582292-6 CABLE FC 15m 15m remote cable for MEMRECAM fx<->slave M- HUB connection •...
  • Page 164 (3) Remote Cable (Optical) Model Product Product Name Remarks Name Number CR-985 582294-1 Cable FF 7.5m 7.5m remote cable for slave M-HUB<->master M- HUB connection CR-985 582294-2 Cable FF 15m 15m remote cable for slave M-HUB<->master M- HUB connection CR-985 582294-3 Cable FF 25m 25m remote cable for slave M-HUB<->master M-...
  • Page 165 (4) Power Model Name Product Product Name Remarks Number 4HO596-1 4HO596-1 AC POWER For domestic use, includes 2P AC cable SYSTEM 4HO596-2 4HO596-2 AC POWER Includes loose end AC cable SYSTEM 4HO596-3 4HO596-3 AC POWER Includes 3P AC cable SYSTEM 4HO592 4HO592 Battery system...
  • Page 166 7.4.4 Ethernet(100Base-TX) M-HUB Units 1. Overview - Connects multiple MEMRECAM fx series MEMRECAM fx and the M -HUB unit can bundle control using the Ethernet - Master M-HUB: MC12CT, MC4CT Slave M-HUB: SC4CT, SC2CT lineup 2. General Functions and Features The master unit can connect a maximum of 12 slave units The slave unit can connect a maximum of 4 MEMRECAM fx The maximum length between the master and slave unit connection is 100m...
  • Page 167 4. Connection Diagrams When connecting multiple MEMRECAM fx using the Ethernet 100Base-TX. E t h e r n e t R e m o t e C a b l e O p t ional M E M R E C A M S l a v e M - H U B S C 2 C T Ethernet Rem o t e C a b l e...
  • Page 168 (2) variable M-HUB with port Model Part Part Name Comments Name Number ST-605 582580-1 MC12CT System Configured so AC power system (4H0596-3) can be added to the MC12CT UNIT 5Port (582582-1) ST-605 582580-2 MC12CT System Configured so AC power system (4H0596-3) can be added to the MC12CT UNIT 6Port (582582-2) ST-605 582580-3...
  • Page 169 6. Specifications ¦ Product Type MEMRECAM fx series ¦ Panel switch and LED Master M-HUBP power source monitor LED Master M-HUB: power switch Port connection monitor LED Manual setting port ID switch (1) Power Switch • The power ON/OFF switch readies the master M -HUB but not the slave M-HUB. Power for the slave M-HUB is driven by the master M-HUB ON/OFF.
  • Page 170 (2) Power Monitor LED • master M-HUB - green light lit: ON - not lit: OFF • slave M-HUB - green light lit: ON - not lit: OFF (MEMRECAM fx not supplying power) - white: OFF (MEMRECAM fx supplying power but slave M-HUB is in OFF state) (3) Manual Setting Port ID Switch •...
  • Page 171 7. Input/Output Connector (1) Master M-HUB Panel name Connector model Function DC IN AFD50-8 -33PN-1A Input power: 20 to 32DCV IRIG IN BNC123-BR-3 Modulated IRIG-B input 0.5 to 10Vp -p/10kΩ TRIG IN PT02H -8 -4P Trigger input: same as MEMRECAM fx Trigger distributes to each DOWNLINK port 1 to xx PORT Ci...
  • Page 172 8. Power Unit Input Watts Remarks Voltage consumed MC12CT 20 to 32V About 18W External power source required MC4CT 20 to 32V About 5W External power source required SC4CT 20 to 32V About 7W Supplied from MEMRECAM fx SC2CT 20 to 32V About 5W Supplied from MEMRECAM fx 9.
  • Page 173 10. Ambient Conditions (1) Ambient Temperature Unit Operating Storage Temperature Temperature MC12CT 0 to 4 0°C, -10 to 6 0°C, 30 to 80%RH 20 to 80%RH (no condensation) (no condensation) MC4CT SC4CT SC2CT (2) EMC Unit Electromagnetic conformance MC12CT EN61000-6-2 EN50081-2 FCC Part15 Class A MC4CT...
  • Page 174 11. Exterior Diagrams Rack Mounting Plate (1) MC12CT (Can be fit to front or rear of the unit) (800075)A 7-56...
  • Page 175 (2) MC4CT Rack Mounting Plate (Can be fit to front or rear of the unit ) (800075)A 7-57...
  • Page 176 (3) SC4CT (800075)A 7-58...
  • Page 177 (4) SC2CT (800075)A 7-59...
  • Page 178 12. Notes on Handling (1) Please remove the remote cable connecting the master M-HUB and the slave M-HUB as quickly as possible. If not fully inserted into the connector, the power to the slave M-HUB and MEMRECAM fx may be turned OFF. (2) The remote cable between the useable slave M-HUB and MEMRECAM fx has a maximum length of 25m.
  • Page 179 13. Connector Signal Arrangement (1) DC IN (Master M-HUB) Receptacle: AFD50-8-33PN-1A (DEUTSCH) Plug: AFD56-8-33SN-059 (DEUTSCH) DC IN 20 - 3 2DC V power input Frame GND DC RTN Power GND (2) IRIG IN (Master M-HUB) Receptacle: BNC123-BR-3 Plug : BNC plug connector IRIG IN Modulated IRIG-B 0.5-10Vp -p /10kΩ...
  • Page 180 (4) PORT Ci (Master M-HUB) not operational Receptacle: ACT90MC35SN (DEUTSCH) Plug: ACT96MC35PN (DEUTSCH) ROSENS ------------------ RORXD - RS-422A standard RORXD+ RS-422A standard ROSCLK- RS-422A standard ROSCLK+ RS-422A standard ROIRIG- RS-422A standard ROIRIG+ RS-422A standard ROTRIG+ RS-422A standard ROTRIG- RS-422A standard ROSCLKout RS-422A standard ROSCLKout...
  • Page 181 (5) PORT 1 to xx (Master M-HUB) Receptacle: ACT90MC35PA (DEUTSCH) Plug: ACT96MC35SA (DEUTSCH) FC RX+ FC-AL RX+ signal FC RX- FC-AL RX- signal FC TX+ FC-AL TX+ signal FC TX- FC-AL TX- signal CPXR+ Composite signal RX+: RS-422A standard CPXR - Composite signal RX-: RS-422A standard CPXRCK+ Composite signal RXCLK +: RS-422A...
  • Page 182 (6) 100B-Tx(Master M-HUB) Receptacle: 558341-1 (AMP) Plug : RJ-45 plug connector 100T TX+ 100Base-TX TX+ signal 100T TX- 100Base-TX TX- signal 100T RX+ 100Base-TX RX+ signal ------------ Not in Use ------------ Not in Use 100T RX- 100Base-TX RX- signal ------------ Not in Use ------------ Not in Use...
  • Page 183 (8) UP LINK (Slave M-HUB) Receptacle: ACT90MC35SA (DEUTSCH) Plug: ACT96MC35PA (DEUTSCH) FC RX+ Not in Use: FC -AL RX+ signal FC RX- Not in Use : FC -AL RX- signal FC TX+ Not in Use : FC -AL TX+ signal FC TX- Not in Use : FC -AL TX- signal CPXR+...
  • Page 184 (12) COM (Master M-HUB ) Receptacle: DE-9PF-N (JAE) Plug: DE-9SF-N (JAE ) ----------- Not in Use RS-232C standard RS-232C standard RS-232C standard (It connects with NO.6 pin inside.) Signal GND RS-232C standard (It connects with NO.4 pin inside.) RS-232C standard RS-232C standard ----------- Not in Use...
  • Page 185 14. O ptional Products (1) Remote Cable Model Product Product Name Remarks Name Number CR-985 582290-3 CABLE EC 7.5m 7.5m remote cable for MEMRECAM fx<->slave M -HUB connection CR-985 582290-4 CABLE EC 15m 15m remote cable for MEMRECAM fx<->slave M -HUB connection CR-985 582290-5...
  • Page 186 (2) Power Model Name Product Product Name Remarks Number 4H0596-1 4H0596-1 AC POWER For domestic use, includes 2P AC cable SYSTEM 4H0596-2 4H0596-2 AC POWER Includes loose end AC cable SYSTEM 4H0596-3 4H0596-3 AC POWER Includes 3P AC cable SYSTEM 4H0592 4H0592-- Battery system...
  • Page 187 View Box The View Box converts digital video signals output from the MEMRECAM fx D-VGA OUT port into analog VGA and NTSC (PAL) signals. It also functions as a high precision color image monitor during photography and playback. 7.5.1 Overview and Features ¦...
  • Page 188 7.5.3 Exterior Diagrams 1 2 6 . 8 F 1/4-20UNC Depth 6mm (800075)A 7-70...
  • Page 189 7.5.4 Installation and Connection of MEMRECAM fx View Box As shown in Photo -3 , install the View Box and the BRACKET. Adjust the View Box and bracket (After adjusting, tighten the screws.) Angle adjustment screw (After adjusting, tighten the screw.) Fix by turning the screw Photo-3 Install the View Box to the MEMRECAM fx BRACKET shoe...
  • Page 190 Connect to the analog VGA multiscan monitor Connect to the VBS,S-VHS terminal television monitor. Caution When there is no View Box VIDEO output, the MEMRECAM fx output settings may be OFF. Control using the MEMRECAM fx setup menu [TOP MENU] or the PC software [Smart Capture].
  • Page 191 7.5.5 View Box Specifications 1 Product Type MEMRECAM fx series 2 In put VGA (640 × 480) 1) Image format vertical synchronizing signal frequency: 59.94MHz horizontal synchronizing signal frequency: 31.468MHz 2) Signal cable pigtail construction: ap prox. 30cm in length (can be extended to 9m)* * 3 optional extension cables (H10963-3 3m cable) can be connected.
  • Page 192 5 Control Items 1) Video output Simultaneous ON/OFF possible for VBS and S video output by control computer commands (cannot turn VGA output control ON/OFF) 2) Chroma signal Chroma signal can be turned ON/OFF with the SW on the case 6 Power 1) Voltage/wattage less than 20 to 32DCV / 4W (supplied from MEMRECAM fx)

  • Page 193: Camera Cable

    Camera Cable Model Product Product Name Remarks Name Number 583075-3 583075-3 CAMERA C ABLE 583075-4 583075-4 CAMERA C ABLE Standard 583075-6 583075-6 CAMERA C ABLE (800075)A 7-75...
