USB3.1 connector
Pin Configuration
Pin No. Name
A1 GND_1
A2 SSTX_P1
A3 SSTX_N1
A4 VBUS_1
A5 CC1
A6 D_P1
A7 D_N1
A8 SBU1
A9 VBUS_2
A10 SSRX_N2
A11 SSRX_P2
A12 GND_2
B1 GND_3
B2 SSTX_P2
B3 SSTX_N2
B4 VBUS_3
B5 CC2
B6 D_P2
B7 D_N2
B8 SBU2
B9 VBUS_4
B10 SSRX_N1
B11 SSRX_P1
B12 GND_4

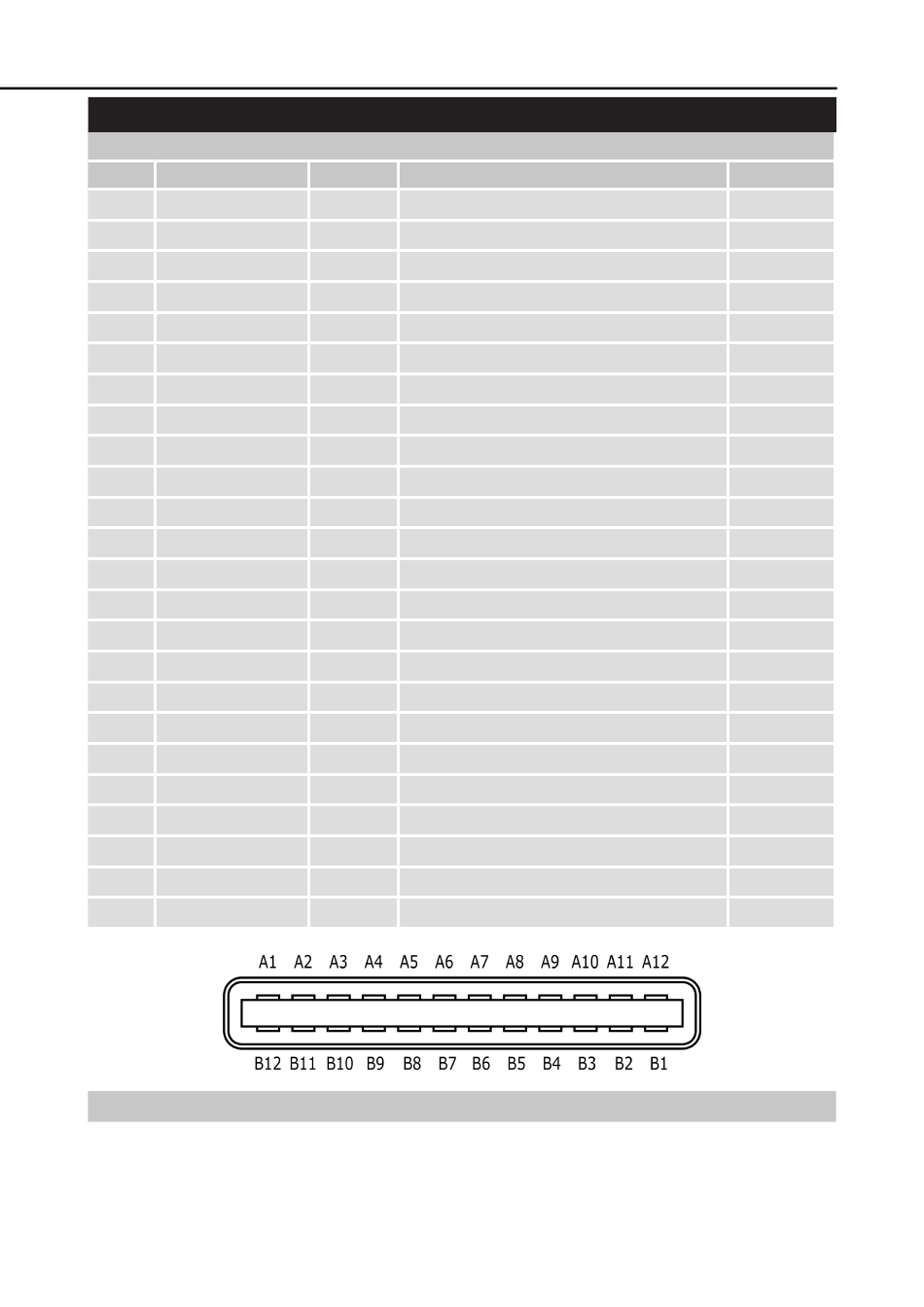

Pin Configuration Figure (from the side of the engaged connector)
(00519)
Direction Function • Input/Output Level
- USB power output return
OUT USB3.1 SS output signal 1 positive
OUT USB3.1 SS output signal 1 negative
OUT USB power output, 5 V, 3 A (for all four)
I/O Config process signal 1
I/O USB2.0 HS signal 1 positive
I/O USB2.0 HS signal 1 negative
I/O Sideband Use 1
OUT USB power output, 5 V, 3 A (for all four)
IN USB3.1 SS input signal 2 negative
IN USB3.1 SS input signal 2 positive
- USB power output return
- USB power output return
OUT USB3.1 SS output signal 2 positive
OUT USB3.1 SS output signal 2 negative
OUT USB power output, 5 V, 3 A (for all four)
I/O Config process signal 2
I/O USB2.0 HS signal 2 positive
I/O USB2.0 HS signal 2 negative
I/O Sideband Use 2
OUT USB power output, 5 V, 3 A (for all four)
IN USB3.1 SS input signal 1 negative
IN USB3.1 SS input signal 1 positive
- USB power output return
