NAC Image Technology MEMRECAM GO-4K User Manual page 142

Connector
Pin No. Name
1 MDI 0+
2 MDI 0-
3 MDI 1+
4 MDI 1-
5 MDI 2+
6 MDI 2-
7 MDI 3+
8 MDI 3-
9 EST2 IN
10 EST2 IN RTN
11 IRIG-B IN
12 IRIG-B IN RTN
13 TRIG2 IN A
14 TRIG2 IN C
15 EPO
16 EPO RTN
17 PWRCNT IN
18 PWRCNT IN RTN
shell FRAME GND

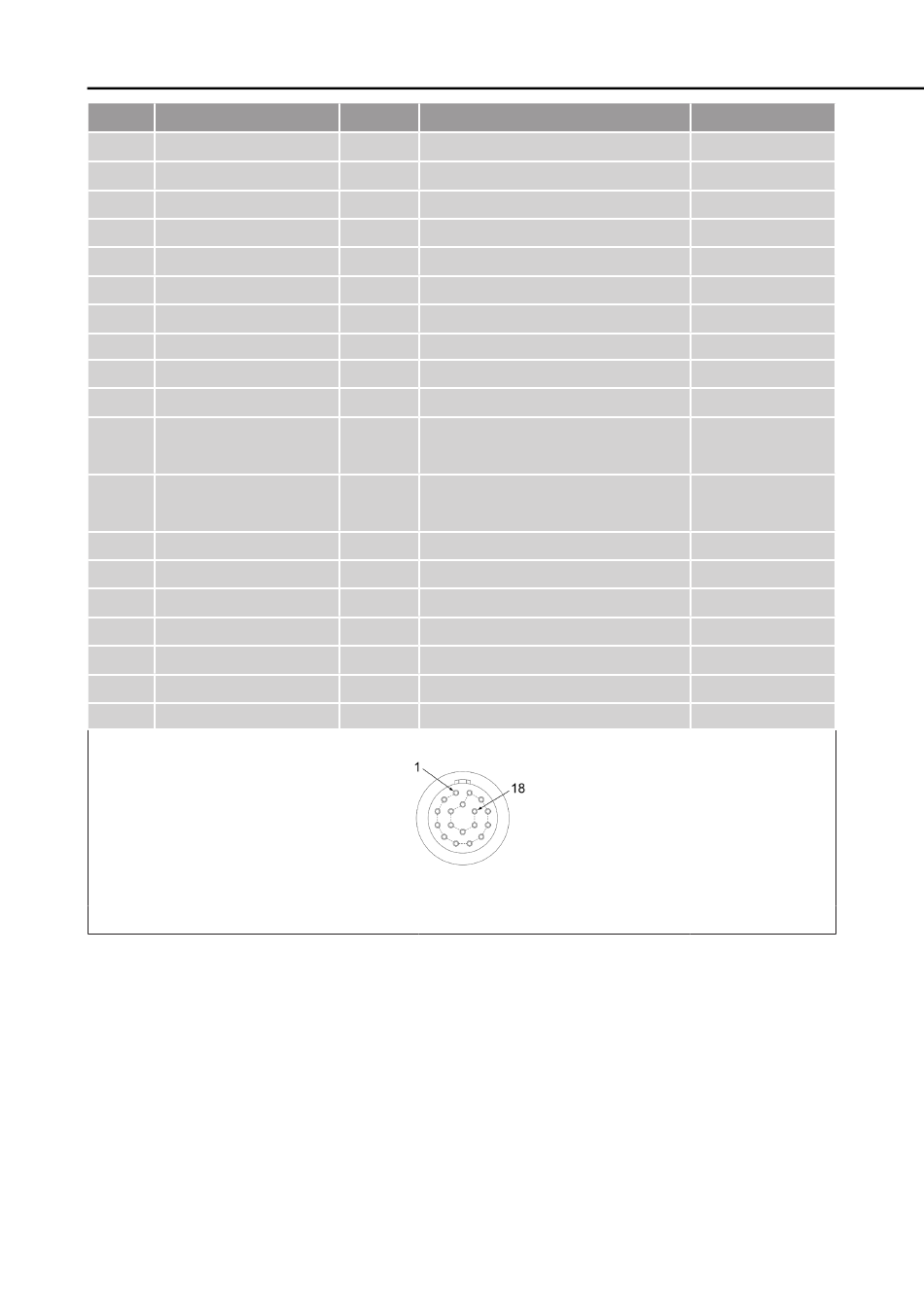

Pin layout diagram (From connector mating side)
Direction Function • Input/Output Level
I/O 10/100/1000BASE-T Interface
I/O 10/100/1000BASE-T Interface
I/O 10/100/1000BASE-T Interface
I/O 10/100/1000BASE-T Interface
I/O 10/100/1000BASE-T Interface
I/O 10/100/1000BASE-T Interface
I/O 10/100/1000BASE-T Interface
I/O 10/100/1000BASE-T Interface
IN TTL or contact
IN TTL or contact
IN High impedance
IN High impedance
IN Current loop, anode
IN Current loop, cathode
OUT CMOS
OUT CMOS
IN CMOS or contact
IN CMOS or contact
- Frame ground
142
Remarks
Isolation
Ground isolation
Isolation trans-
former
Isolation trans-
former
Isolation
Isolation
Isolation
Ground isolation
Isolation
Ground isolation
(00519)
