Meas
Simple measurement can be performed on WebPanel.
• Actual size setting
• 2 points distance
• 3 point angle
• 2 line (4 points) angle
•The setting result is initialized by reloading the screen (web page).
•There is no function to output the result of this function. Use the screen save func-
tion of tablet etc.
•Each numerical value display is to the first decimal place.

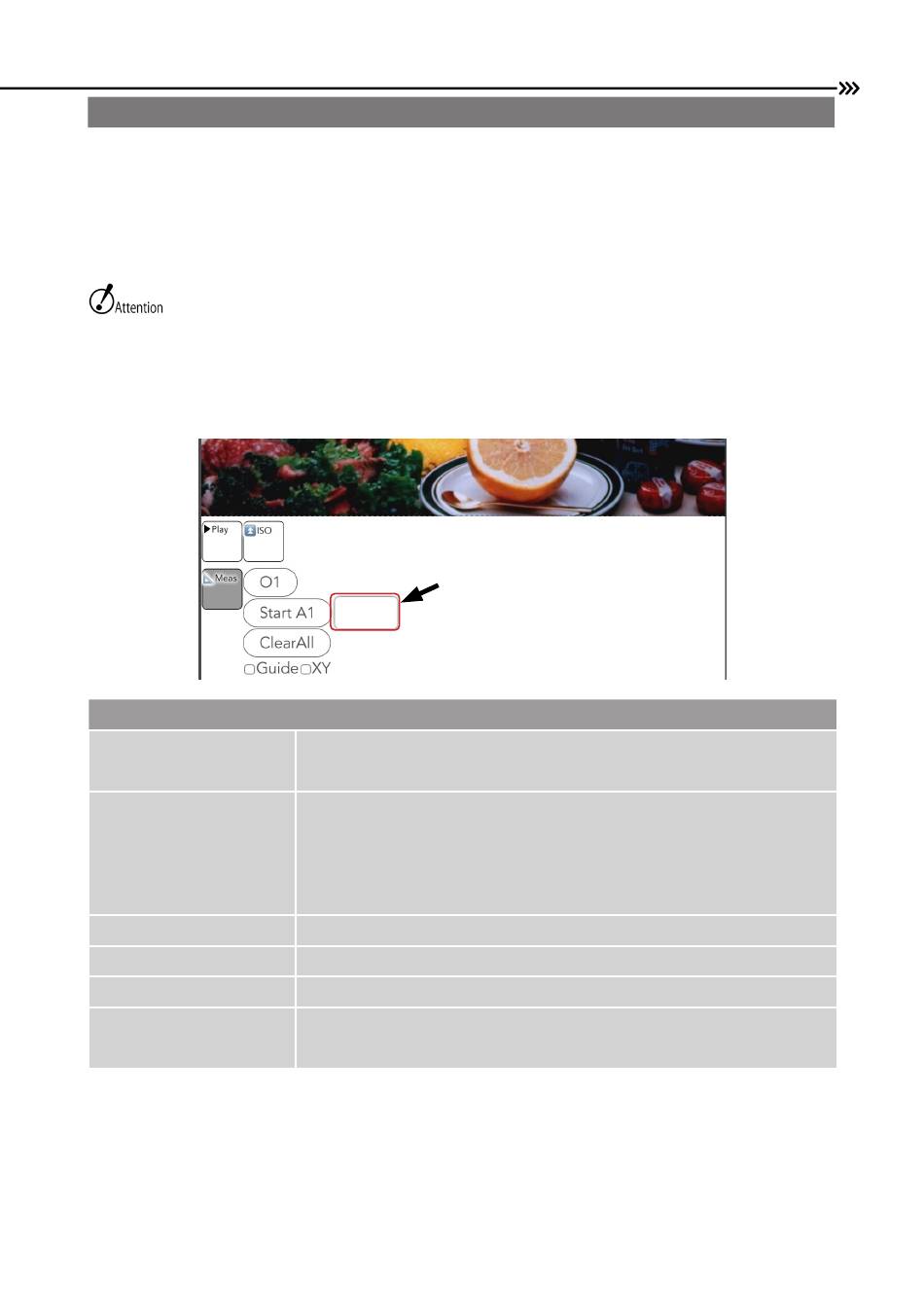

Image analysis settings: Analyze and superimpose on the displayed image.
O1
Start A1
Data display / input area
Clear All
Guide
XY
(00519)
Data display / input area
Reference point: Display the reference point and crosshairs in the
image display area. Multiple settings are possible.
Measurement point: Sets the measurement point. Start from A1.
It becomes the setting of the continuous line from A1.
After setting A point, you can set another independent line seg-
ment with "Start B1".
The values etc. displayed in this area can be changed.
Erases all set reference points and measurement points.
Displays a guide perpendicular to the line between the two points.
Displays the display numerical value separately for X and Y coordi-
nates.
