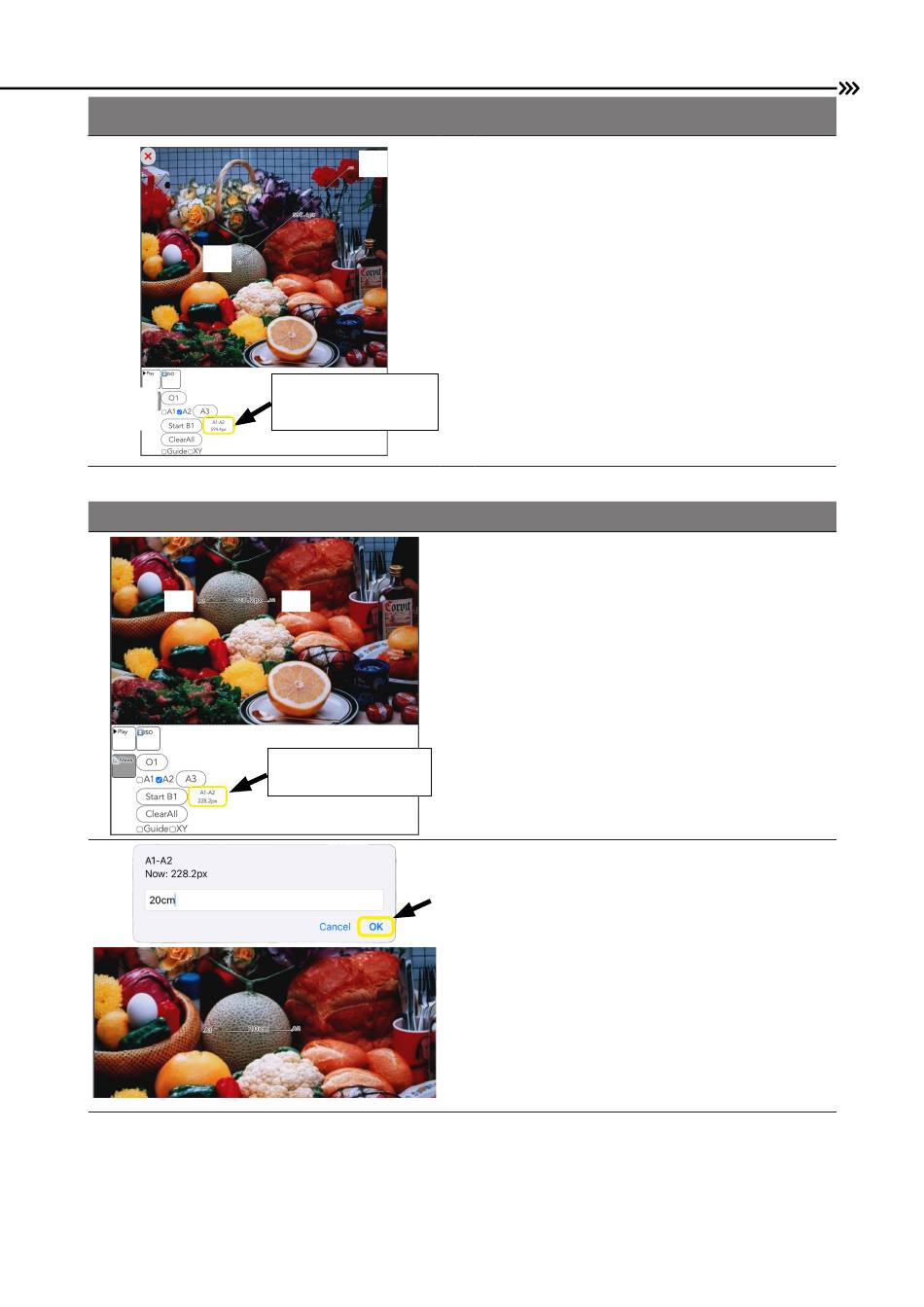

Draw a line at 2 points
A1
Check
box
Enter numbers and units
A1
(00519)
1
A2
Data display / input
area
1
A2
Data display / input
area
2
Tap A1 to determine the position, and then
set A2 to draw a line connecting the two
points.
•After the position is determined, you can
move the point by selecting the check box.
•The px value displayed in the Data Display/
Input Area indicates the length of the line in
pixels. This value and the unit of length can
be changed by tapping in the Data Display/
Input Area.
Set the reference when the length of the ob-
ject to be measured is determined.
•An example draws the straight line of A1-A2
according to the diameter of the melon of a
picture.
•Tap the data display / input area.
Enter numbers and units
• In the example, enter the number as the
diameter of the melon is 20 cm and tap
"OK".
• The values and units entered in the image
are reflected. This also allows you to mea-
sure the size of objects in other images (but
only for objects of the same depth).
