144 C 7: C
HAPTER ONFIGURING
Defining VLAN
Membership
VLAN
S
The VLAN Membership Summary Page contains a table that maps VLAN
parameters to ports. Ports are assigned VLAN membership by toggling
through the Port Control settings.
To define VLAN Membership:
1 Click Policy > VLAN > Membership > Summary. The VLAN
Membership Summary Page opens:

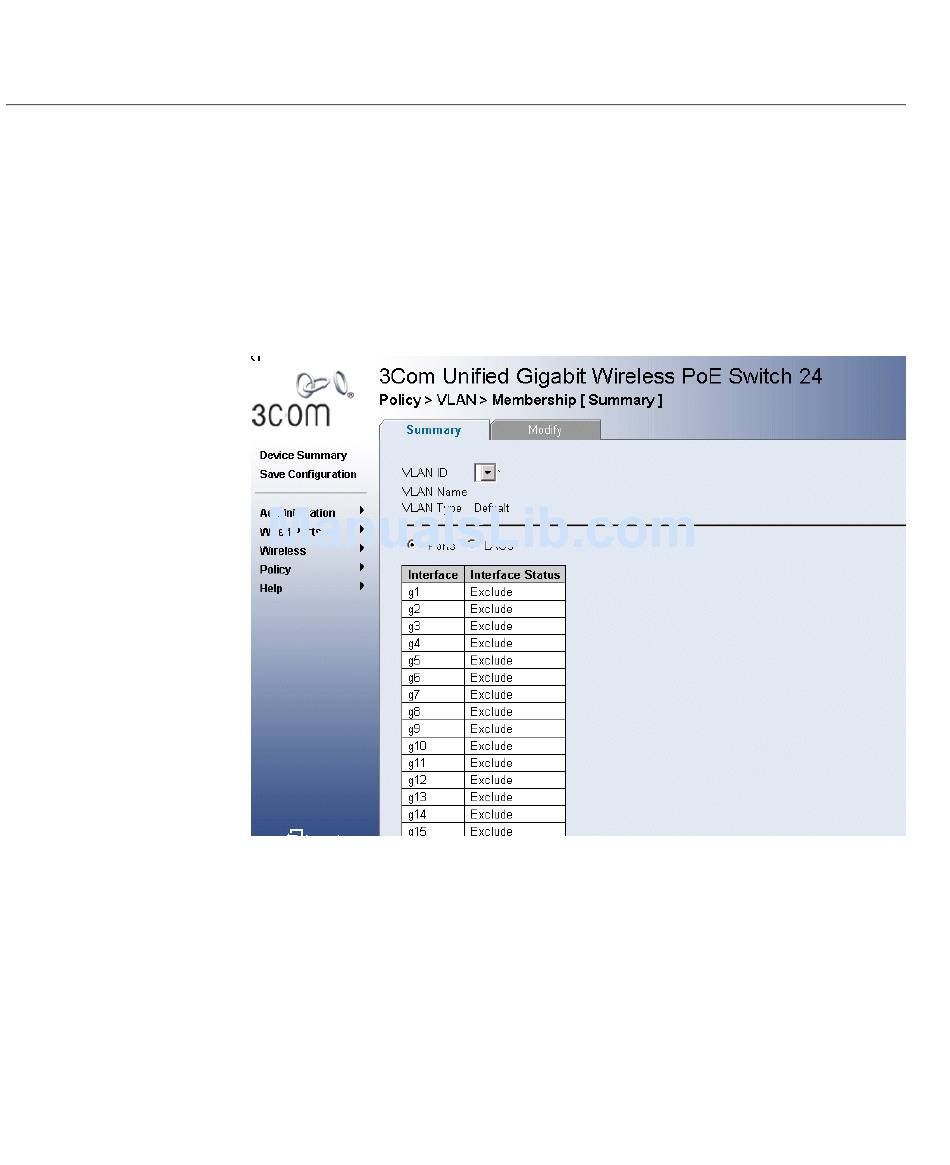

Figure 70 VLAN Membership Summary Page
The VLAN Membership Summary Page contains the following fields:
VLAN ID — Displays the user-defined VLAN ID.
■
VLAN Name — Displays the name of the VLAN
■
VLAN Type— Indicates the VLAN type. The possible field values are:
■
Dynamic — Indicates the VLAN was dynamically created through
■
GARP.
Static — Indicates the VLAN is user-defined.
■
Default — Indicates the VLAN is the default VLAN.
■
Port — Indicates the port membership.
■
