Pin Signal
B62 NC
B63 NC
B64 GND
B65 GND
B66 NC
B67 NC
B68 GND
B69 GND
B70 NC
B71 NC
B72 GND
B73 GND
B74 NC
B75 NC
B76 GND
B77 GND
B78 NC
B79 NC
B80 GND
B81 NC
B82 NC
6.6.

GbE

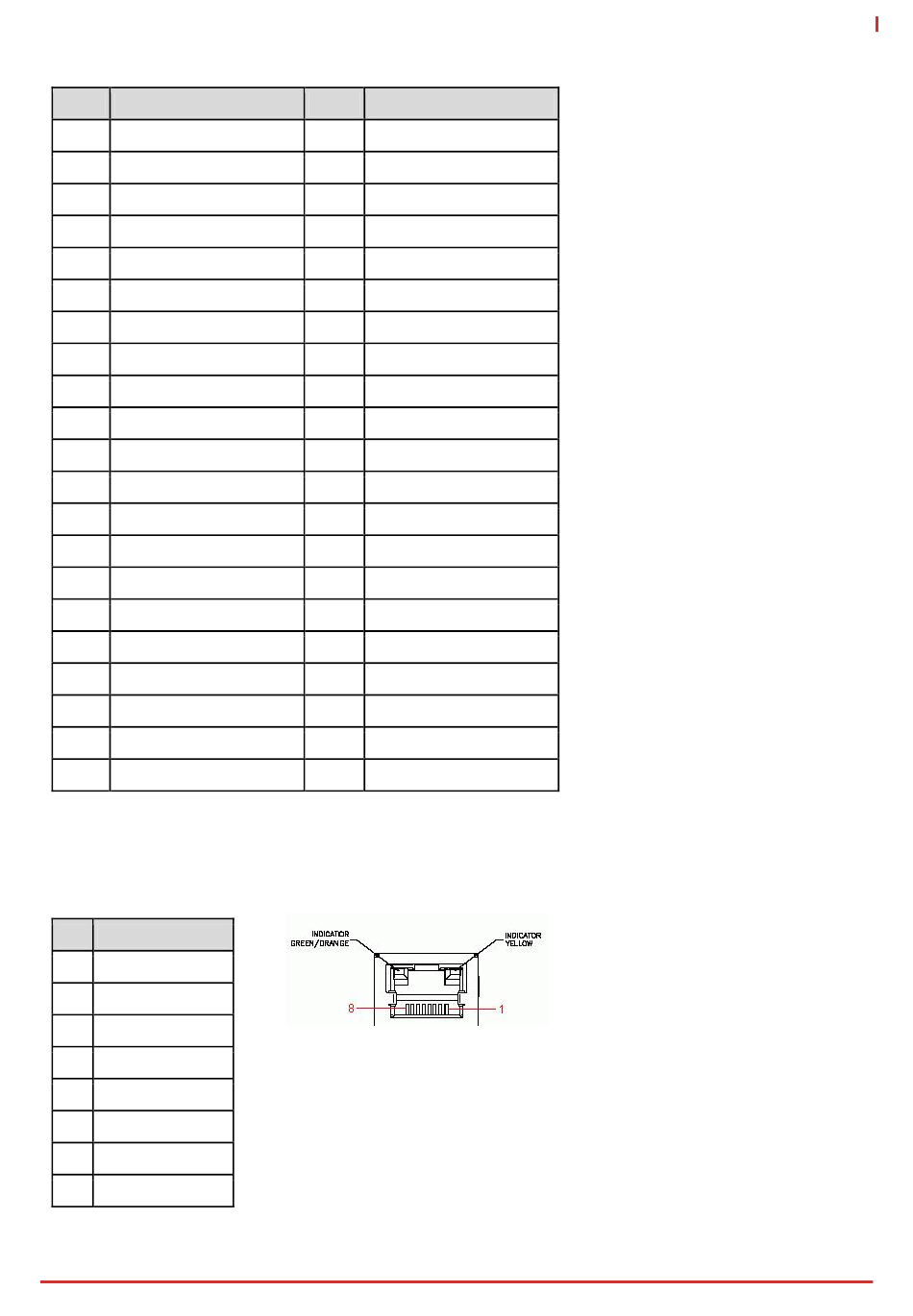

CN18: RJ-45 GbE
Pin Signal
1 BI_DA+
2 BI_DA-
3 BI_DB+
4 BI_DC+
5 BI_DC-
6 BI_DB-
7 BI_DD+
8 BI_DD-
Connectors, Pinouts and Jumpers
Pin Signal
A62 GND
A63 GND
A64 NC
A65 NC
A66 GND
A67 GND
A68 NC
A69 NC
A70 GND
A71 GND
A72 NC
A73 NC
A74 GND
A75 GND
A76 NC
A77 NC
A78 GND
A79 GND
A80 NC
A81 NC
A82 GND
Express-BASE7
17
