6. Connectors, Pinouts and Jumpers

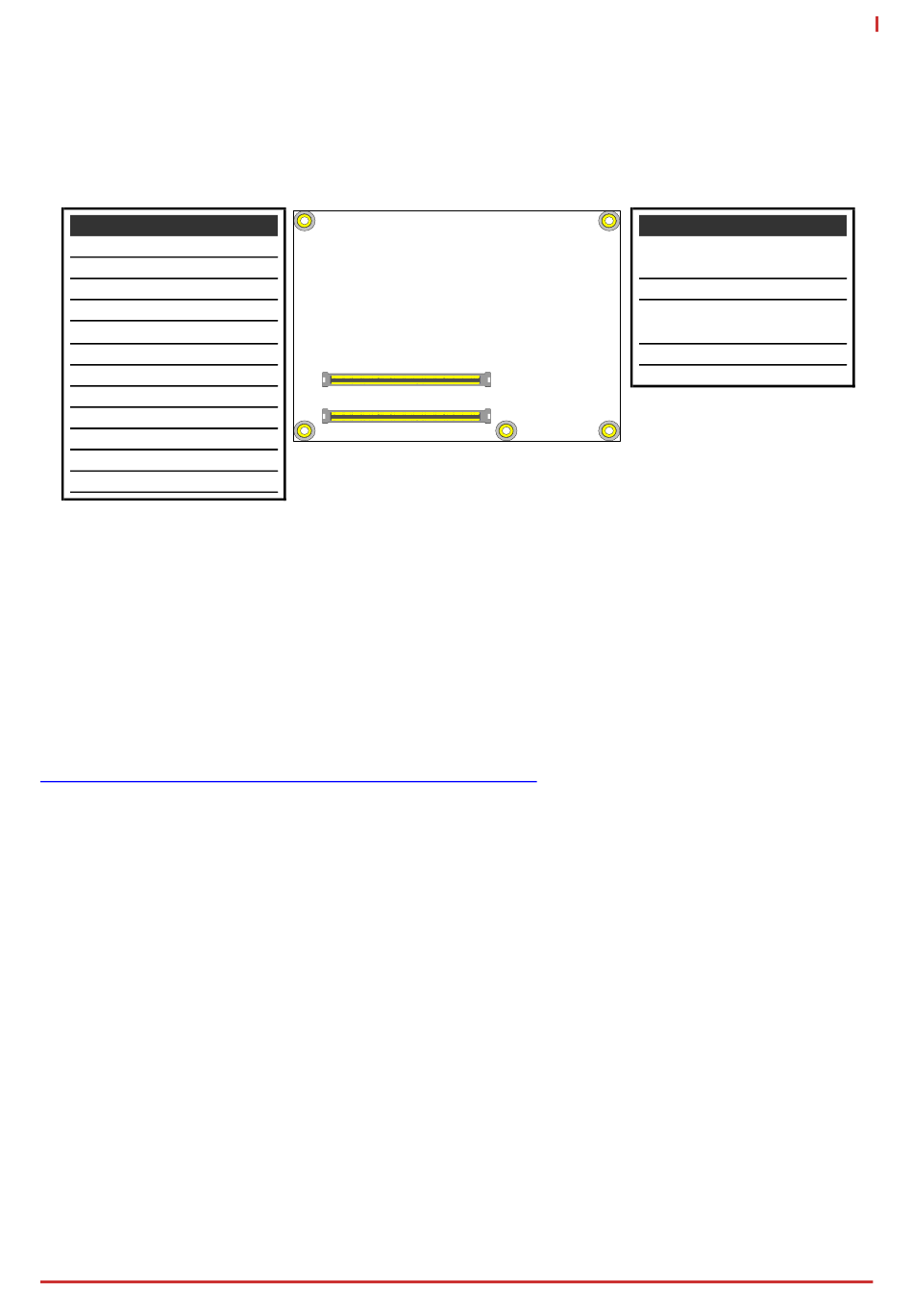

6.1. Carrier Board Signals – Type 7
AB Connector
1 Gigibit Ethernet Port
LPC / eSPI Interface
2 Serial ATA Channels
PCI Express Lanes 0-5
PCI Express Lanes 8-15
4 USB Ports
NCSI
8 GPIO, COM 1/2
2
SMBus and I C Bus
+12V Primary Power Input
+5V Standby and 3V RTC
Smart Fan
6.2.

Connector and Pinout Compatibility

Connector positions and pinouts comply with pinout and signal descriptions in the "PICMG® COM.0 - COM
Express Module Base specification, Revision 3.0". This document includes: description of pinouts, signal
descriptions and mechanical characteristics of the COM Express specification. The Express-BASE7 is compatible
with COM Express modules in Basic and Compact size form factor, Type 7 pinout, COM.0 Rev. 3.0.
6.3.

Carrier Board Design

The Express-BASE7 design and schematics are verified for use as a reference. Express-BASE7 Schematics and
Mechanical files can be downloaded from the ADLINK Express-BASE7 product webpage.
http://www.adlinktech.com/PD/web/PD_detail.php?cKind=&pid=1659
Connectors, Pinouts and Jumpers
CD Connector
USB 3.0 Support,
extended signaling on four USB 2.0 ports
PCI Express Lanes 6-7
4 10GBASE-KR Interfaces
& Sideband Siganls
PCI Express lanes 16-31
C D
+12V Primary Power Input
A B
Express-BASE7
11
